Audio And Visual System (W/O Navigation System without Multi-display)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): TERMINALS OF ECU

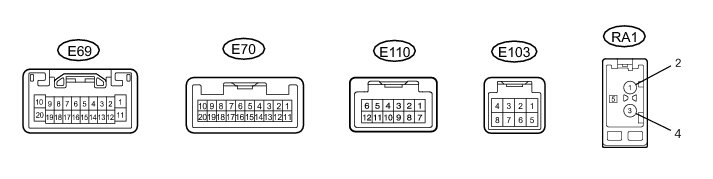

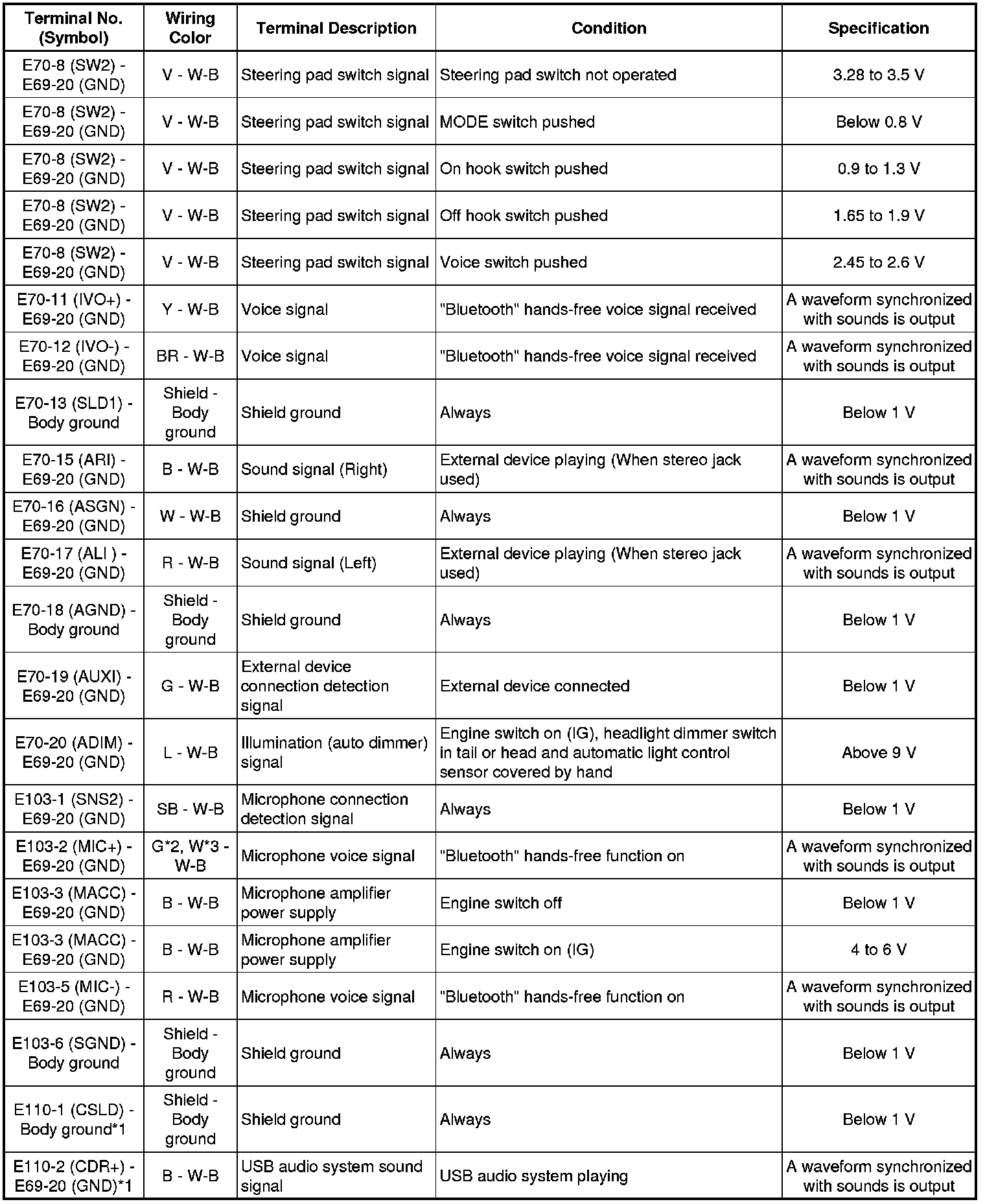

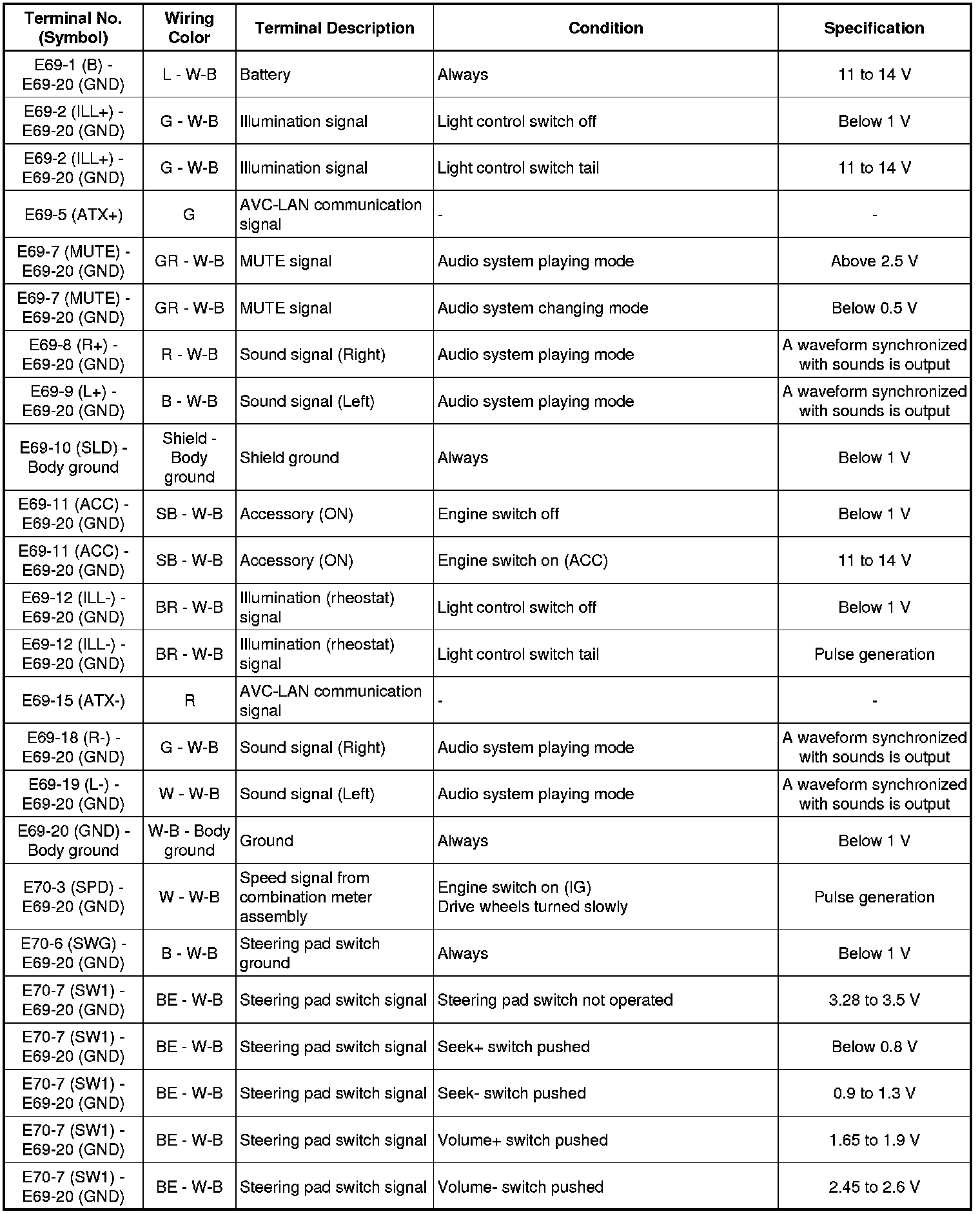

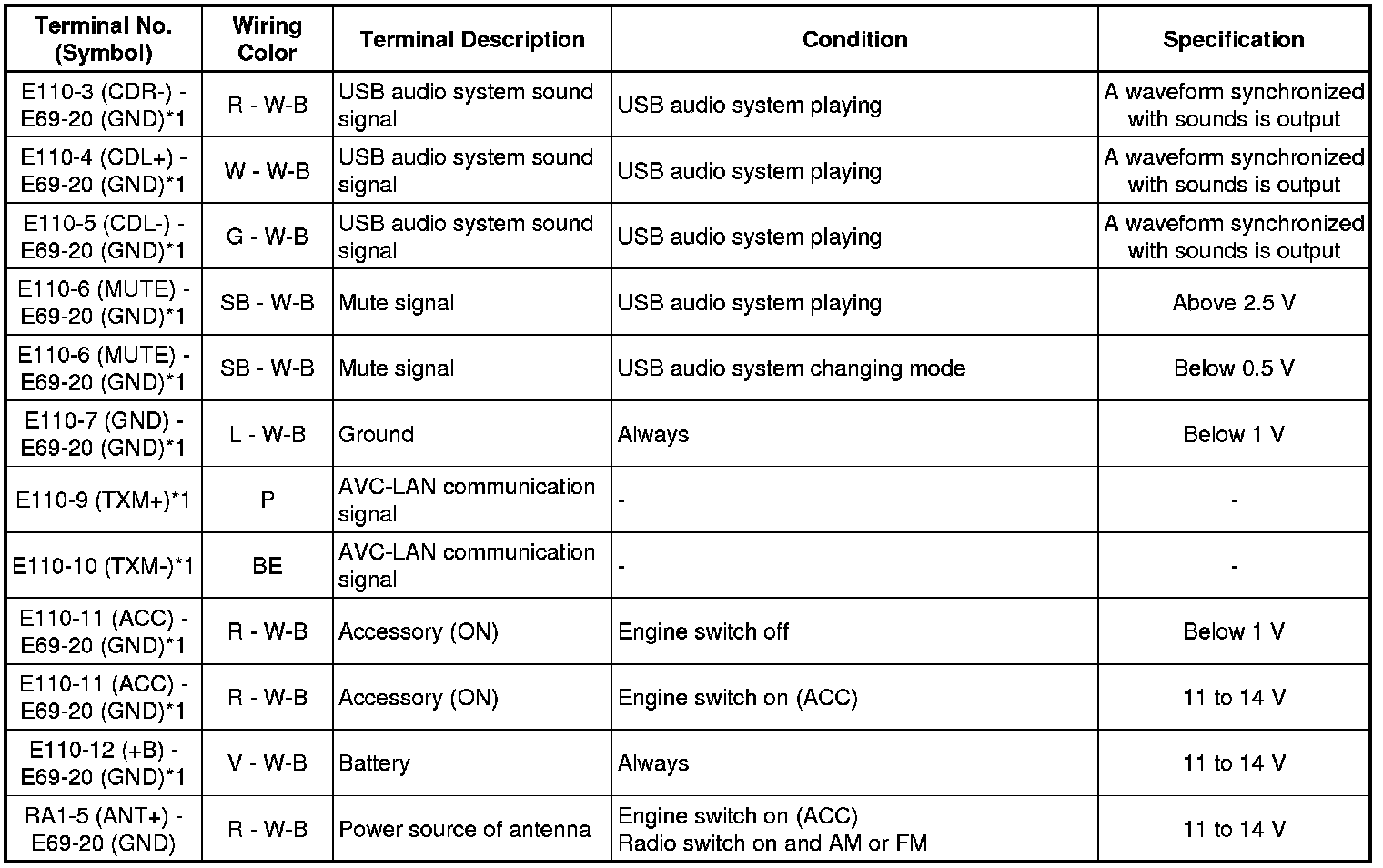

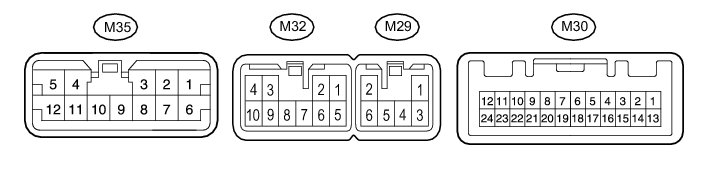

1. RADIO RECEIVER ASSEMBLY

















* *1: w/ USB Audio System

* *2: w/ Manual (SOS) Switch

* *3: w/o Manual (SOS) Switch

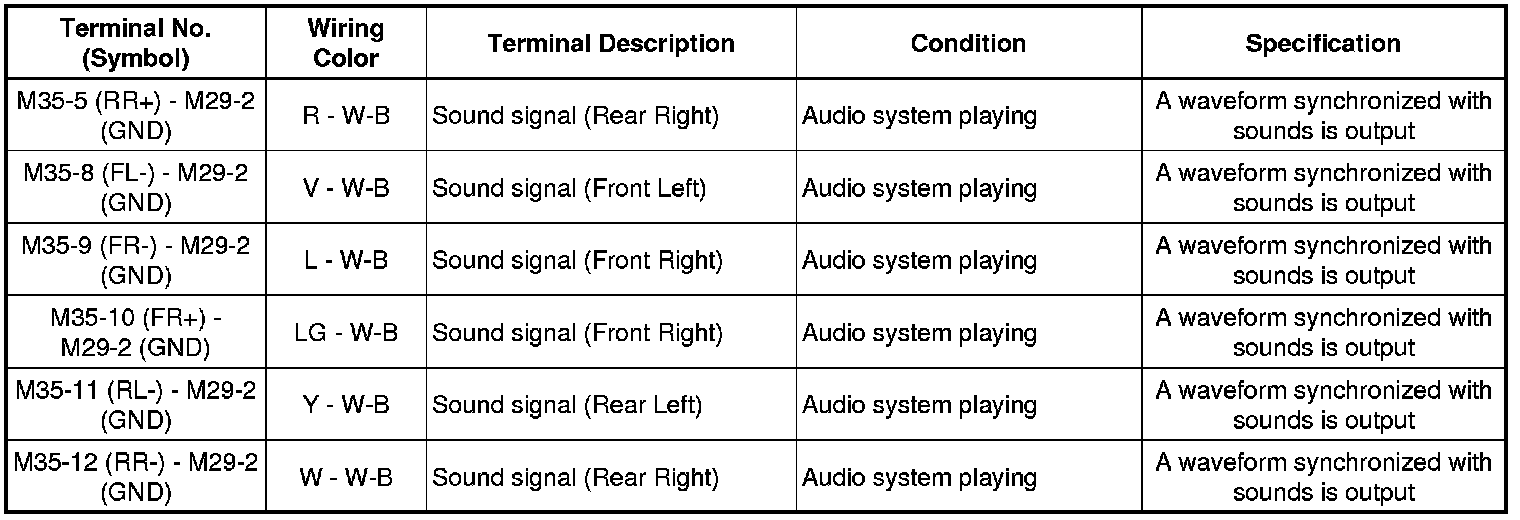

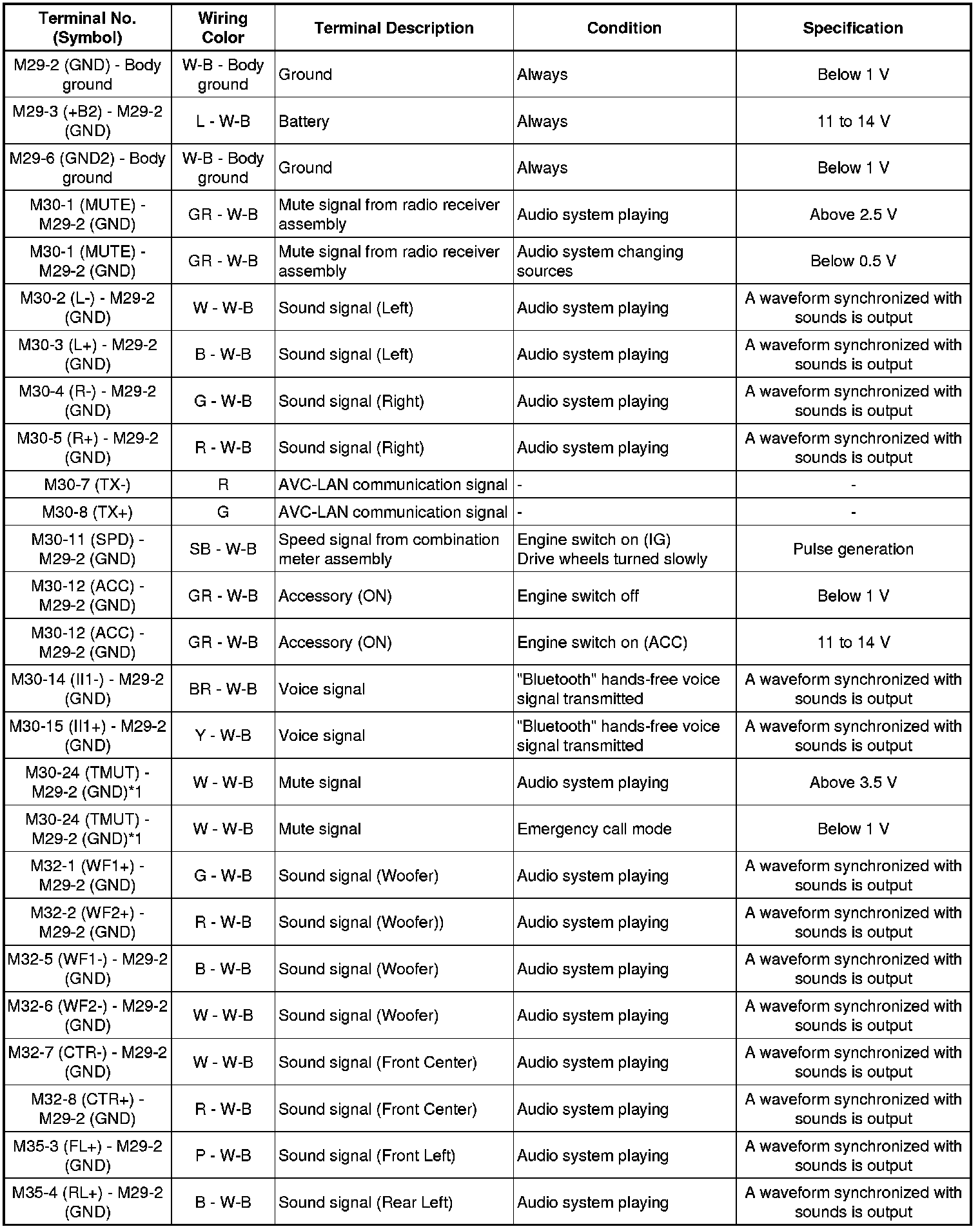

2. STEREO COMPONENT AMPLIFIER ASSEMBLY













* *1: w/ Manual (SOS) Switch

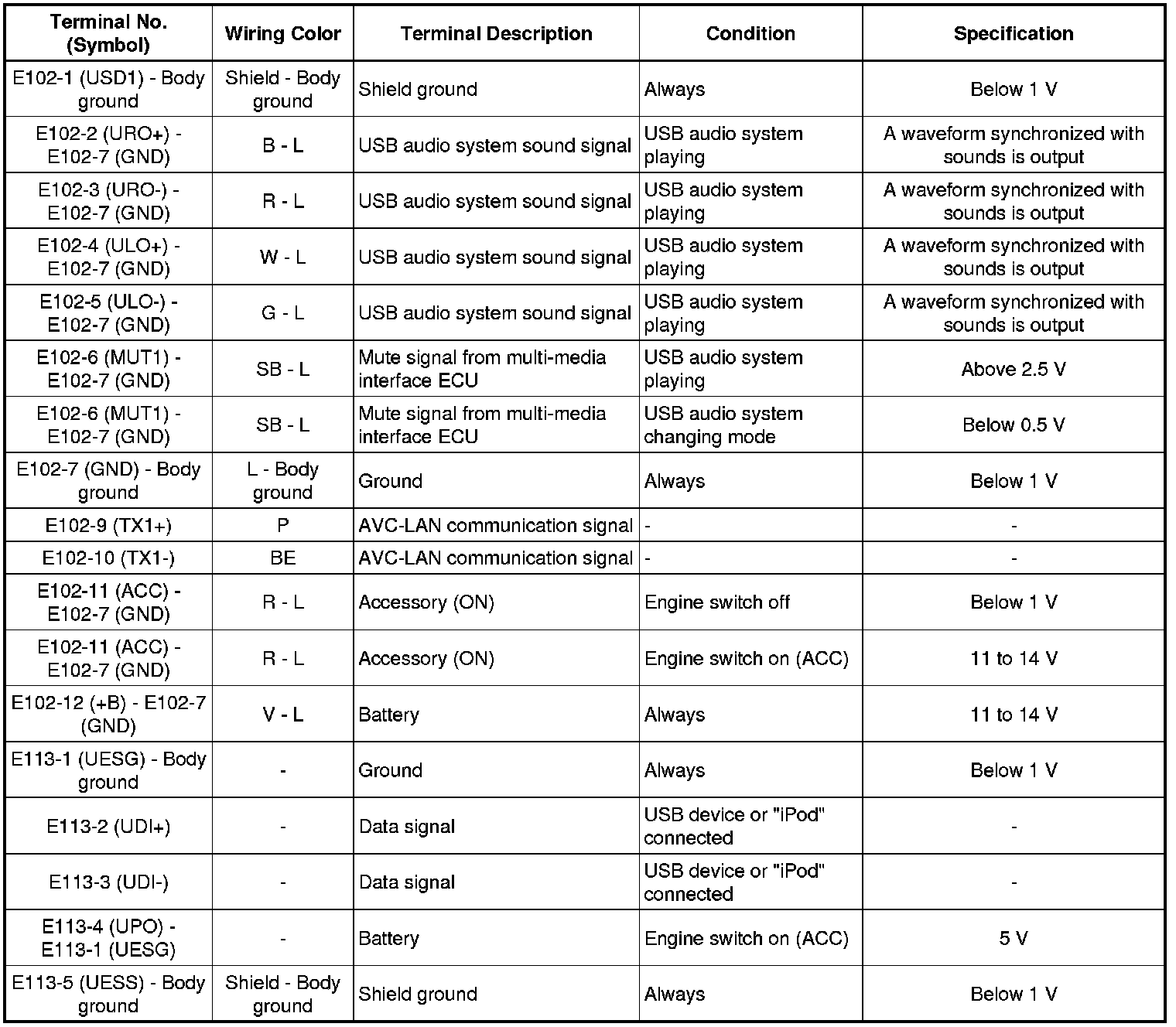

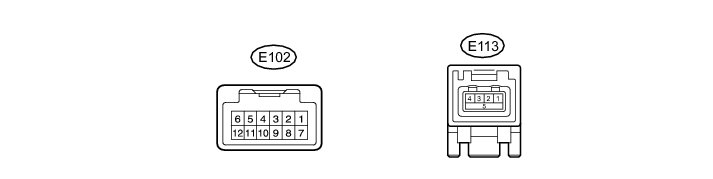

3. MULTI-MEDIA INTERFACE ECU (w/ USB Audio System)
