Problem Symptoms Table





PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: PROBLEM SYMPTOMS TABLE

HINT
* Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
* Inspect the fuses and relays related to this system before inspecting the suspected areas below.

NOTICE:
The following inspection procedure of the rear view monitor system is described on the assumption that the navigation system is normal. If navigation system or audio and visual system (without navigation system with multi-display) has any malfunction, first proceed with troubleshooting of the navigation system or audio and visual system (without navigation system with multi-display).

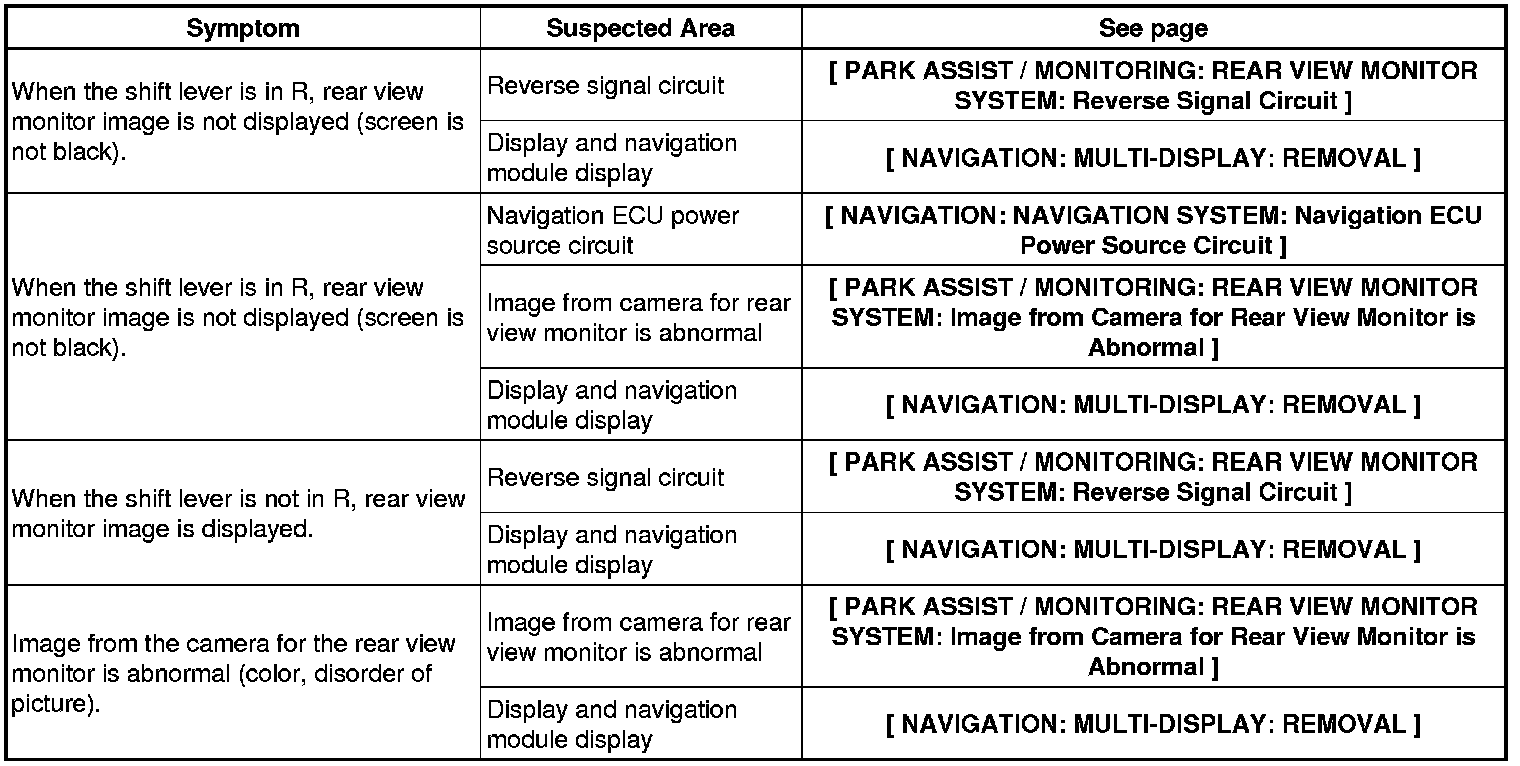

REAR VIEW MONITOR SYSTEM (for Navigation system)

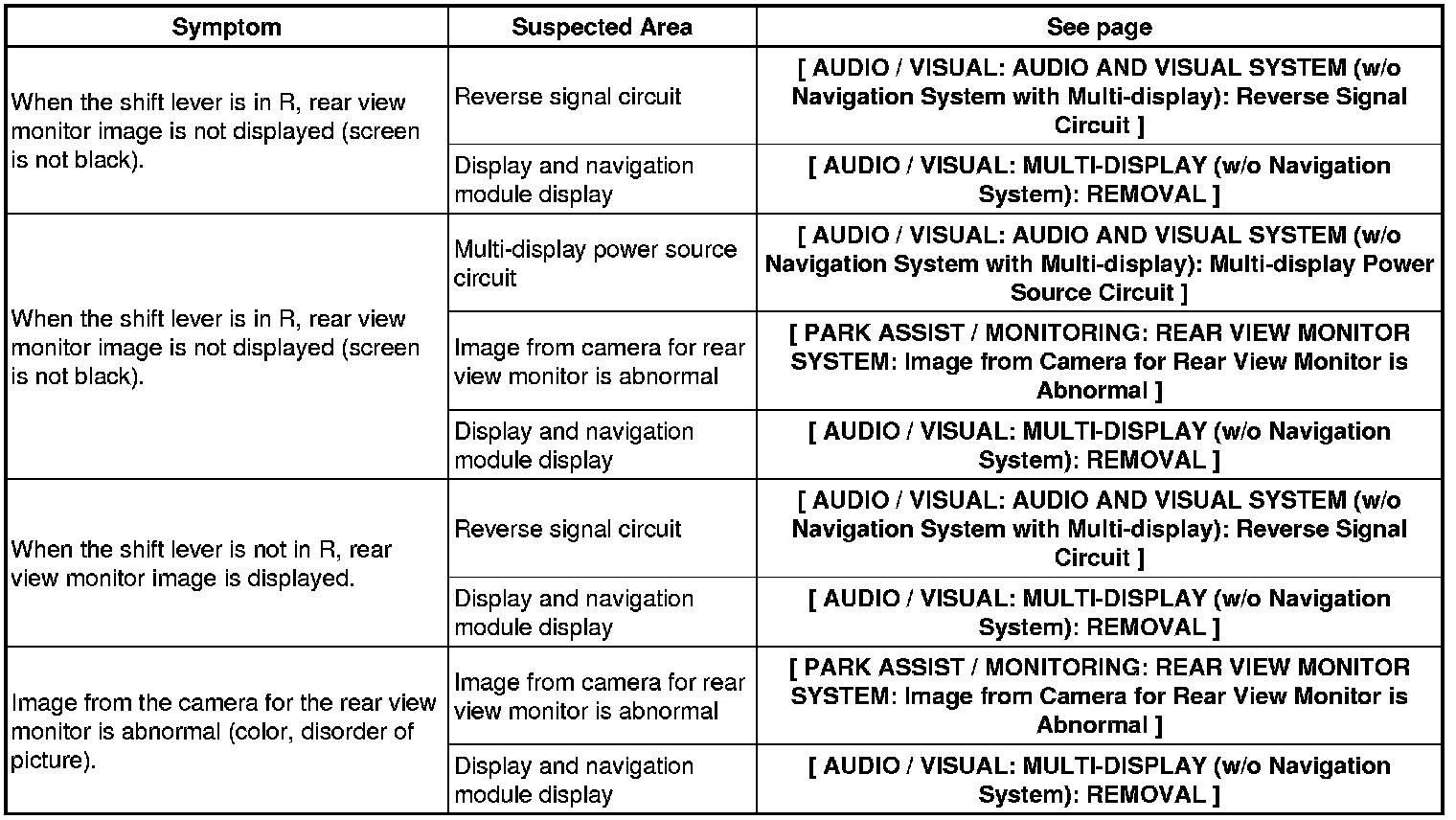

REAR VIEW MONITOR SYSTEM (for Audio and visual system (without navigation system with multi-display))
