Intuitive Parking Assist System

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: TERMINALS OF ECU

1. CHECK CLEARANCE WARNING ECU

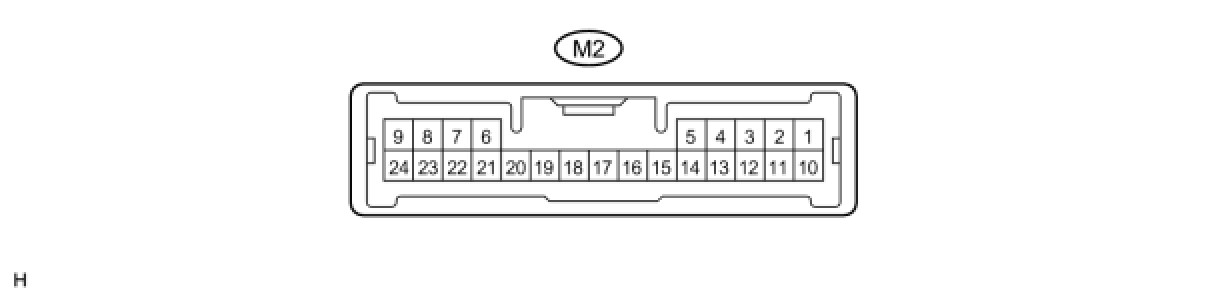

(a) Disconnect the M2 ECU connector.





(b) Measure the resistance and voltage between each terminal of the wire harness side connector.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the M2 ECU connector.

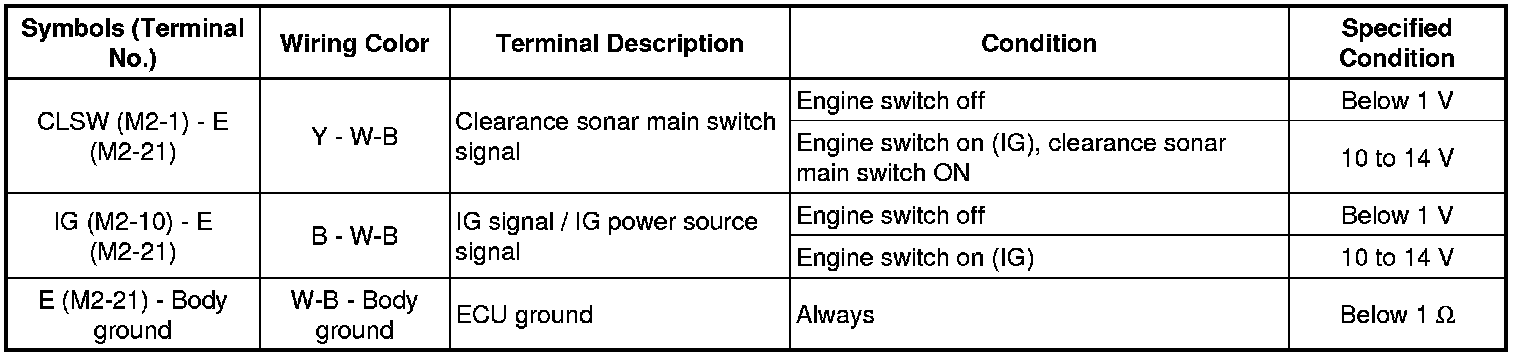

(d) Measure the resistance and voltage according to the value(s) in the table below.





If the result is not as specified, the ECU may have a malfunction.

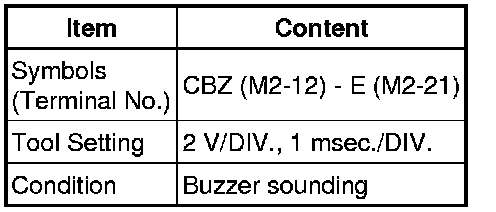

(e) Reference:

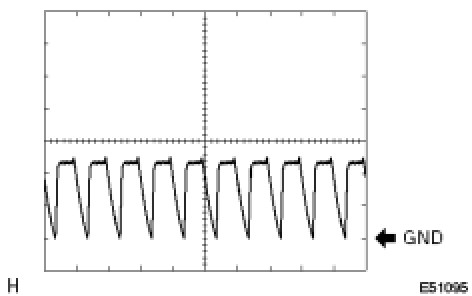

(1) Waveform 1
