Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
Use these procedures to troubleshoot the rear view monitor system.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS

NEXT -- Continue to next step.

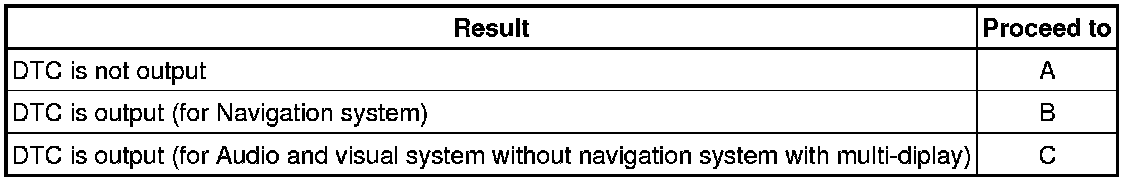

3. CHECK AND CLEAR DTCs

(a) Refer to DTC check/clear (Navigation system) Reading and Clearing Diagnostic Trouble Codes).

(b) Refer to DTC check/clear (Audio and visual system without navigation system with multi-display) Audio And Visual System (W/O Navigation System with Multi-display)).

Result:





B -- Go to NAVIGATION SYSTEM

C -- Go to AUDIO AND VISUAL SYSTEM (without Navigation System with Multi-display)
A -- Continue to next step.

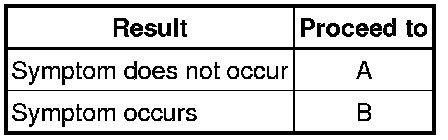

4. PROBLEM SYMPTOM CONFIRMATION

Result:





B -- Go to step 6
A -- Continue to next step.

5. SYMPTOM SIMULATION

NEXT -- Continue to next step.

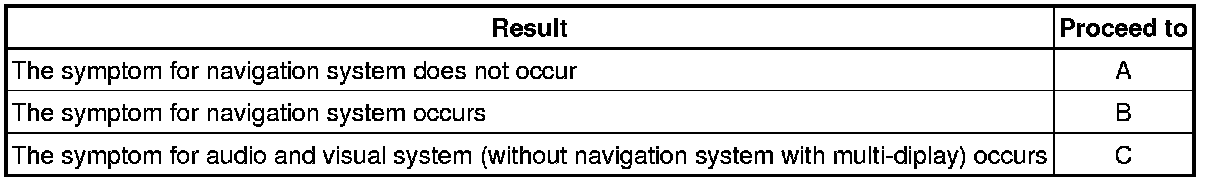

6. CHECK IF SAME SYMPTOM OCCURS IN NAVIGATION SYSTEM

(a) Refer to the navigation system Problem Symptoms Table

(b) Refer to the audio and visual system (without navigation system with multi-display) Problem Symptoms Table.

Result:





B -- Go to NAVIGATION SYSTEM (FOLLOW THE NAVIGATION SYMPTOM CHART TO PERFORM TROUBLESHOOTING)

C -- Go to AUDIO AND VISUAL SYSTEM (without Navigation System with Multi-display) (FOLLOW THE AUDIO AND VISUAL SYMPTOM CHART TO PERFORM TROUBLESHOOTING)
A -- Continue to next step.

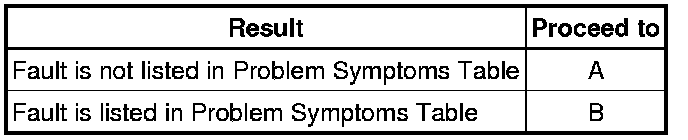

7. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table.

Result:





B -- Go to step 9
A -- Continue to next step.

8. BASED ON THE MALFUNCTION SYMPTOM, PERFORM TROUBLESHOOTING BELOW

(a) Terminals of ECU Rear View Monitor System (W/O Navigation System)

NEXT -- Continue to next step.

9. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

10. CONFIRMATION TEST

NEXT -- END
