Installation

PARK ASSIST / MONITORING: ULTRASONIC SENSOR: INSTALLATION

1. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (for Rear Side)

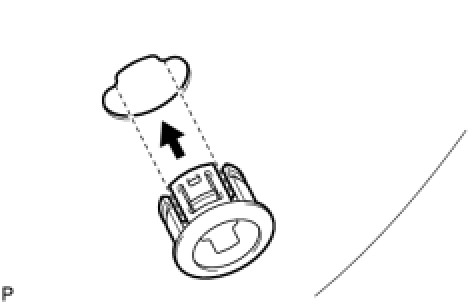

(a) Install the No. 1 ultrasonic sensor retainer as shown in the illustration.

HINT
Align the protrusions on the bumper hole with the slits of the No. 1 ultrasonic sensor retainer and install the No. 1 ultrasonic sensor.

2. INSTALL NO. 1 ULTRASONIC SENSOR (for Rear Side)

NOTICE:
Do not apply excessive force to the No. 1 ultrasonic sensor while performing the following procedures.

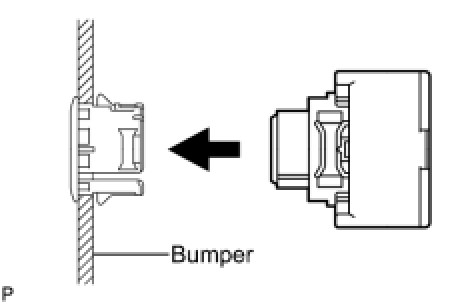

(a) Install the No. 1 ultrasonic sensor to the No. 1 ultrasonic sensor retainer.

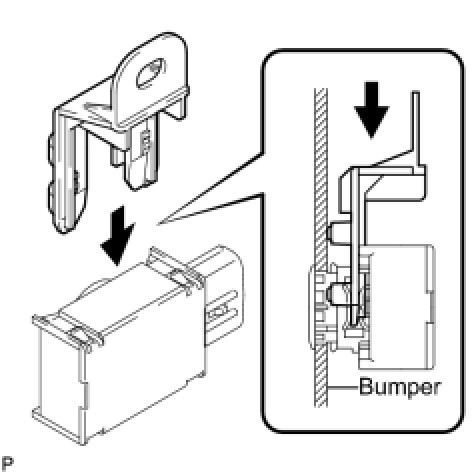

(b) Install the No. 2 ultrasonic sensor retainer as shown in the illustration.

3. INSTALL REAR BUMPER ASSEMBLY (for Rear Side) Installation

4. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH (for Rear Side) Reassembly

5. INSTALL REAR FLOOR FINISH PLATE (for Rear Side) Reassembly

6. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for Rear Side) Reassembly

7. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side) Reassembly

8. INSTALL SPARE WHEEL COVER TRAY (for Rear Side)

9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (for Rear Side)

10. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (for Front Side)

(a) Install the No. 1 ultrasonic sensor retainer as shown in the illustration.

HINT
Align the protrusions on the bumper hole with the slits of the No. 1 ultrasonic sensor retainer and install the No. 1 ultrasonic sensor.

11. INSTALL NO. 1 ULTRASONIC SENSOR (for Front Side)

NOTICE:
Do not apply excessive force to the No. 1 ultrasonic sensor while performing the following procedures.

(a) Install the No. 1 ultrasonic sensor to the No. 1 ultrasonic sensor retainer.

(b) Install the No. 2 ultrasonic sensor retainer as shown in the illustration.

12. INSTALL FRONT BUMPER ASSEMBLY (for Front Side) Installation

13. INSTALL COOL AIR INTAKE DUCT SEAL (for Front Side) Installation

14. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT Adjustments

15. PREPARATION FOR FOG LIGHT AIMING Adjustments

16. FOG LIGHT AIMING INSPECTION Adjustments

17. FOG LIGHT AIMING ADJUSTMENT Adjustments
