Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Description and Operation
>>
System Diagram
System Diagram
WIPER / WASHER: WIPER AND WASHER SYSTEM: SYSTEM DIAGRAM
1.

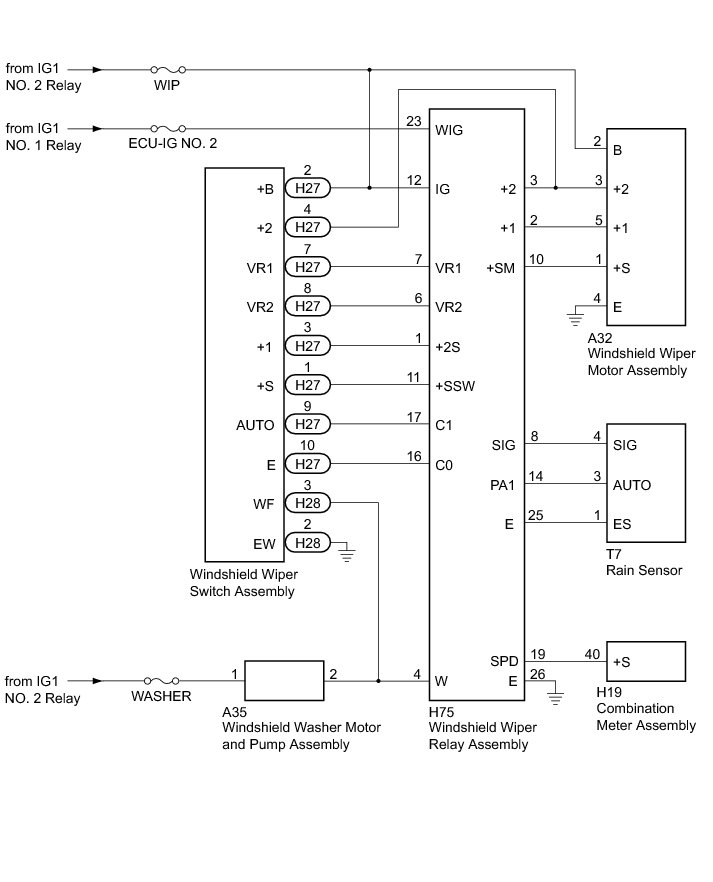

AUTO WIPER SYSTEM
2.

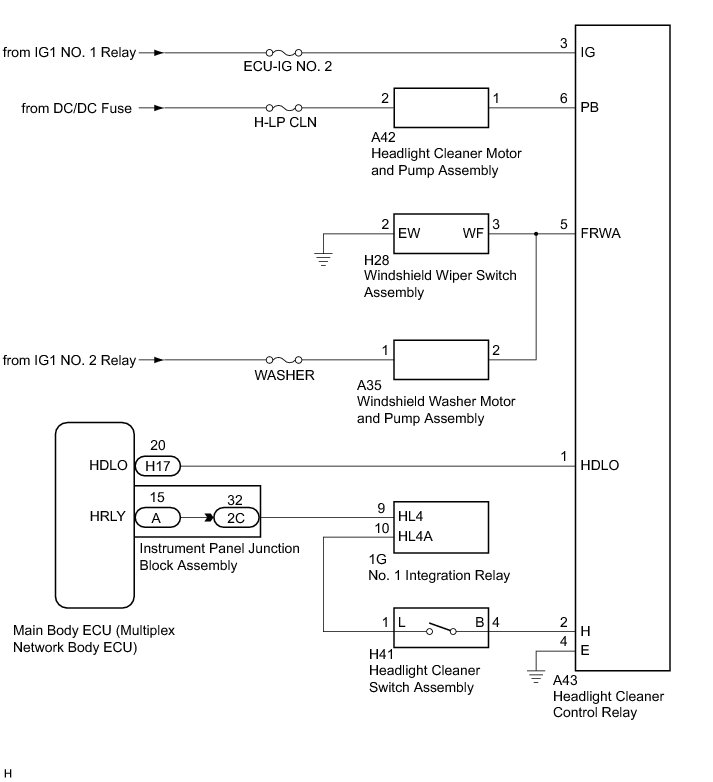

HEADLIGHT CLEANER SYSTEM
