System Description

WINDOW / GLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DESCRIPTION

1. GENERAL

The windshield deicer thin heater wires are attached to the inside of the windshield glass to help and deice the window surface more quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes.

NOTICE:
If the battery voltage becomes low, windshield deicer operation is canceled to prioritize supplying power to the power steering system Freeze Frame Data.

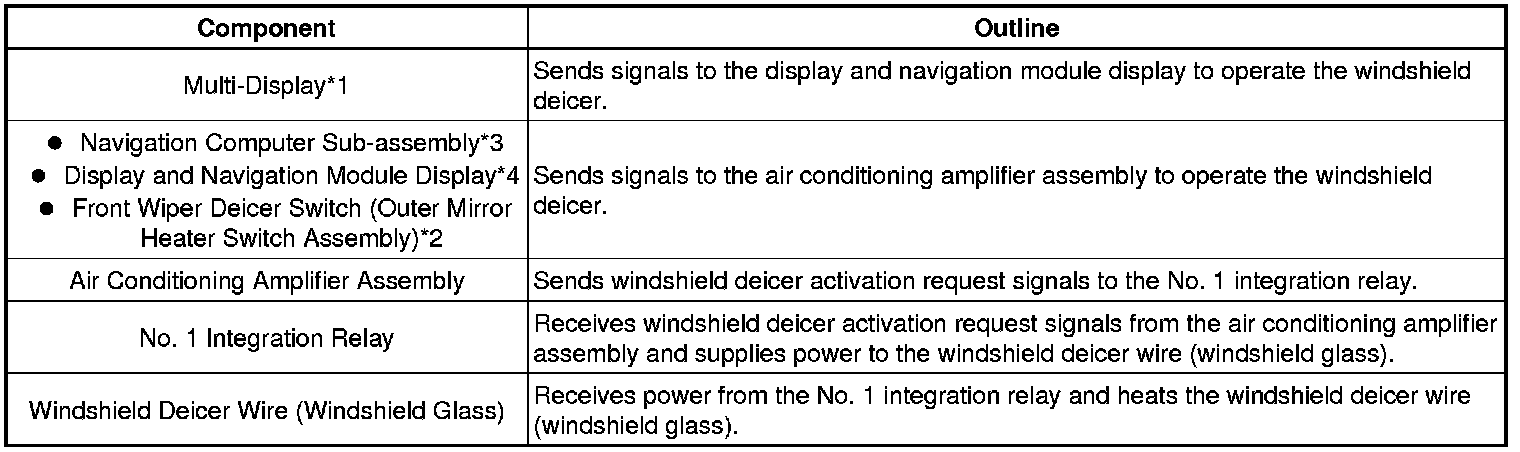

2. FUNCTION OF MAIN COMPONENT





* *1: w/ Navigation System

* *2: w/o Navigation System

* *3: w/ Navigation System (for HDD)

* *4: w/ Navigation System (for DVD)
