Removal

P410 HYBRID TRANSMISSION / TRANSAXLE: MOTOR CABLE: REMOVAL

1. PRECAUTION

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.

2. REMOVE REAR NO. 2 FLOOR BOARD Removal

3. REMOVE REAR DECK FLOOR BOX Removal

4. REMOVE REAR NO. 3 FLOOR BOARD Removal

5. REMOVE DECK FLOOR BOX RH Removal

6. REMOVE REAR FLOOR BOARD UPPER NO. 3 PLATE Removal

7. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

8. REMOVE SERVICE PLUG GRIP Removal

9. REMOVE FRONT LOWER BUMPER ABSORBER

10. REMOVE NO. 1 ENGINE UNDER COVER

11. DRAIN COOLANT (for Inverter) Coolant (For Inverter)

12. REMOVE INVERTER COVER ASSEMBLY LH (w/ Cover) Removal

13. REMOVE RADIATOR SUPPORT OPENING COVER Removal

14. REMOVE NO. 1 INVERTER BRACKET Removal

15. DISCONNECT ENGINE ROOM MAIN WIRE Removal

16. REMOVE INVERTER COVER Removal

17. CHECK TERMINAL VOLTAGE Removal

18. DISCONNECT FRAME WIRE Removal

19. DISCONNECT GENERATOR CABLE Removal

20. DISCONNECT MOTOR CABLE Removal

21. DISCONNECT NO. 2 ENGINE WIRE Removal

22. INSTALL INVERTER COVER Removal

23. DISCONNECT NO. 2 ENGINE ROOM WIRE Removal

24. DISCONNECT WATER HOSE Removal

25. REMOVE INVERTER WITH CONVERTER ASSEMBLY Removal

26. REMOVE INVERTER RESERVE TANK ASSEMBLY Removal

27. REMOVE INVERTER TRAY BRACKET Removal

28. REMOVE MOTOR CABLE

NOTICE:
Wear insulated gloves.

(a) Disconnect the 3 clamps.

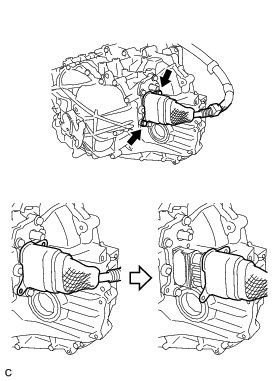

(b) Remove the 2 bolts and slide the motor cable connector shell back.

(d) Remove the 3 bolts and motor cable from the hybrid transaxle assembly.
