Installation
P410 HYBRID TRANSMISSION / TRANSAXLE: MOTOR CABLE: INSTALLATION
1. INSTALL MOTOR CABLE
NOTICE:
Wear insulated gloves.

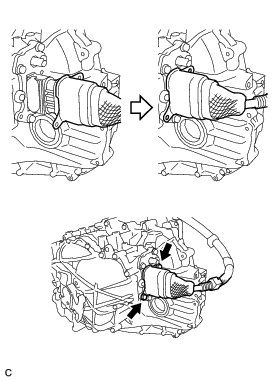

(a) Install the motor cable to the hybrid transaxle assembly with the 3 bolts.
Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)
NOTICE:
Keep the sealing surface of the motor cable and the connector terminal joint free of foreign matter.
(b) Engage the 2 claws to install a new terminal cap.
NOTICE:
When installing the terminal cap to the motor cable terminal block, keep the sealing surface free of foreign matter.
(c) Place the motor cable connector shell in position and install it with the 2 bolts.
Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)
(d) Connect the 3 clamps.
2. INSTALL INVERTER TRAY BRACKET Installation
3. INSTALL INVERTER RESERVE TANK ASSEMBLY Installation
4. INSTALL INVERTER WITH CONVERTER ASSEMBLY Installation
5. CONNECT WATER HOSE Installation
6. CONNECT NO. 2 ENGINE ROOM WIRE Installation
7. REMOVE INVERTER COVER Installation
8. CONNECT NO. 2 ENGINE WIRE Installation
9. CONNECT MOTOR CABLE Installation
10. CONNECT GENERATOR CABLE Installation
11. CONNECT FRAME WIRE Installation
12. CHECK HIGH VOLTAGE CABLE CONNECTION Installation
13. INSTALL INVERTER COVER Installation
14. INSTALL ENGINE ROOM MAIN WIRE Installation
15. INSTALL NO. 1 INVERTER BRACKET Installation
16. INSTALL RADIATOR SUPPORT OPENING COVER
17. INSTALL INVERTER COVER ASSEMBLY LH (w/ Cover) Installation
18. INSTALL SERVICE PLUG GRIP Installation
19. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
20. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE Installation
21. INSTALL DECK FLOOR BOX RH Installation
22. INSTALL REAR NO. 3 FLOOR BOARD Installation
23. INSTALL REAR DECK FLOOR BOX Installation
24. INSTALL REAR NO. 2 FLOOR BOARD Installation
25. ADD COOLANT (for Inverter) Coolant (For Inverter)
26. INSPECT FOR COOLANT LEAK (for Inverter) Testing and Inspection
27. INSTALL NO. 1 ENGINE UNDER COVER
28. INSTALL FRONT LOWER BUMPER ABSORBER
