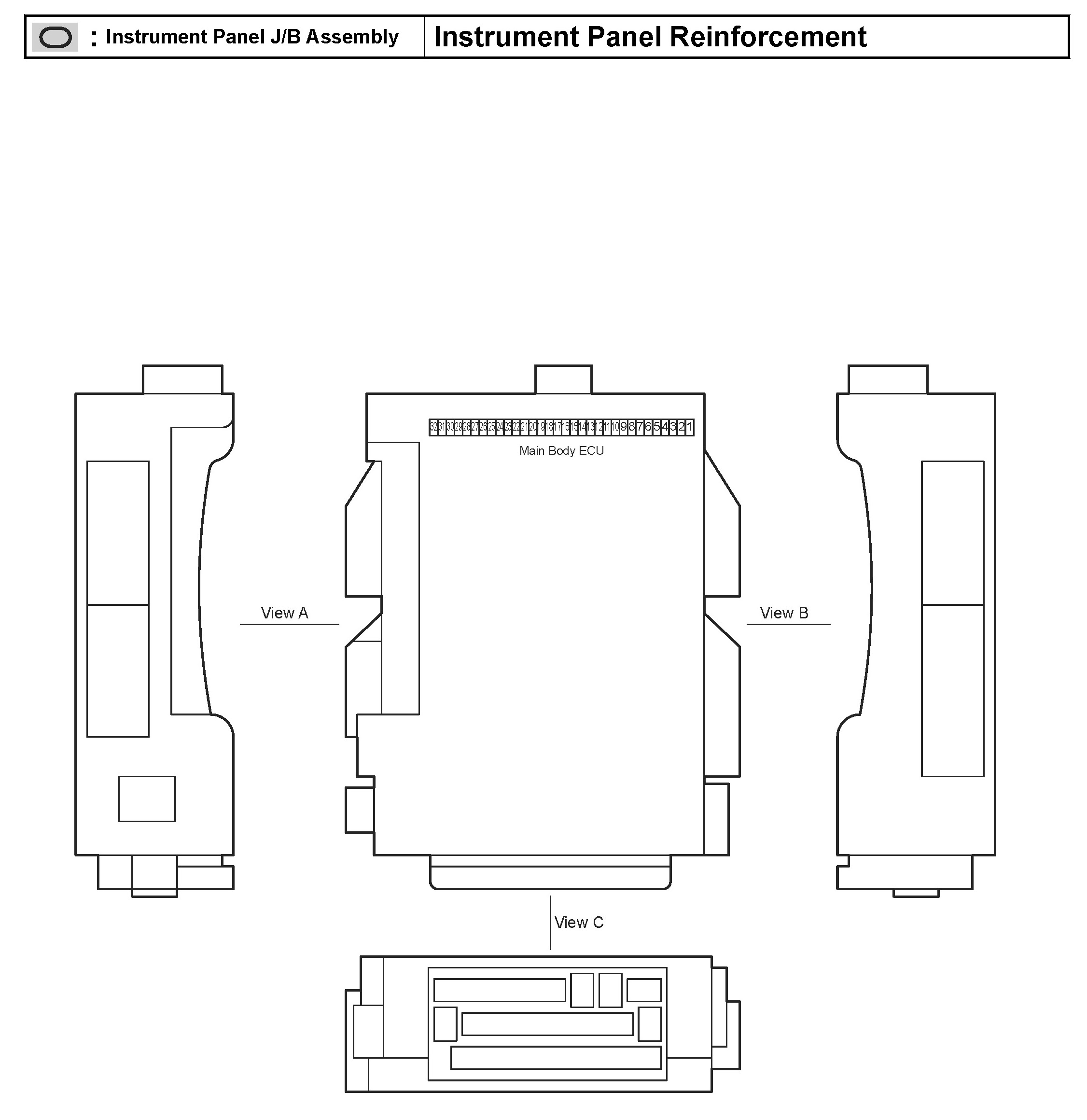

34 - 37 - Instrument Panel J/B Assembly - Instrument Panel Reinforcement

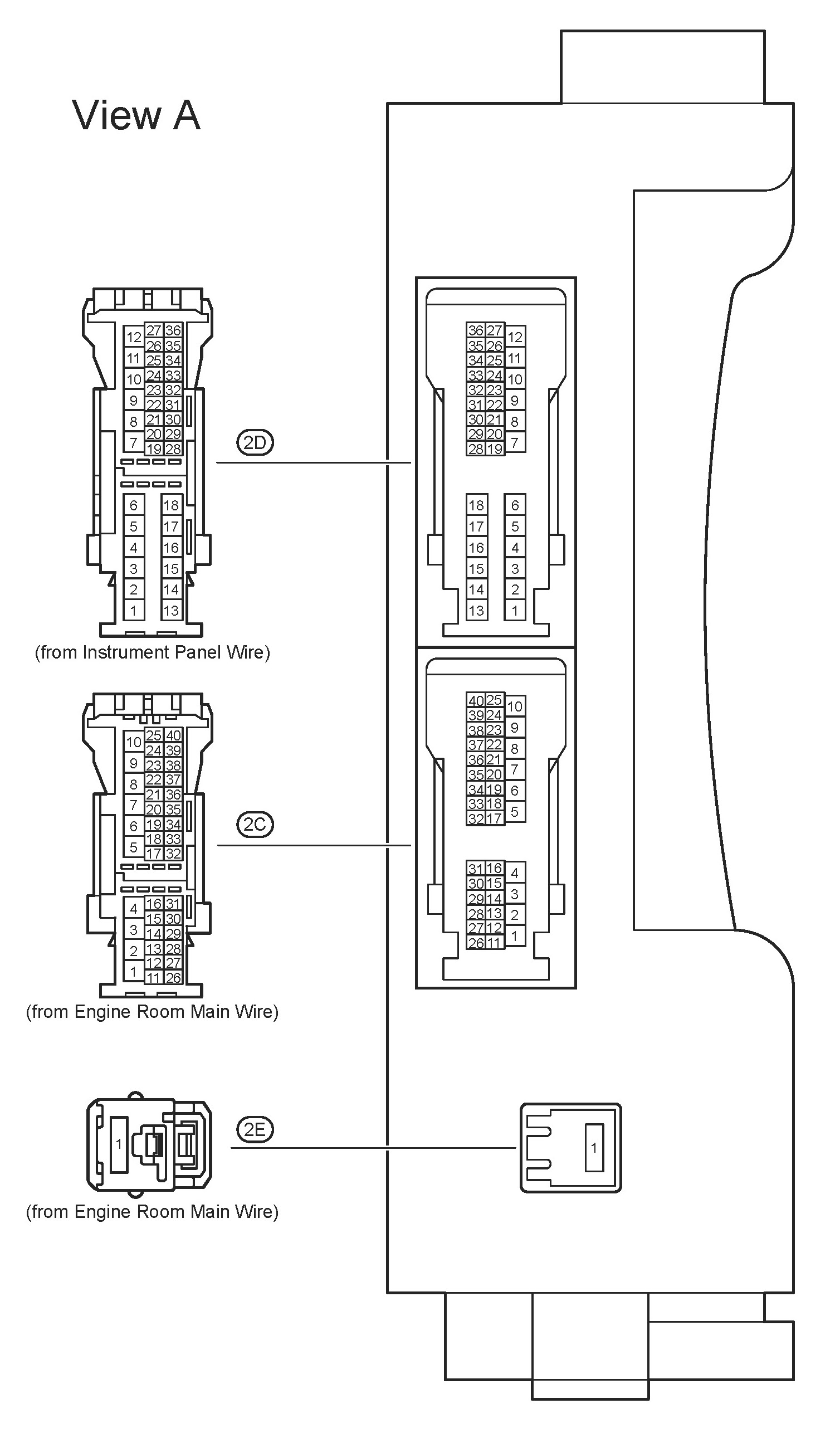

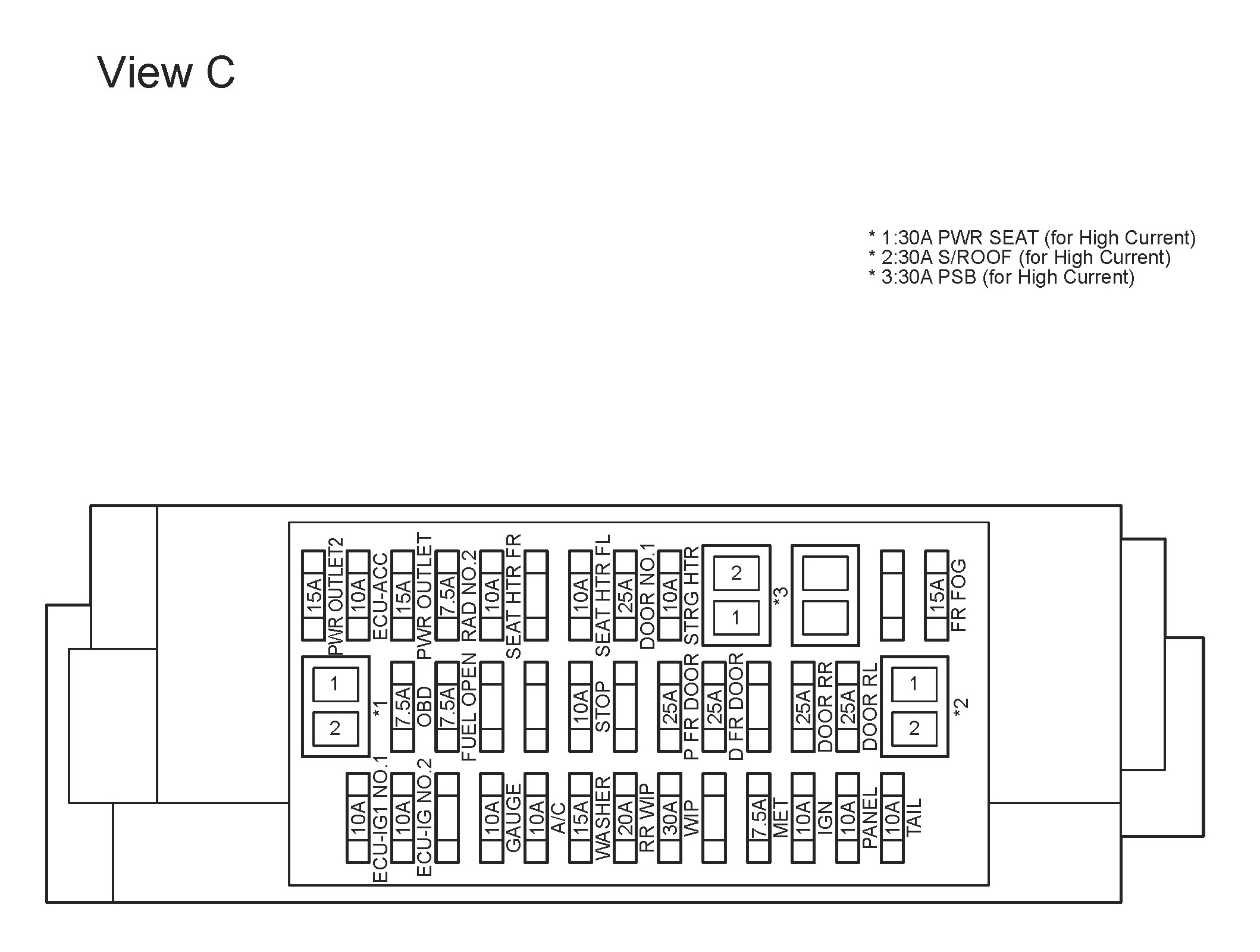

34 - Instrument Panel J/B Assembly - Instrument Panel Reinforcement:





35 - Instrument Panel J/B Assembly - Instrument Panel Reinforcement:





36 - Instrument Panel J/B Assembly - Instrument Panel Reinforcement:





37 - Instrument Panel J/B Assembly - Instrument Panel Reinforcement:
