24 - 27 - Engine Room R/B, Engine Room J/B - Front Fender Apron LH

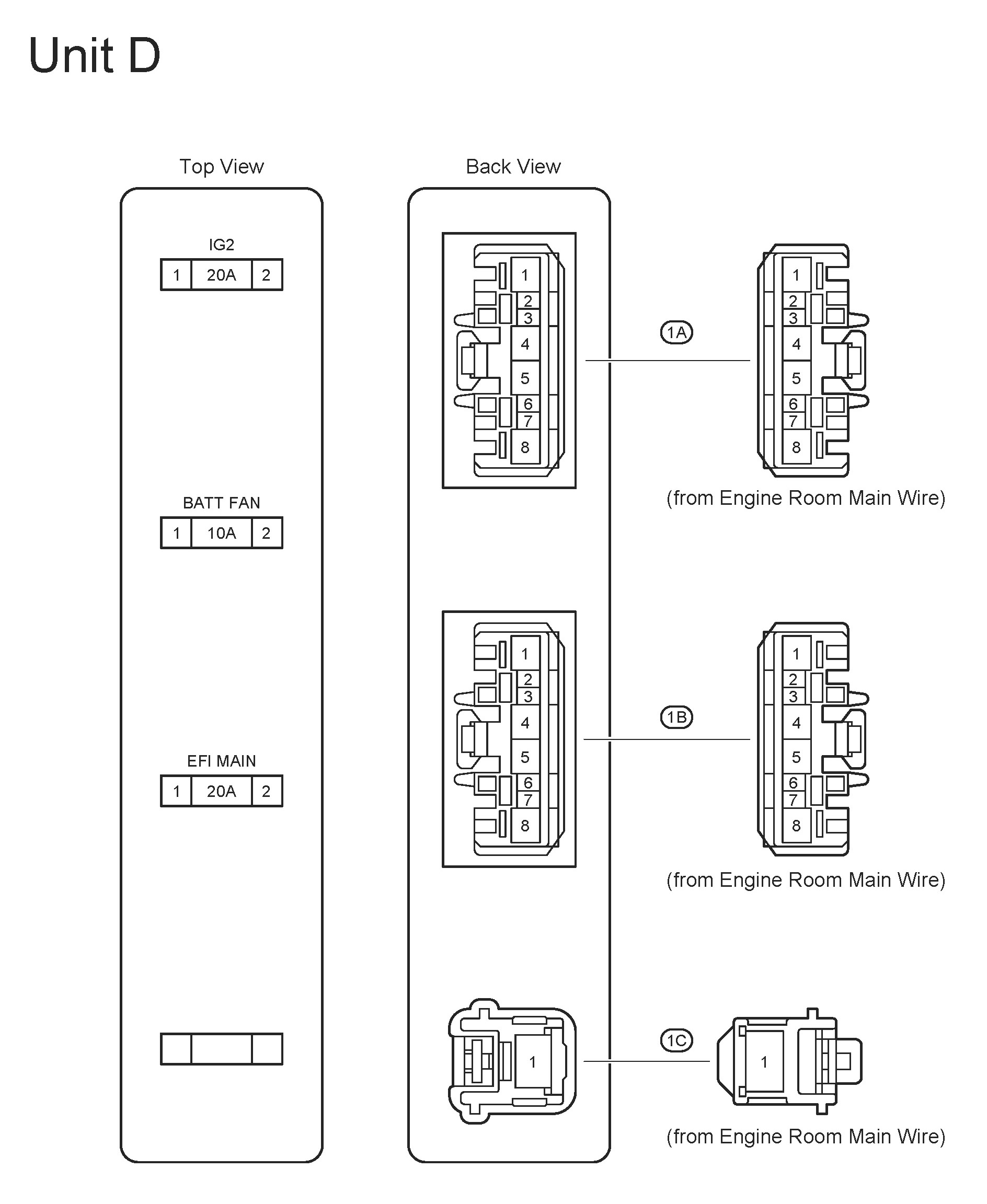

24 - Engine Room R/B, Engine Room J/B - Front Fender Apron LH:

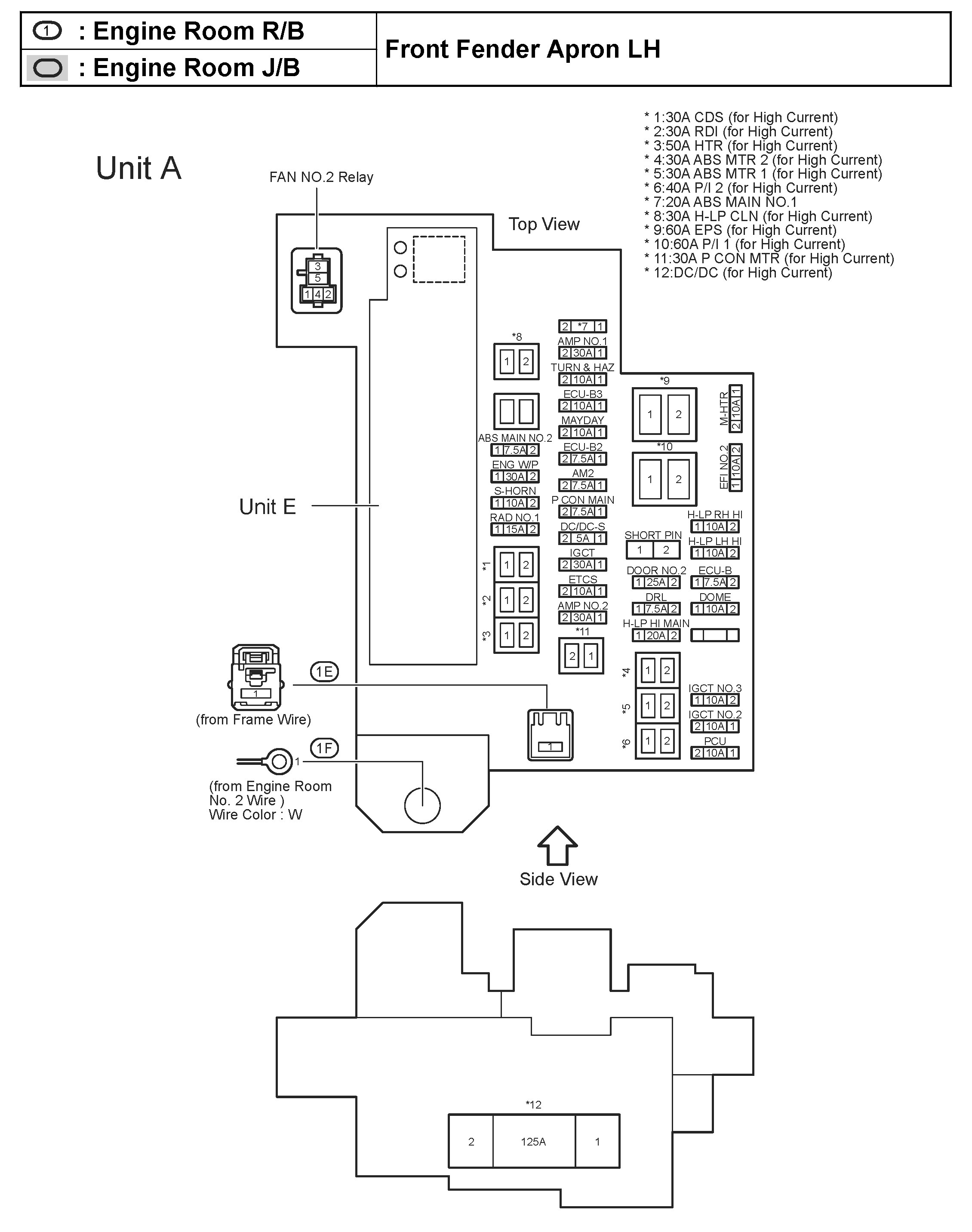

25 - Engine Room R/B, Engine Room J/B - Front Fender Apron LH:

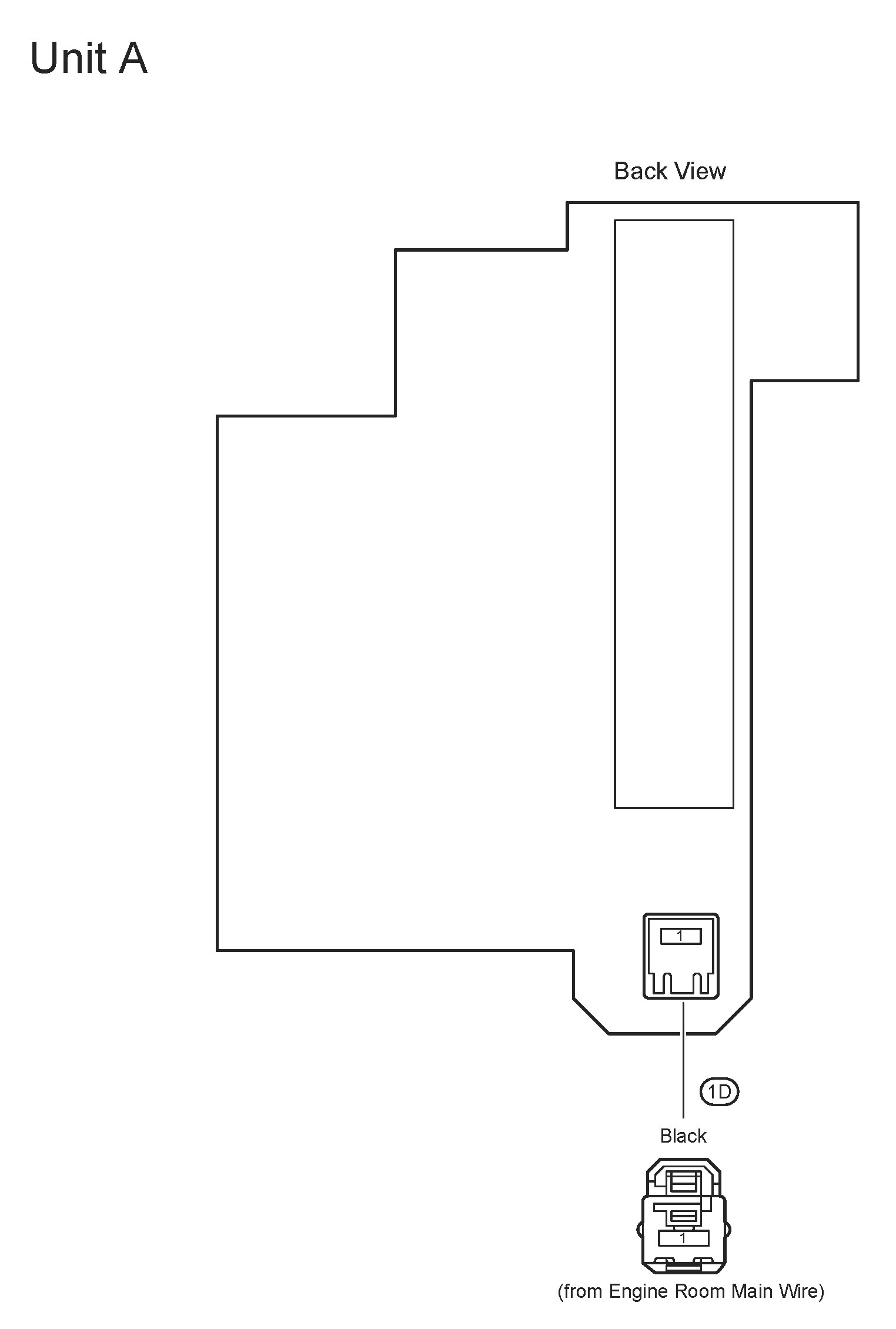

26 - Engine Room R/B, Engine Room J/B - Front Fender Apron LH:





27 - Engine Room R/B, Engine Room J/B - Front Fender Apron LH:
