Home >> Lexus >> 2012 >> CT 200h L4-1.8L (2ZR-FXE) Hybrid >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Specifications

Charging System: Specifications

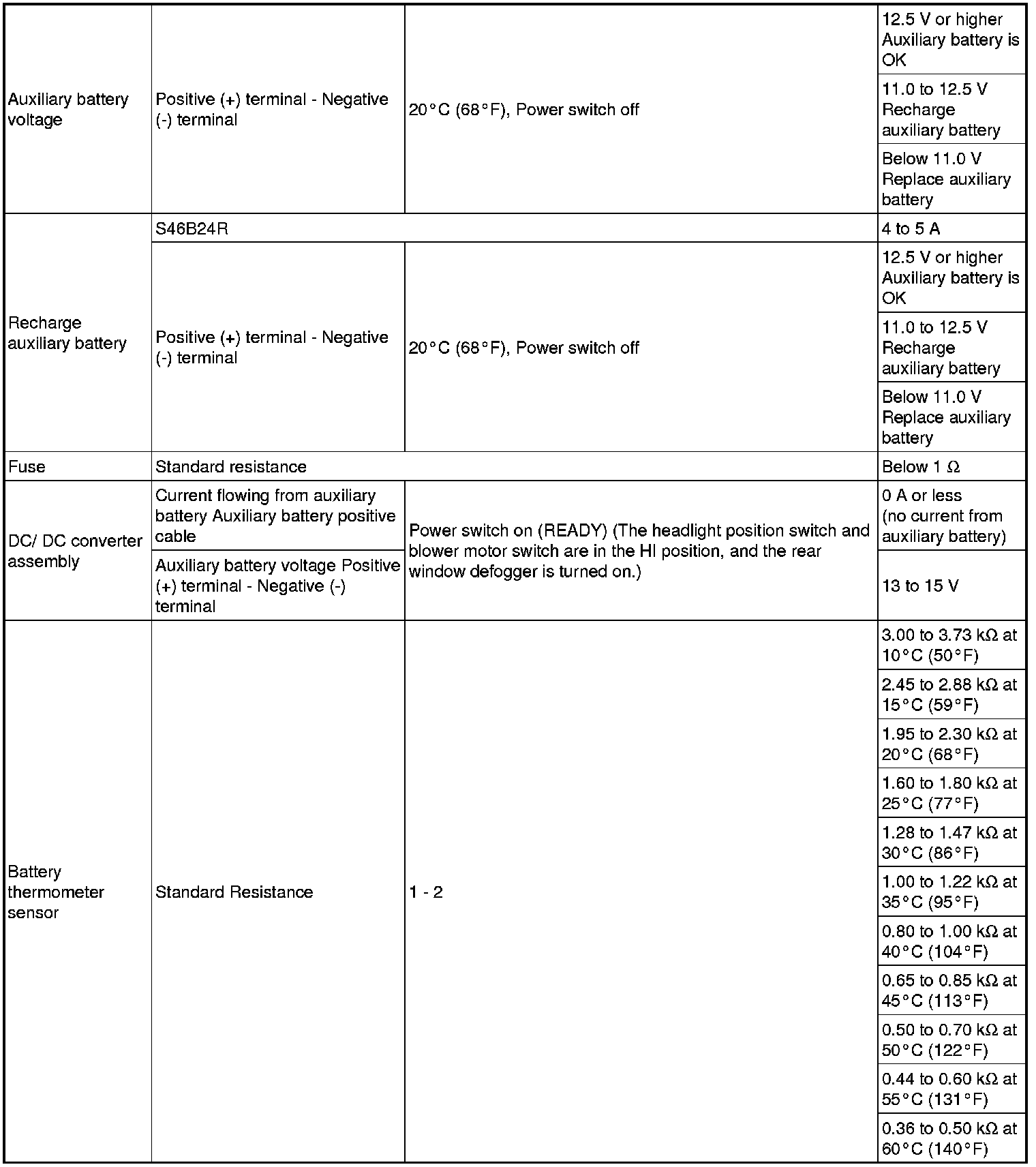

SPECIFICATIONS: 2ZR-FXE BATTERY / CHARGING: SERVICE DATA
