Tire Pressure Warning Reset Switch: Testing and Inspection

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING RESET SWITCH: INSPECTION

1. INSPECT TIRE PRESSURE WARNING RESET SWITCH

(a) Remove the tire pressure warning reset switch Removal.

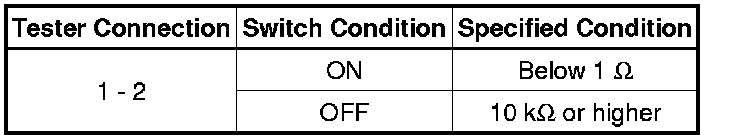

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

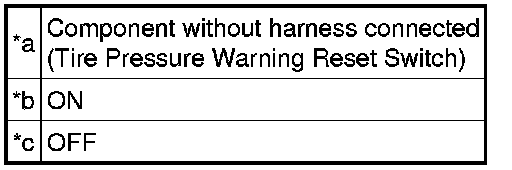

Text in Illustration
