Interior - Loose trim Around Power Button On Dash

L-SB-0106-12

October 25, 2012

Loose Trim Panel Material Surrounding the Power Button Switch

Service Category
Vehicle Interior

Section
Interior Panels/Trim

Market
USA

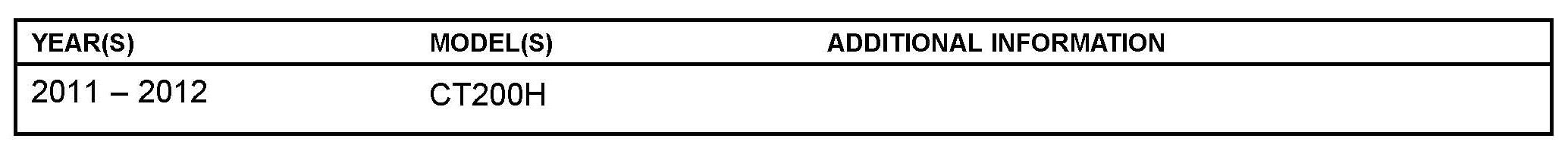

Applicability

Introduction

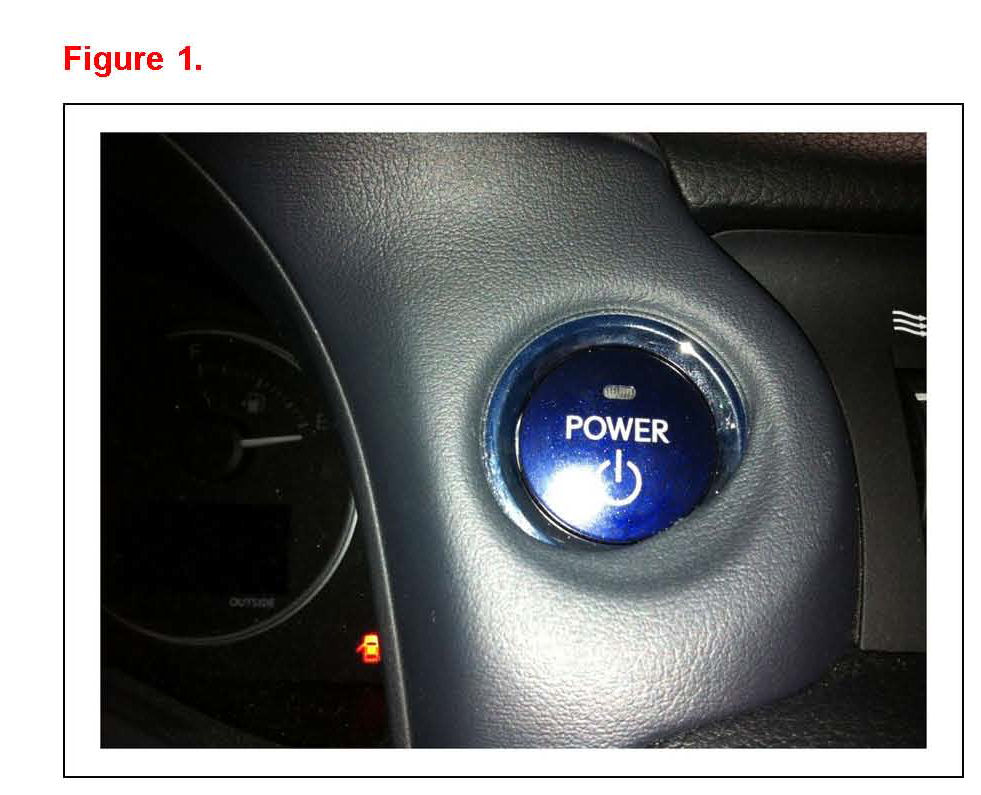

Some 2011 -2012 model year CT 200h vehicles may exhibit a loose material condition surrounding the POWER button on the Meter Hood Sub-assembly. Replace the Meter Hood Sub-Assembly to address this condition.

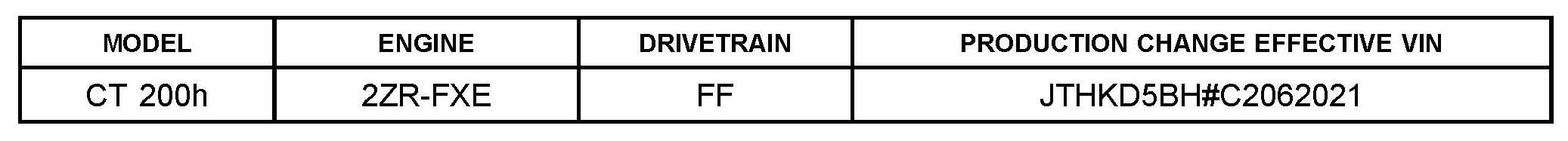

Production Change Information





This bulletin applies to vehicles produced BEFORE the Production Change Effective VIN shown.





Parts Information

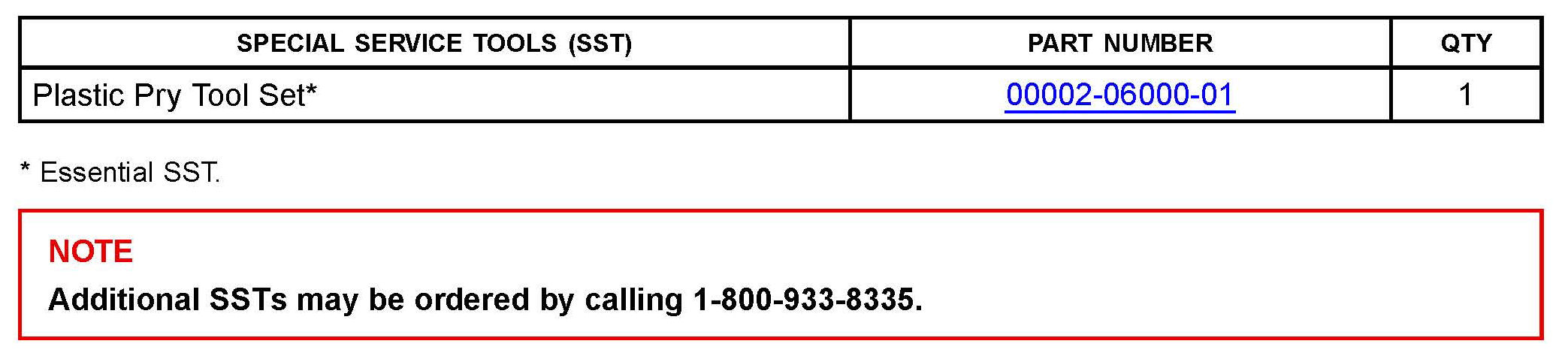

Required Tools & Equipment

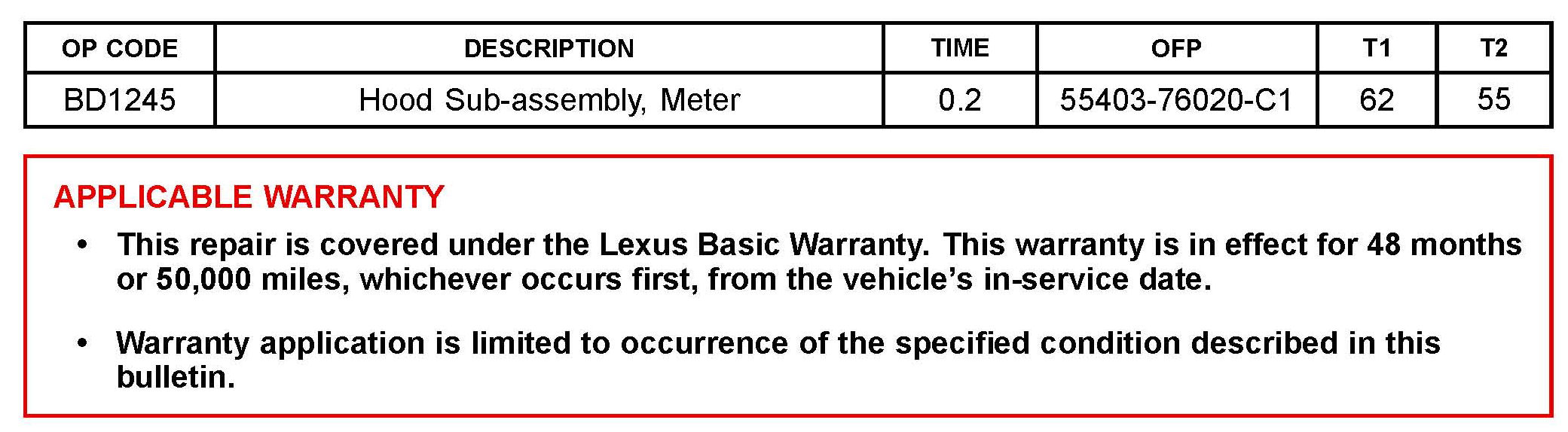

Warranty Information

Repair Procedure

1. Remove the Meter Hood Sub-assembly.

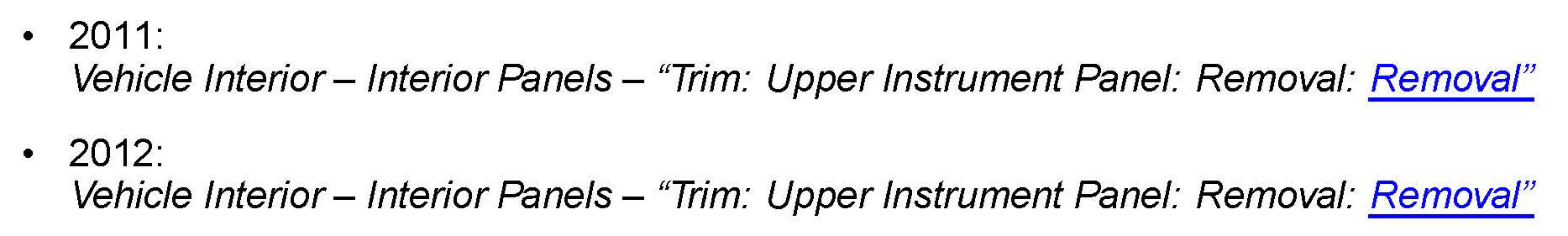

Refer to the Technical Information System (TIS), applicable model and model year Repair Manual:

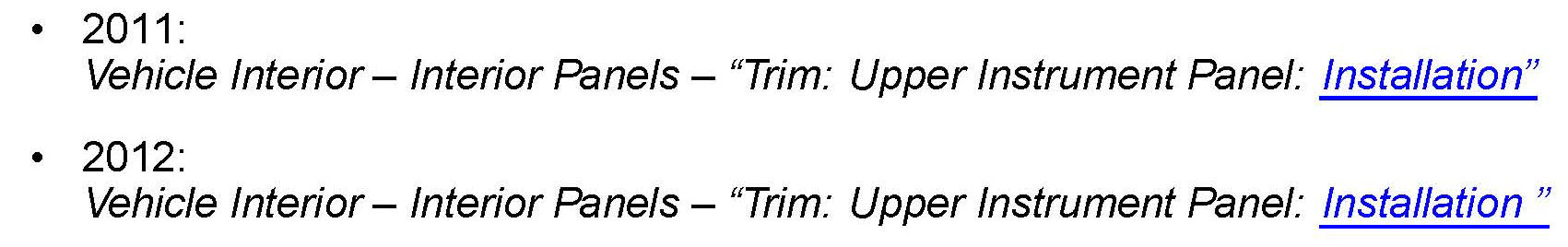

2. Install the new hood meter upper trim panel.

3. Verify the condition has been repaired.

4. Initialize the following systems, if equipped:

^ Parking Assist Monitor System.

^ Power Door Lock Control System.

© 2012 Lexus, a division of Toyota Motor Sales, USA
