Home >> Lexus >> 2012 >> CT 200h L4-1.8L (2ZR-FXE) Hybrid >> Repair and Diagnosis >> Restraints and Safety Systems >> Vehicle Sound Amplification >> Description and Operation >> System Diagram

System Diagram

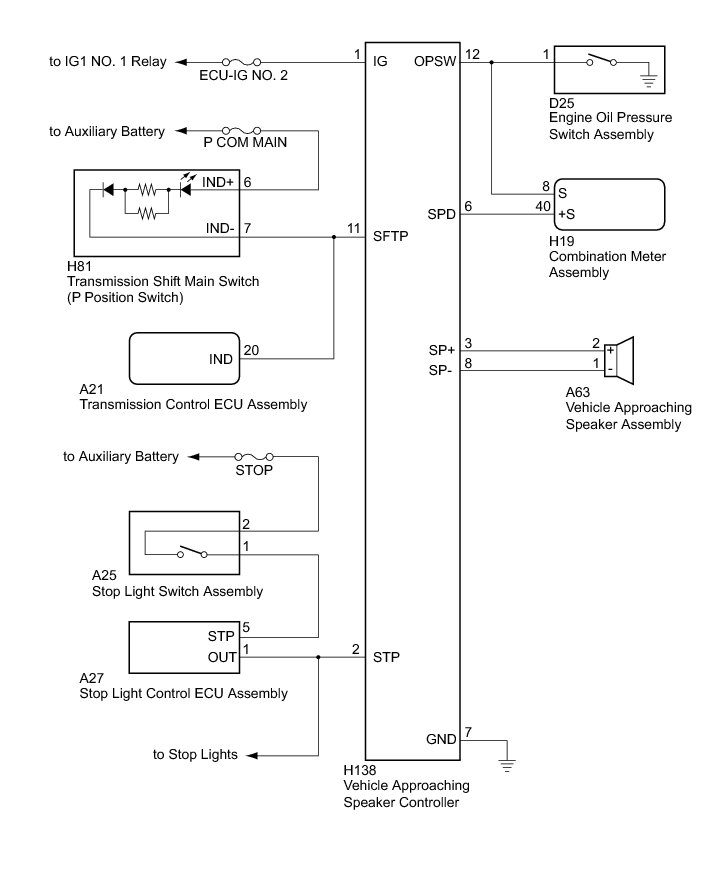

VEHICLE PROXIMITY NOTIFICATION SYSTEM: VEHICLE PROXIMITY NOTIFICATION SYSTEM: SYSTEM DIAGRAM
