Pinout Values and Diagnostic Parameters

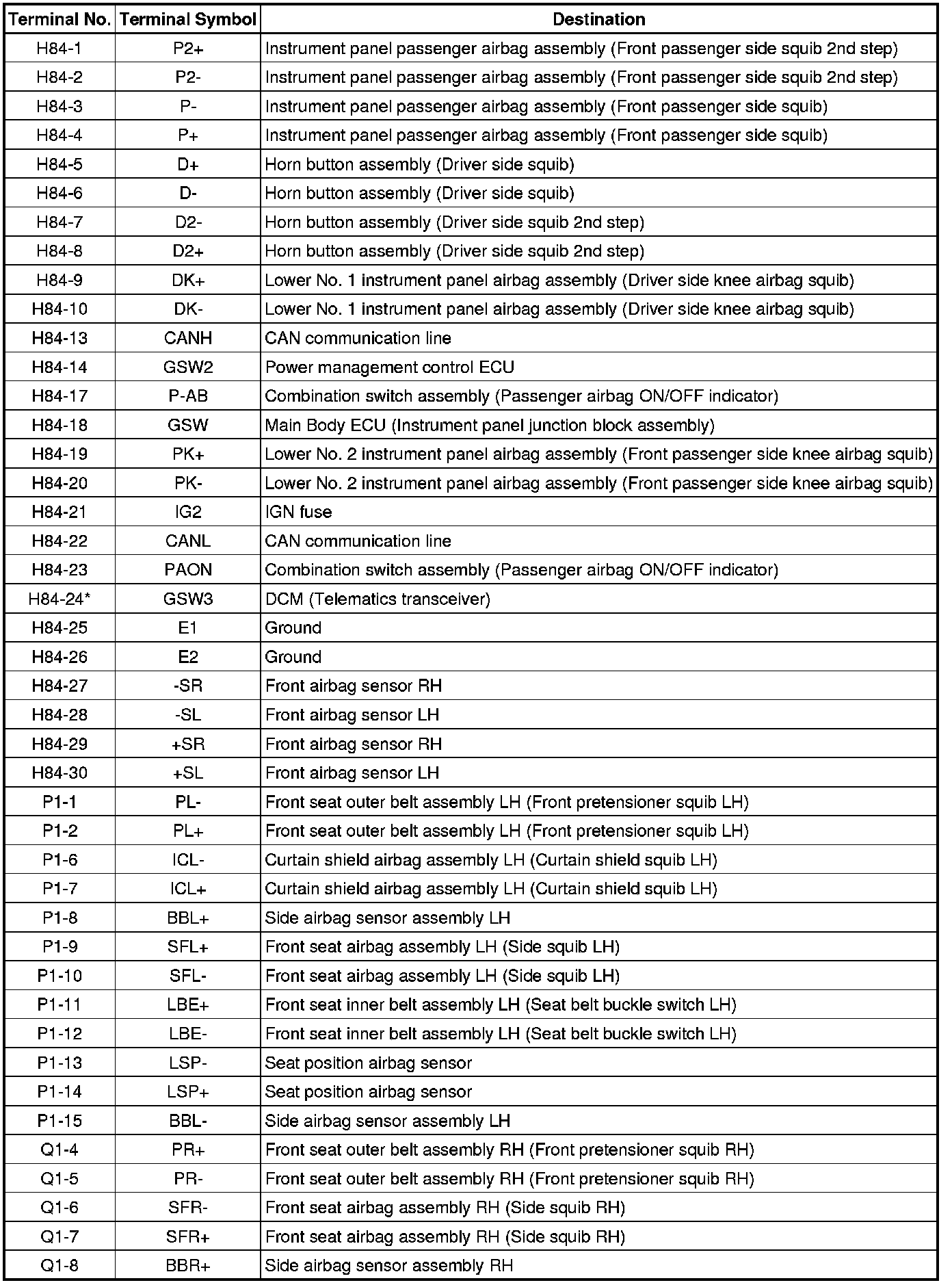

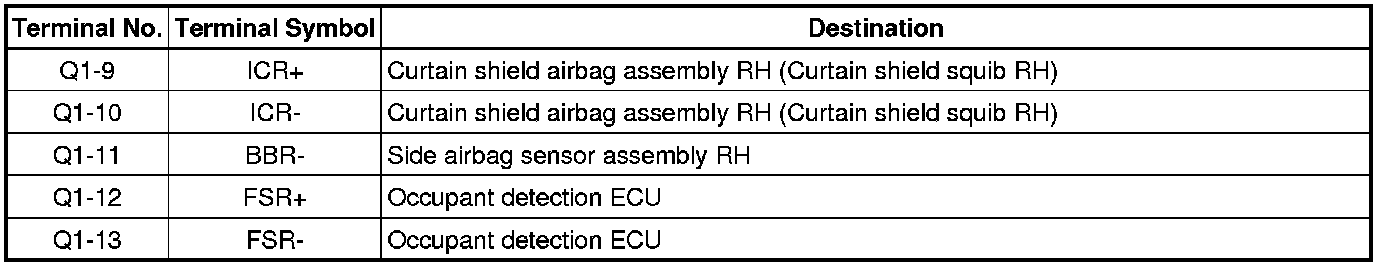

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU

1. AIRBAG SENSOR ASSEMBLY













* *: w/ Safety connect system
