Installation

SUPPLEMENTAL RESTRAINT SYSTEMS: REAR AIRBAG SENSOR: INSTALLATION

HINT
* Use the same procedure for the RH side and LH side.
* The procedure listed below is for the LH side.

1. INSTALL SIDE NO. 2 AIRBAG SENSOR ASSEMBLY

(a) Check that the power switch is off.

(b) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

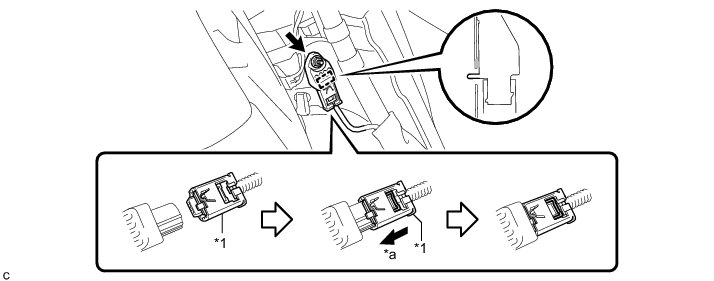

(c) Insert the pin (stopper) into the body hole to install the side No. 2 airbag sensor assembly to the vehicle with the nut.





Text in Illustration





Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

NOTICE:
* If the side No. 2 airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
* When installing the side No. 2 airbag sensor assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
* Make sure that the pin (stopper) is securely inserted into the body hole.
* Tighten the nut while holding the side No. 2 airbag sensor assembly because the side No. 2 airbag sensor assembly pin (stopper) is easily damaged.

(d) Connect the connector to the side No. 2 airbag sensor assembly.

NOTICE:
When connecting any airbag connector, take care not to damage the airbag wire harness.

(1) Connect the connector as shown in the illustration (when locking, make sure that the outer connector locking sleeve returns to its original position and a click sound can be heard).

(e) Check that there is no looseness in the installation parts of the side No. 2 airbag sensor assembly.

2. INSTALL REAR SEAT SIDE GARNISH Installation

3. INSTALL REAR SEAT SIDE COVER RH (for RH Side) Installation

4. INSTALL REAR DOOR SCUFF PLATE Installation

5. INSTALL REAR SEAT ASSEMBLY

Installation

6. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

7. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE Installation

8. INSTALL DECK FLOOR BOX RH Installation

9. INSTALL REAR NO. 3 FLOOR BOARD Installation

10. INSTALL REAR DECK FLOOR BOX Installation

11. INSTALL REAR NO. 2 FLOOR BOARD Installation

12. PERFORM DIAGNOSTIC SYSTEM CHECK

Reading and Clearing Diagnostic Trouble Codes

13. INSPECT SRS WARNING LIGHT

Diagnosis System
