Mechanical Specifications





SPECIFICATIONS: 2ZR-FXE EMISSION CONTROL: TORQUE SPECIFICATIONS

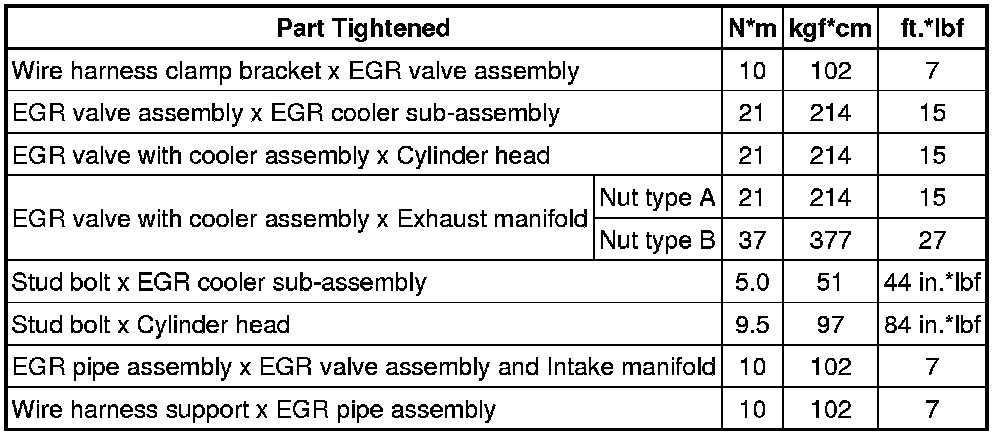

EGR VALVE AND EGR COOLER





VACUUM SENSOR





CANISTER





PURGE VALVE





PCV VALVE
