Part 2
NETWORKING: CAN COMMUNICATION SYSTEM: TERMINALS OF ECU (Continued)

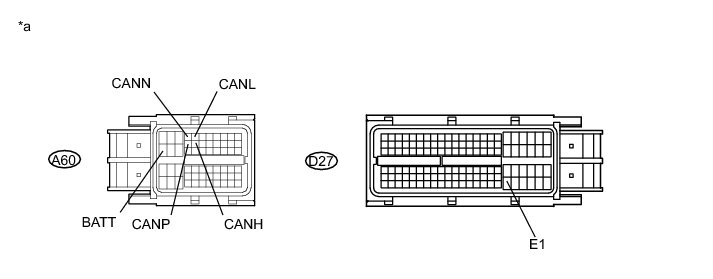

8. ECM

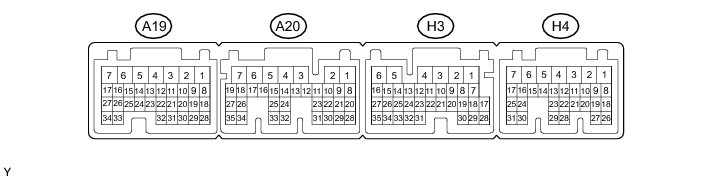

(a) Disconnect the ECM connectors.
Text in Illustration

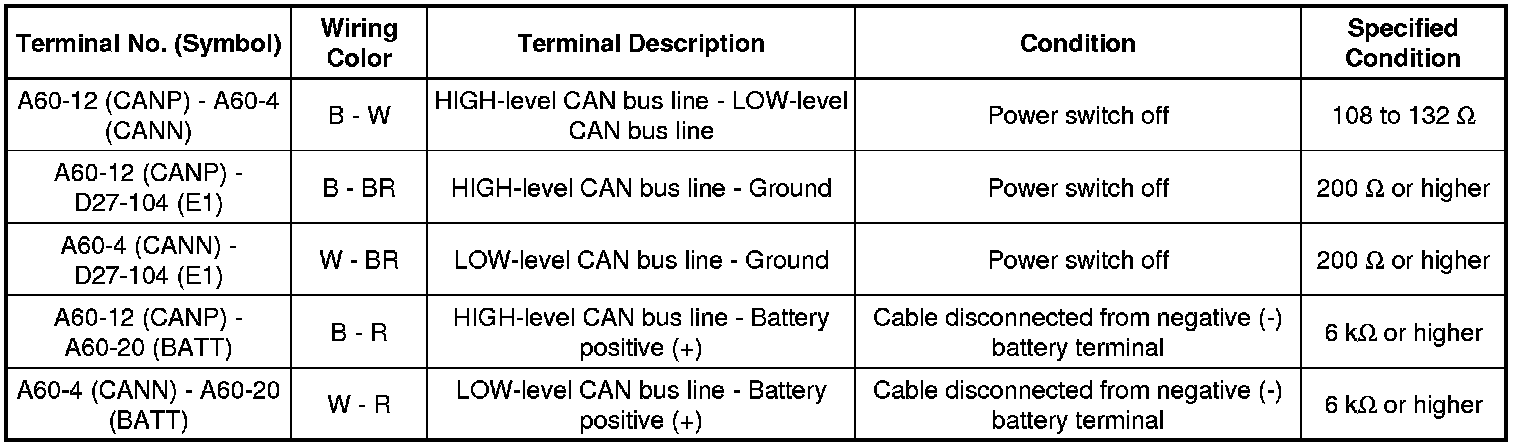

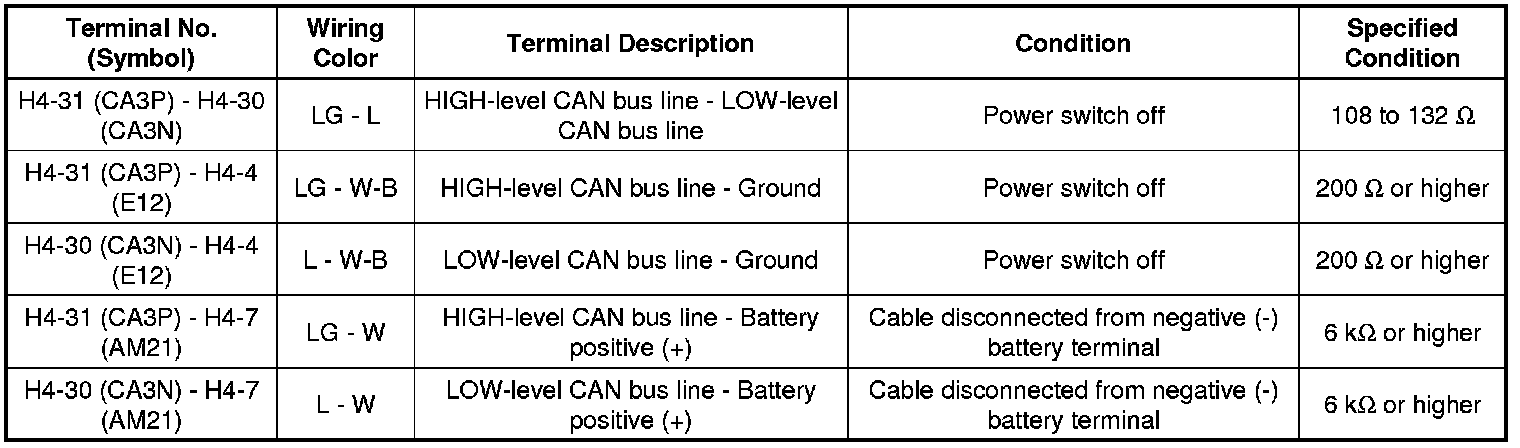

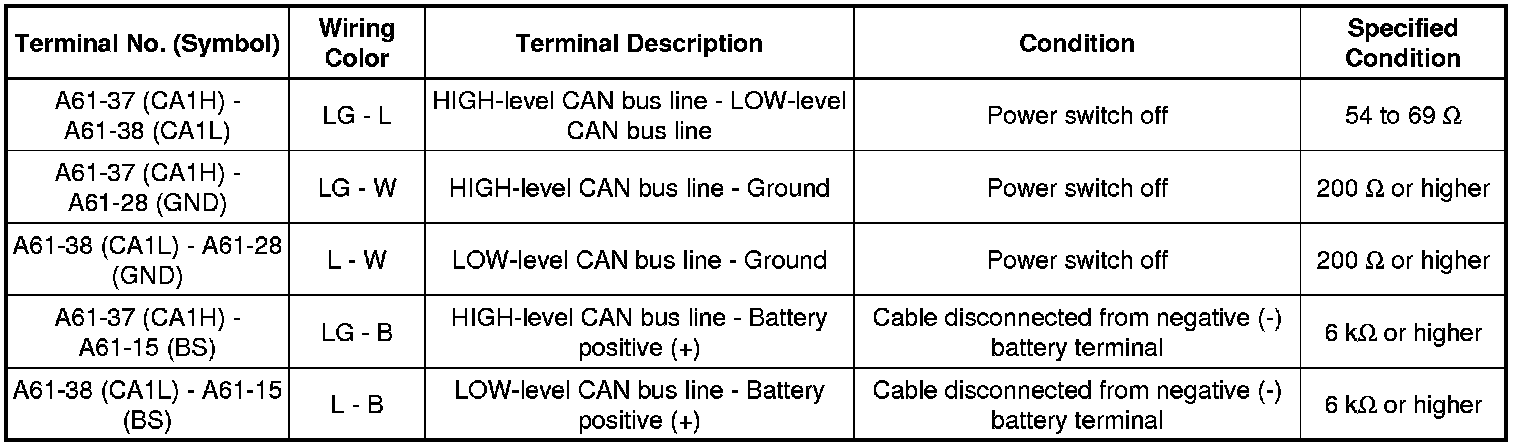

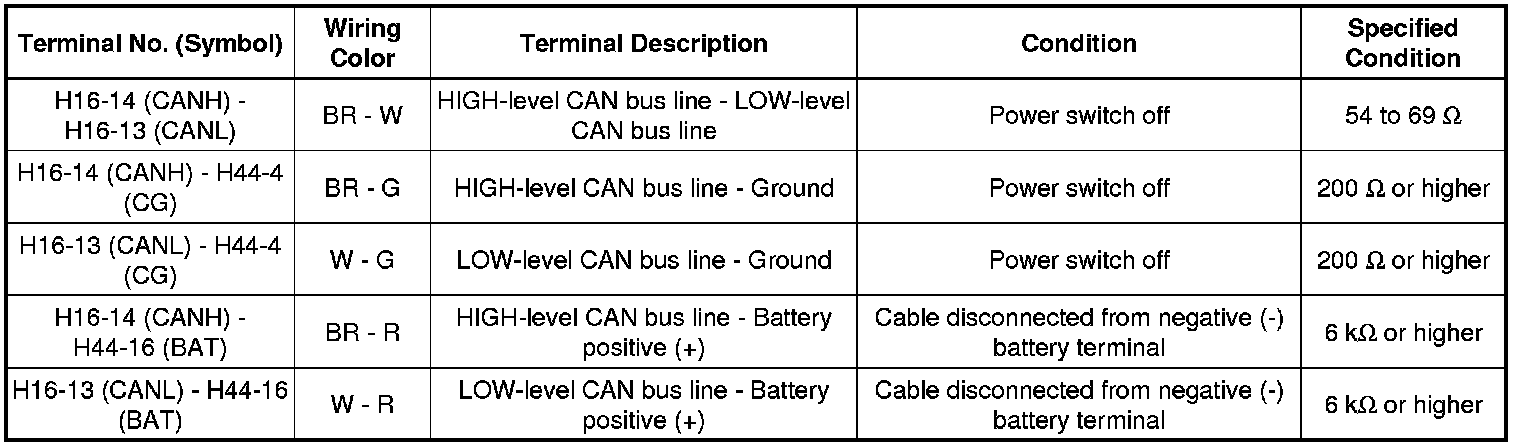

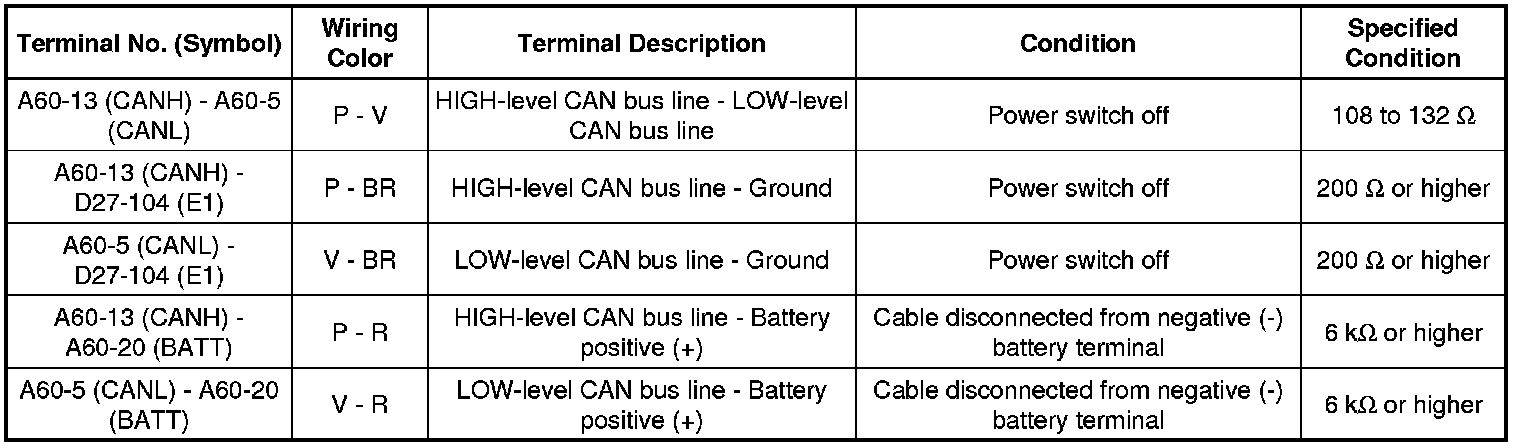

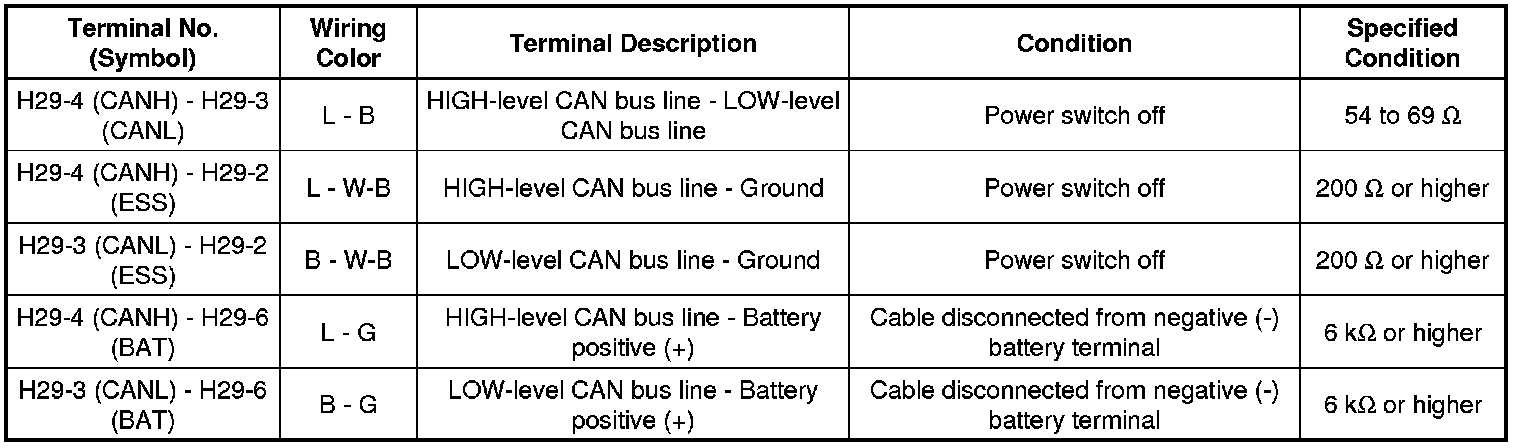

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
for V1 Bus Main Lines
for Power Management Bus Main Lines
9. COMBINATION METER ASSEMBLY
(a) Disconnect the combination meter assembly connector.
Text in Illustration
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
10. POWER MANAGEMENT CONTROL ECU
(a) V1 Bus Branch Lines
(1) Disconnect the power management control ECU connector.
Text in Illustration
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
V1 Bus Branch Lines
(b) V2 Bus Main Lines
(1) Disconnect the power management control ECU connector.
Text in Illustration
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
V2 Bus Main Lines
(c) Power Management Bus Main Lines
(1) Disconnect the power management control ECU connector.
Text in Illustration
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Power Management Bus Main Lines

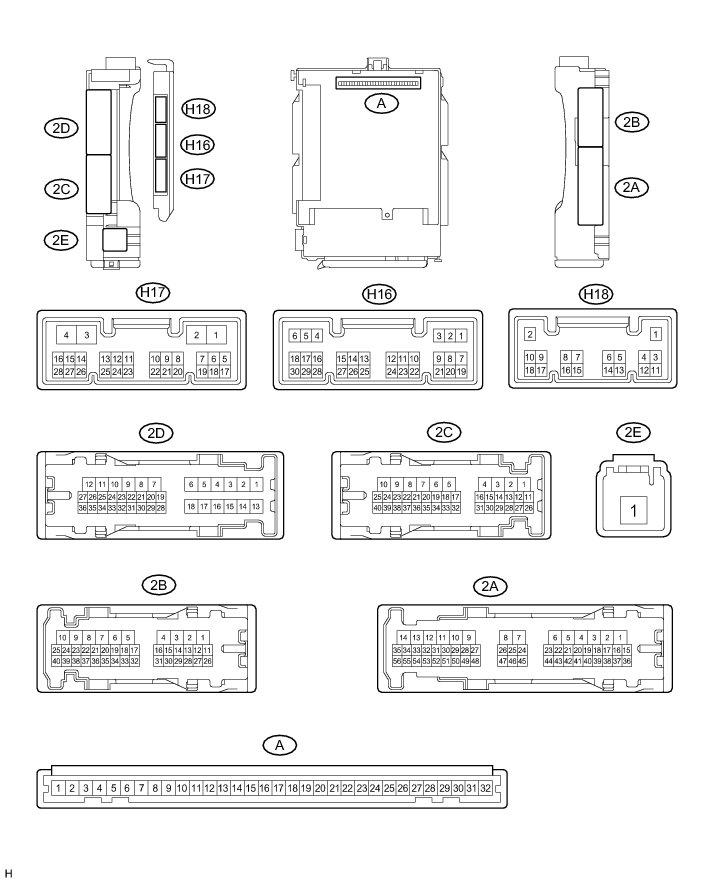

11. MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

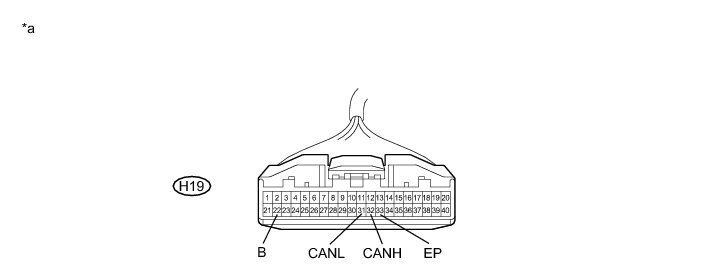

(a) Disconnect the main body ECU (multiplex network body ECU) connectors.

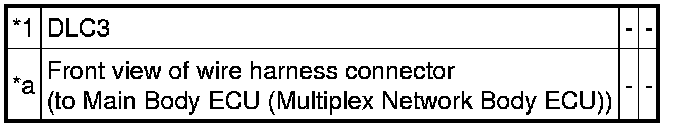

Text in Illustration

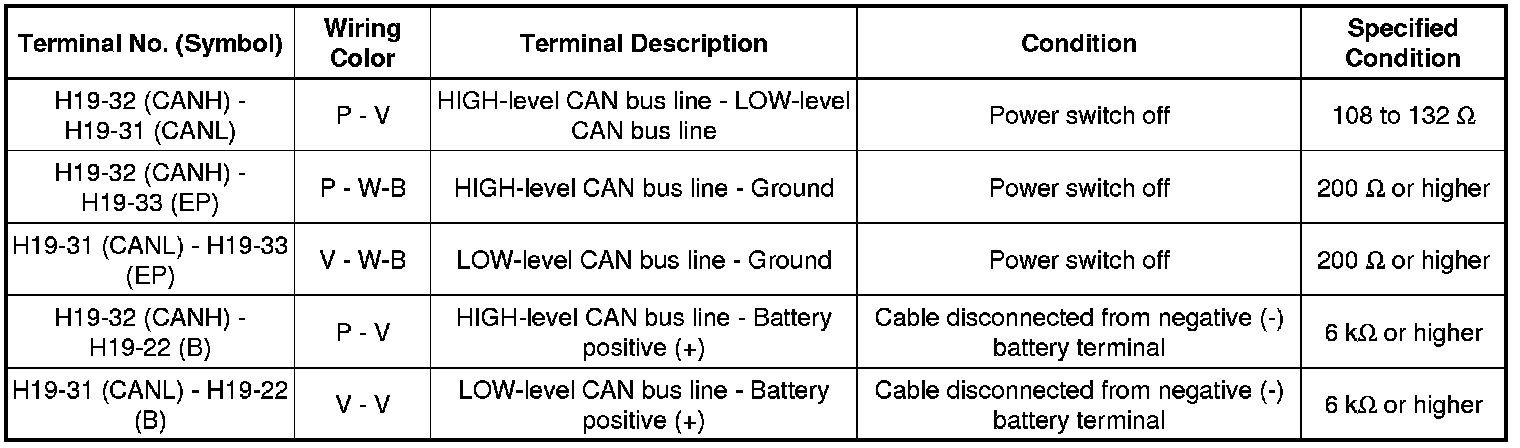

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
V1 Bus Branch Lines
CAN MS Bus Main Lines
12. SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)
(a) Disconnect the skid control ECU (brake booster with master cylinder assembly) connector.
Text in Illustration
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
V1 Bus Branch Lines
Power Management Bus Branch Lines

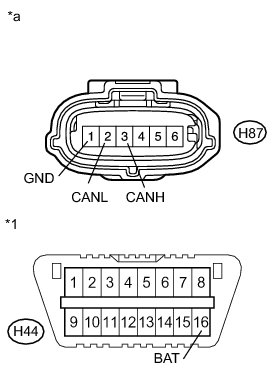

13. STEERING ANGLE SENSOR (SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY)
(a) Disconnect the steering angle sensor connector.
Text in Illustration

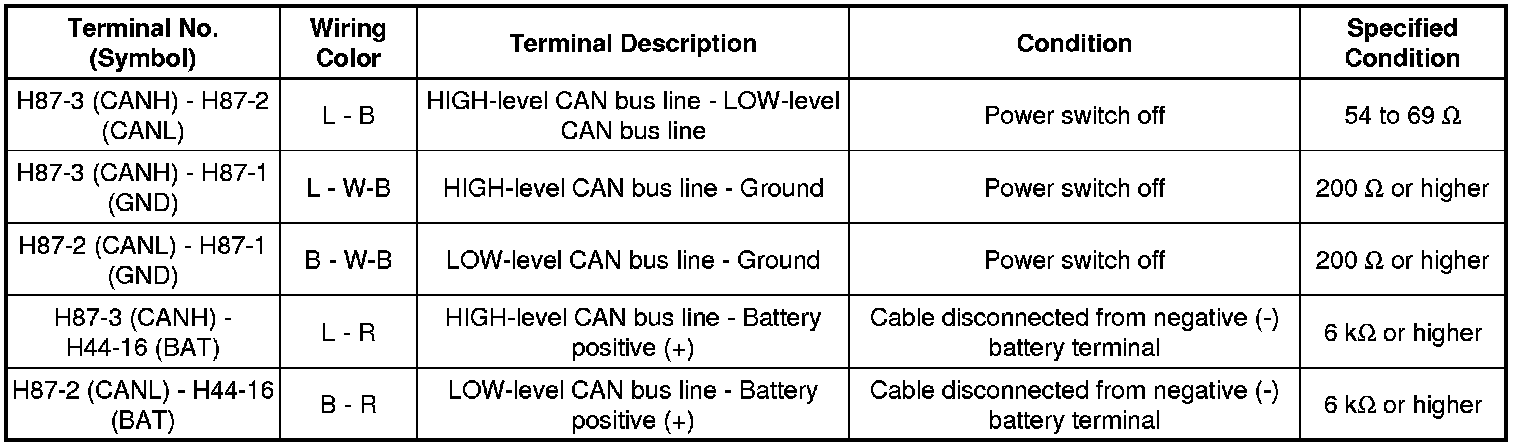

(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
14. YAW RATE AND ACCELERATION SENSOR
(a) Disconnect the yaw rate and acceleration sensor connector.
Text in Illustration
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
