System Diagram
NETWORKING: LIN COMMUNICATION SYSTEM: SYSTEM DIAGRAM

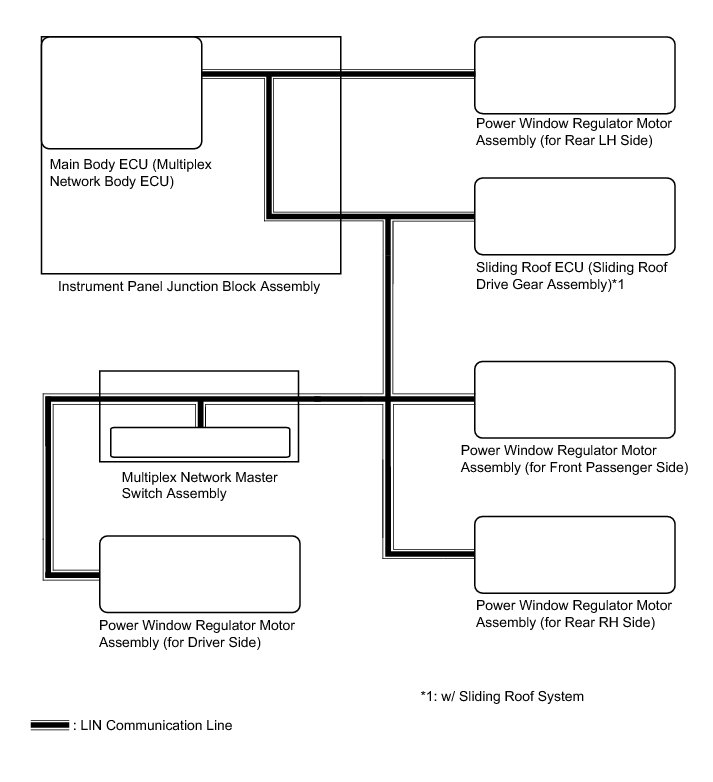

1. DOOR BUS LINES

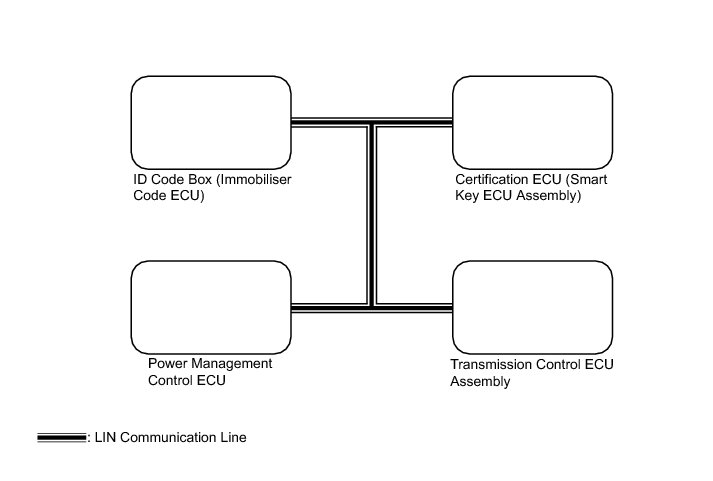

2. CERTIFICATION BUS LINES

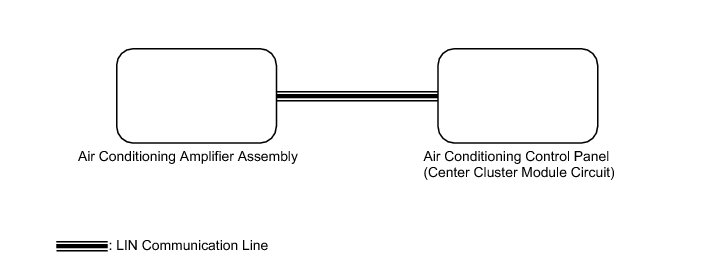

3. AIR CONDITIONING BUS LINES
NETWORKING: LIN COMMUNICATION SYSTEM: SYSTEM DIAGRAM
1. DOOR BUS LINES
2. CERTIFICATION BUS LINES
3. AIR CONDITIONING BUS LINES
