Home >> Lexus >> 2012 >> CT 200h L4-1.8L (2ZR-FXE) Hybrid >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Service and Repair >> Removal and Replacement >> Headlight Assembly (For LED Headlight) >> Components

Components

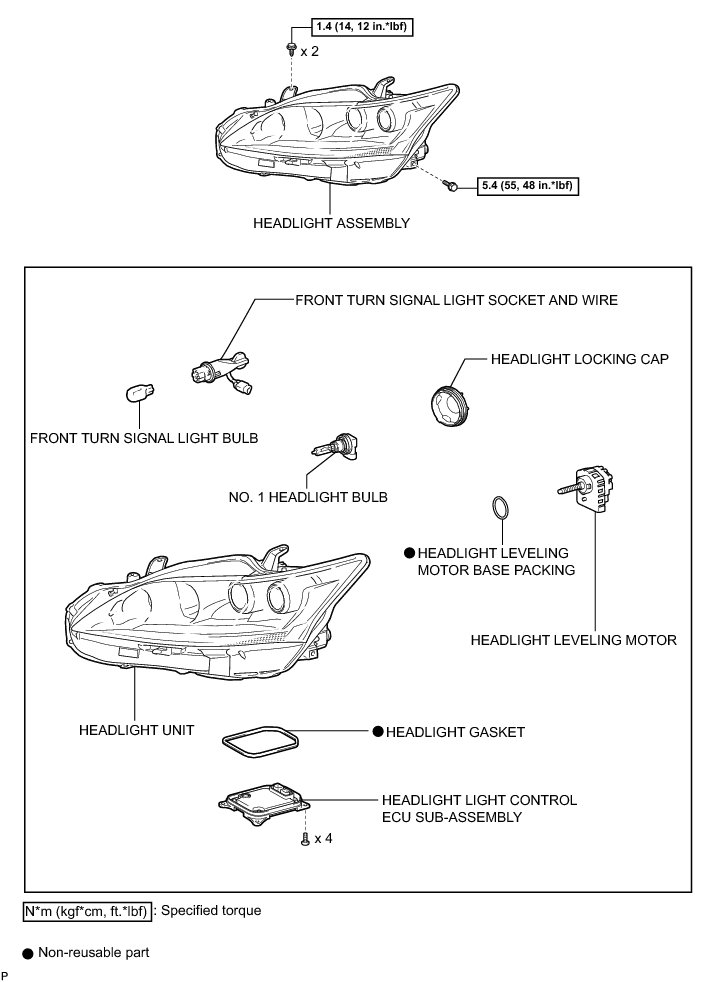

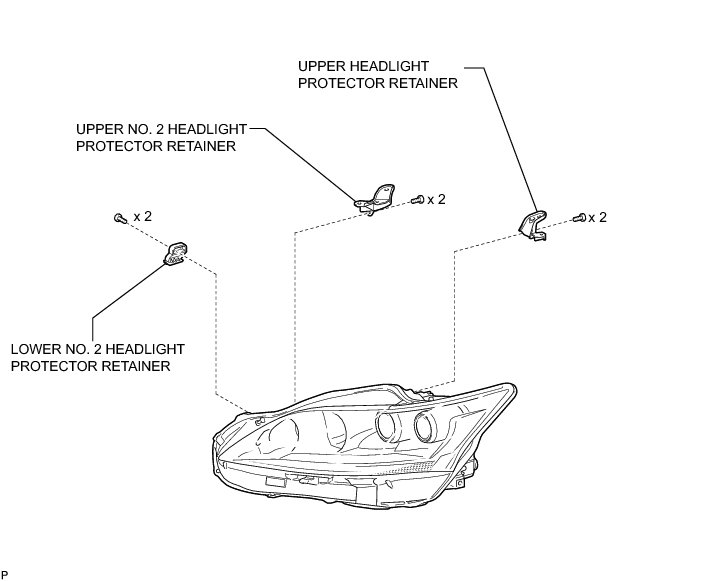

LIGHTING (EXT): HEADLIGHT ASSEMBLY (for LED Headlight): COMPONENTS
