System Description





LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DESCRIPTION

1. ILLUMINATED ENTRY SYSTEM

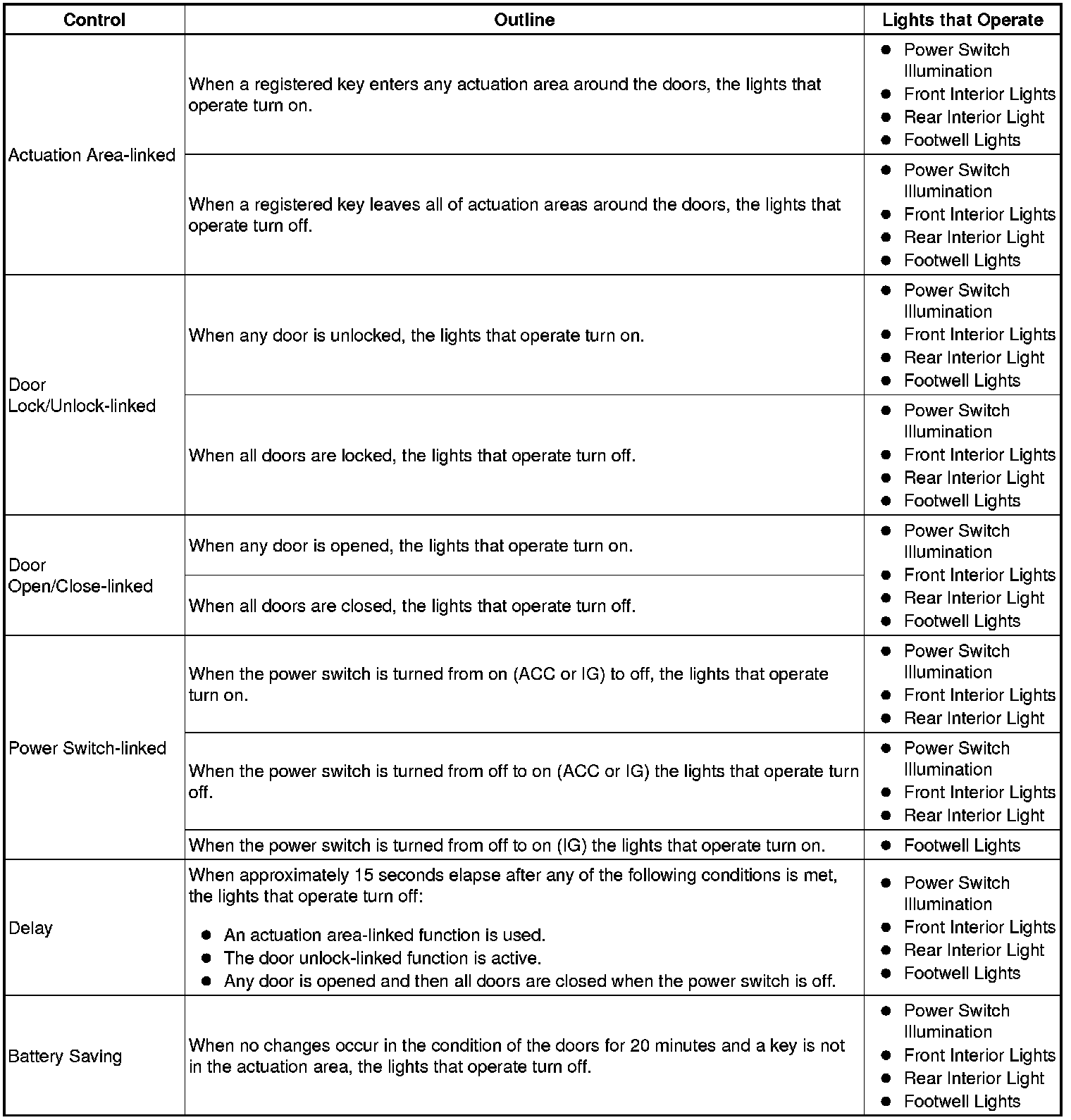

(a) The illuminated entry system has the following control functions:
