HV Relay Assembly

HYBRID / BATTERY CONTROL: HV RELAY ASSEMBLY: INSPECTION

1. INSPECT HYBRID BATTERY JUNCTION BLOCK ASSEMBLY

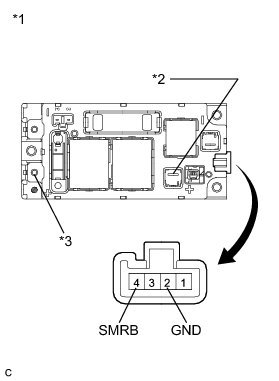

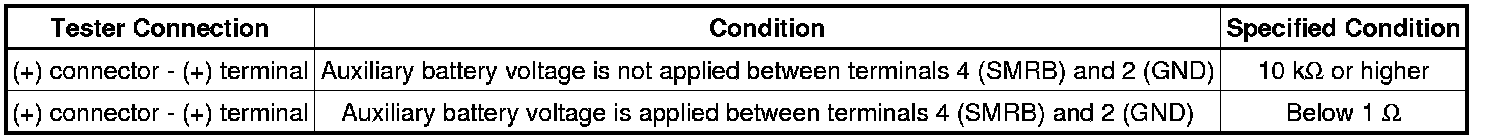

(a) Inspect SMRB

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

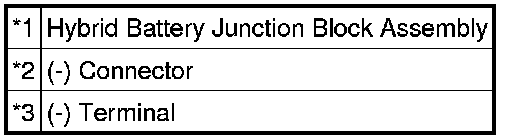

Text in Illustration





(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the hybrid battery junction block assembly.

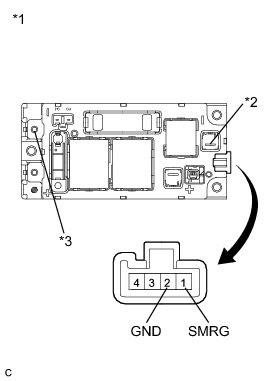

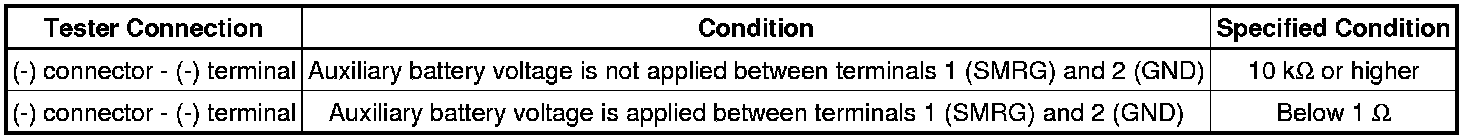

(b) Inspect SMRG

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the hybrid battery junction block assembly.

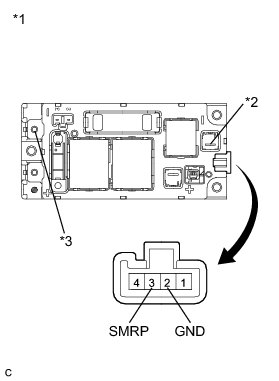

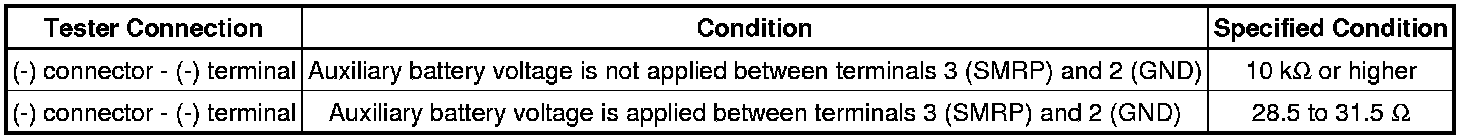

(c) Inspect SMRP and precharge resistor

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the hybrid battery junction block assembly.
