System Description

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/ Memory): SYSTEM DESCRIPTION

1. FRONT POWER SEAT CONTROL SYSTEM DESCRIPTION

* The driver seat is equipped with slide, reclining, lifter, front vertical, and lumbar support adjustment functions.

* The memory call function uses the key ID code of the key to memorize and recall the appropriate driving position for each individual who possesses a master key or sub key.

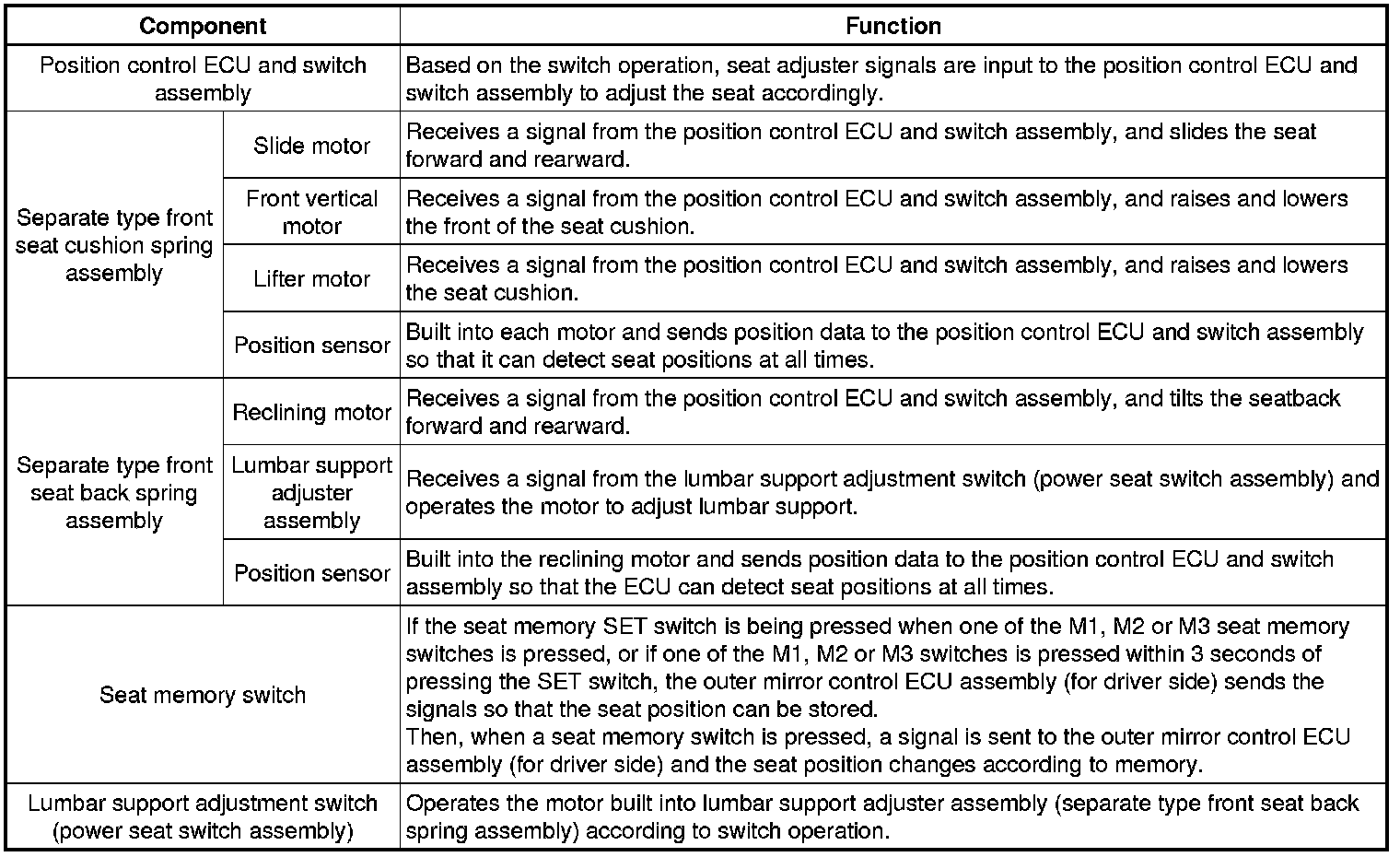

2. FUNCTION OF MAIN COMPONENT





3. SYSTEM OPERATION

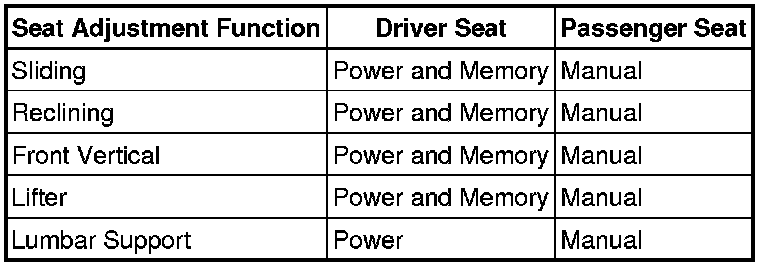

The front power seat functions which can be adjusted with the power seat motors and memorized are shown below.





The seat memory switch sends memory switch information to the outer mirror control ECU assembly (for driver side). Then the information is sent to the main body ECU (multiplex network body ECU) via CAN and then an instruction to memorize the seat position is sent to the position control ECU and switch assembly via CAN. As a result, the seat position is memorized.
