Power Mirror Control System (W/O Memory)

MIRROR (EXT): POWER MIRROR CONTROL SYSTEM (w/o Memory): TERMINALS OF ECU

1. CHECK A/C AMPLIFIER ASSEMBLY

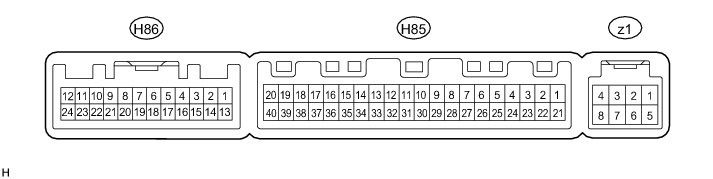

(a) Disconnect the F85 A/C amplifier assembly connector.

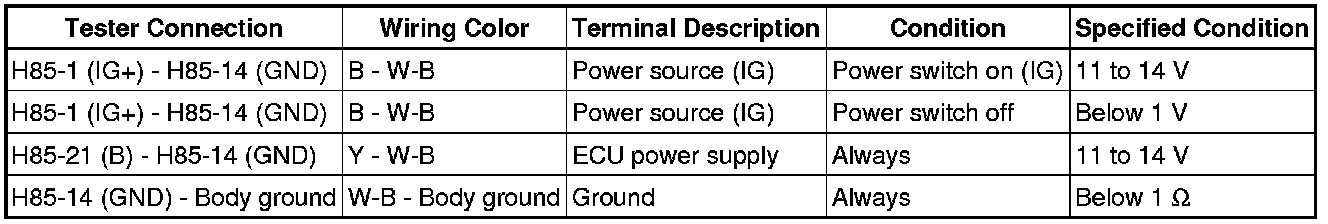

(b) Measure the voltage and resistance according to the value(s) in the table below.

HINT
Measure the values on the wire harness side with the connector disconnected.





If the result is not as specified, there may be a malfunction in the wire harness.

(c) Reconnect the H85 A/C amplifier assembly connector.

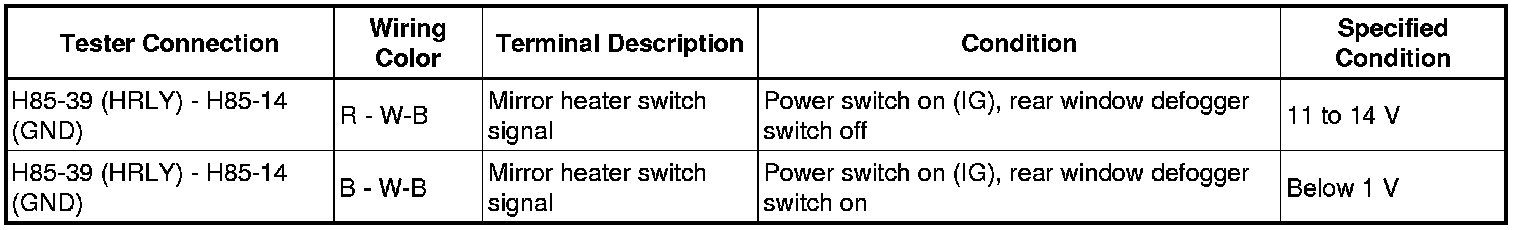

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the A/C amplifier assembly may have a malfunction.

2. CENTER CLUSTER MODULE CIRCUIT (AIR CONDITIONER CONTROL ASSEMBLY)

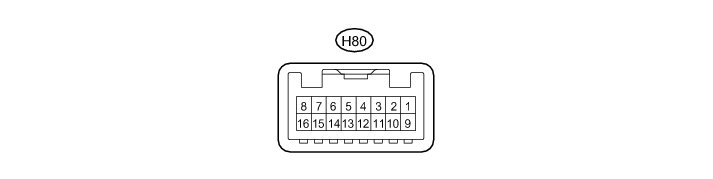

(a) Disconnect the H80 A/C control panel assembly connector.

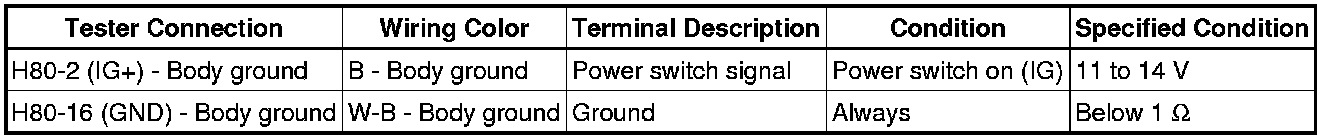

(b) Measure the voltage and resistance according to the value(s) in the table below.

HINT
Measure the values on the wire harness side with the connector disconnected.





If the result is not as specified, there may be a malfunction in the wire harness.

(c) Reconnect the H80 A/C control panel assembly connector.

(d) Check for pulses according to the value(s) in the table below.





If the result is not as specified, the A/C control panel assembly may have a malfunction.
