AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System): Speaker Circuit
- Speaker Circuit (Continued)

13. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY

(a) Resistance check

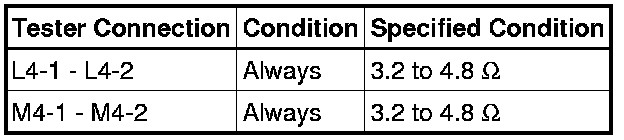

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE FRONT NO. 2 SPEAKER ASSEMBLY Removal
OK -- Continue to next step.

14. REPLACE RADIO SETTING CONDENSER

(a) Check that the malfunction disappears when a known good radio setting condenser is installed.

OK:

Malfunction disappears.

NG -- INSPECT REAR SPEAKER ASSEMBLY

OK -- END (RADIO SETTING CONDENSER WAS DEFECTIVE)

15. INSPECT REAR SPEAKER ASSEMBLY

(a) Resistance check

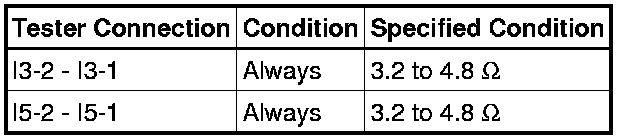

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





(b) Proceed to the next step based on the inspection result.

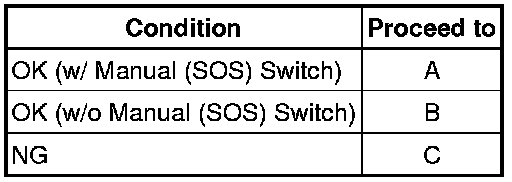

Result:





B -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

C -- REPLACE REAR SPEAKER ASSEMBLY Removal
A -- Continue to next step.

16. INSPECT DCM (TELEMATICS TRANSCEIVER)

(a) Resistance check





(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE DCM (TELEMATICS TRANSCEIVER) Removal

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
