CT 200h L4-1.8L (2ZR-FXE) Hybrid
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Locations
>>
Audio and Visual System (W/O Navigation System)
Audio and Visual System (W/O Navigation System)

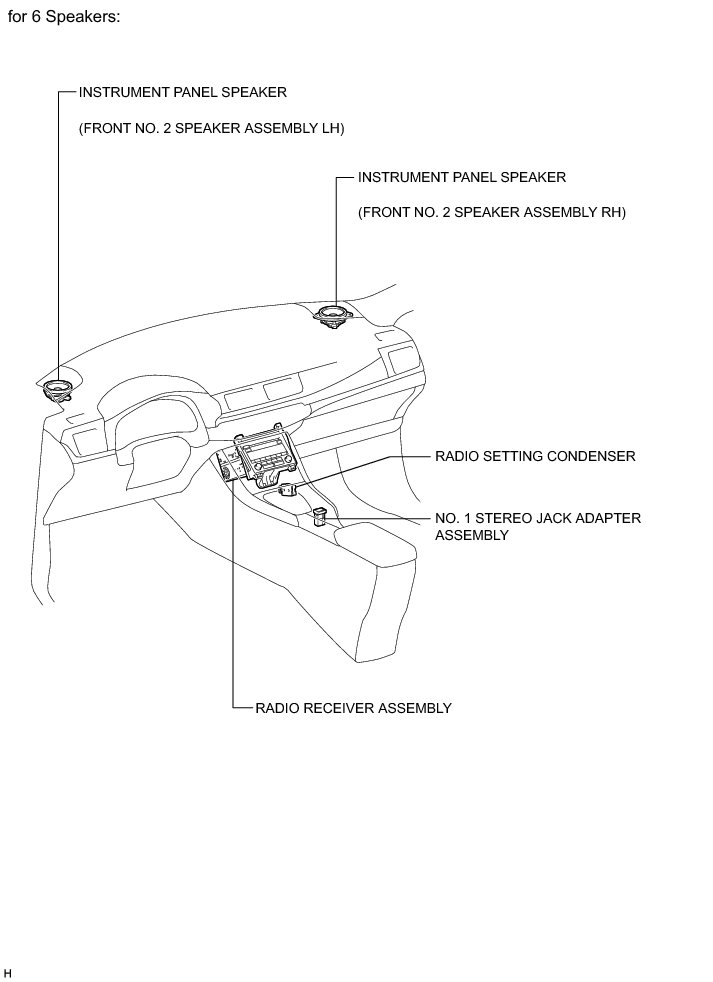

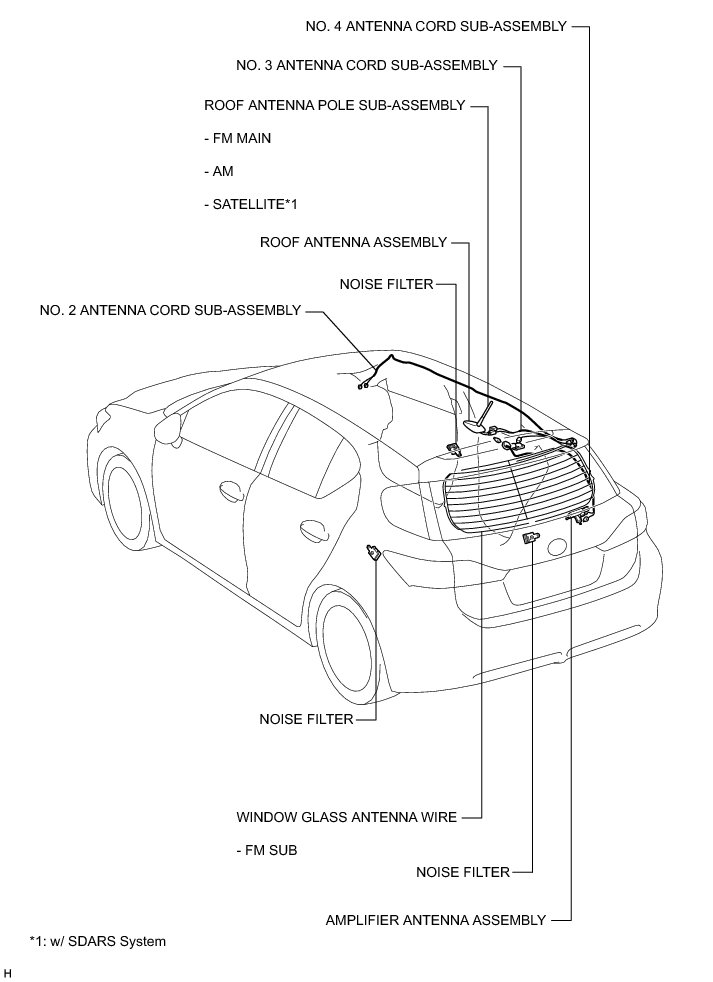

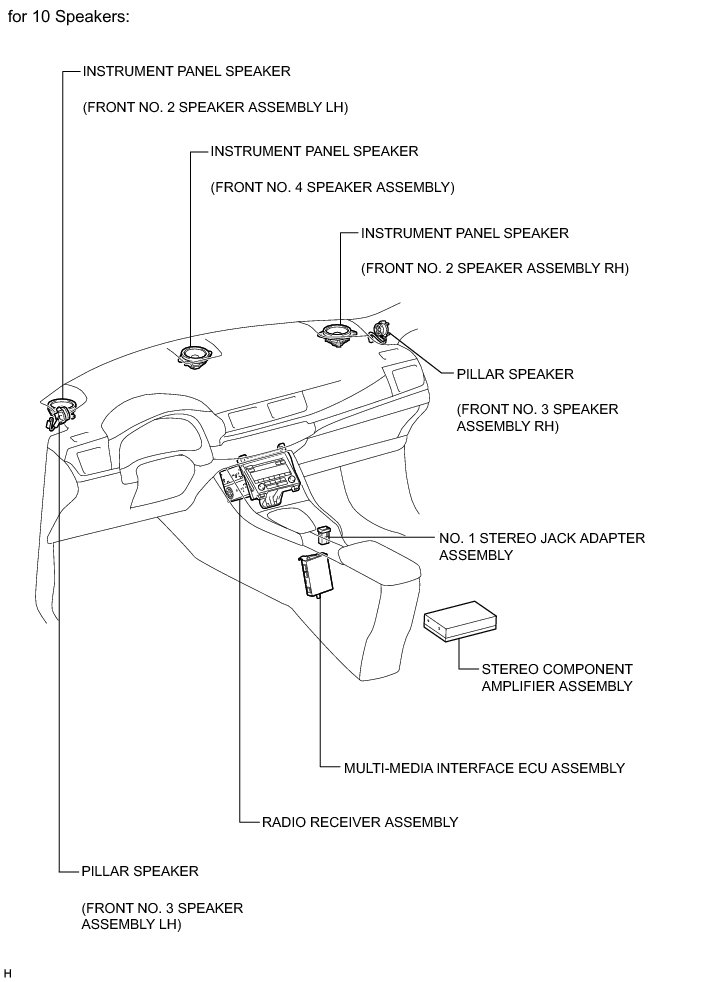

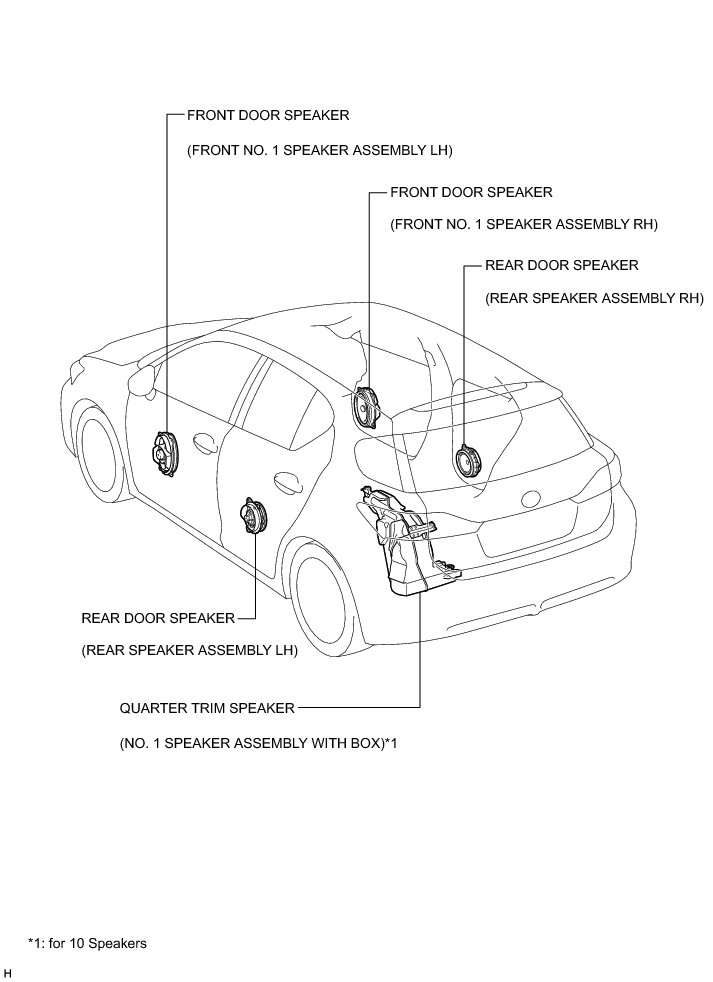

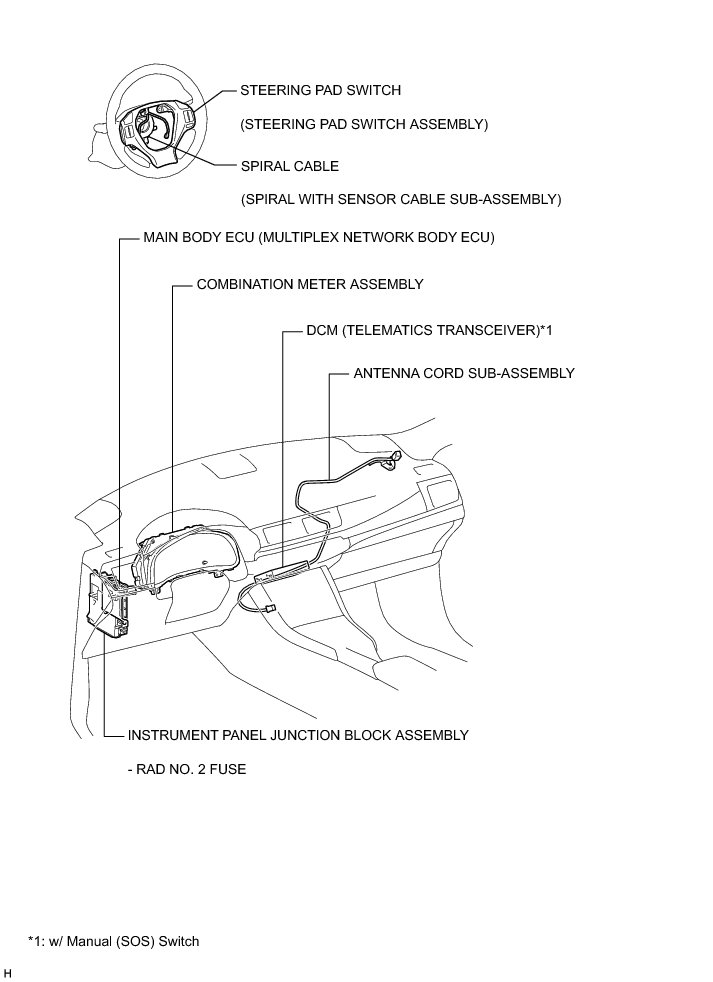

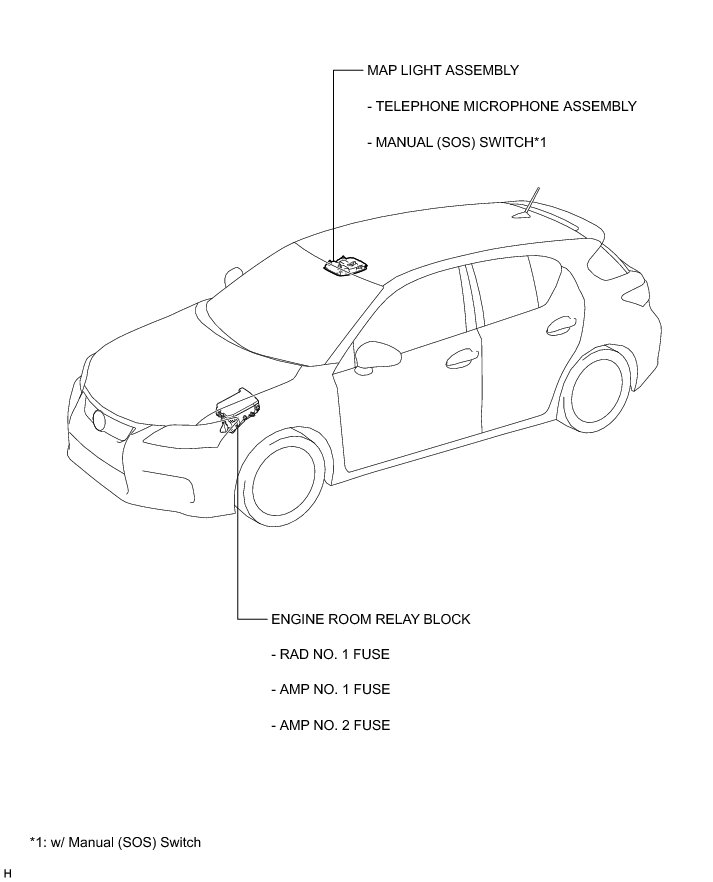

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System): PARTS LOCATION
