System Diagram
System Diagram
AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o
Navigation System
): SYSTEM DIAGRAM

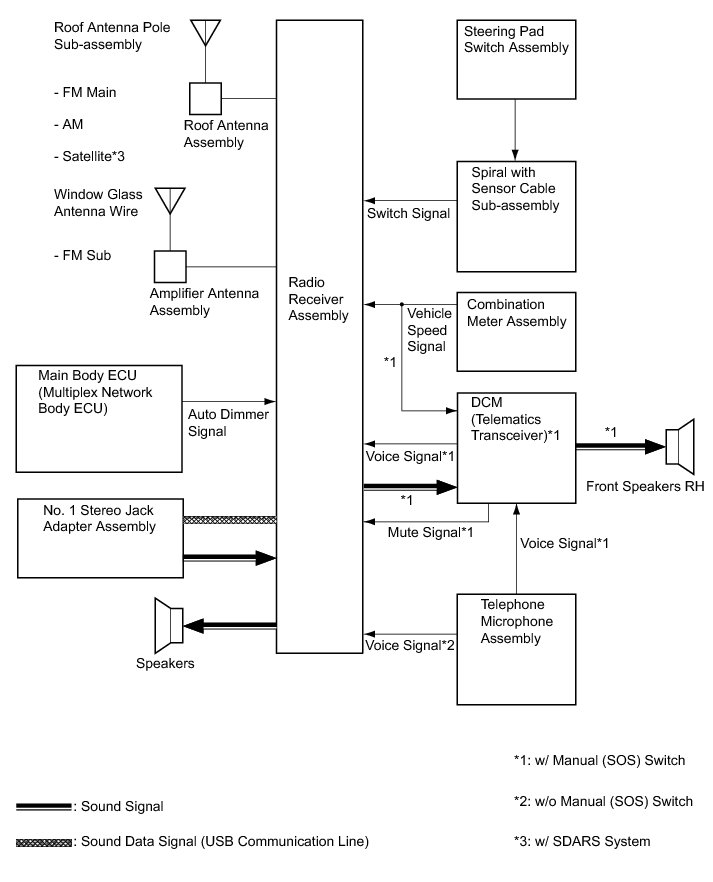

1.
for 6 Speakers

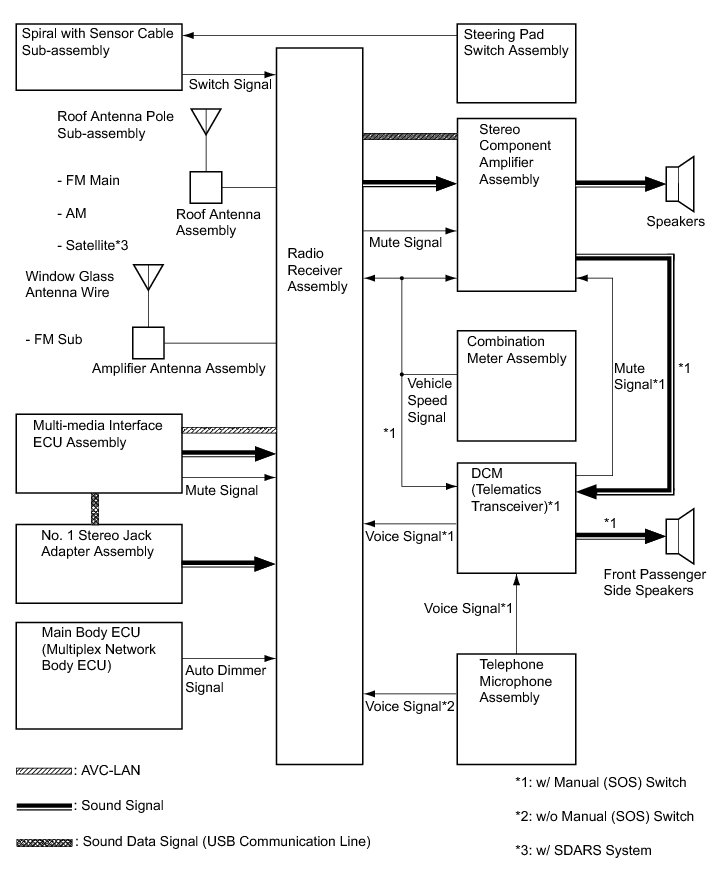

2.
for 10 Speakers
