Multi-Display Switch Circuit

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM (for HDD): Multi-display Switch Circuit
- Multi-display Switch Circuit

DESCRIPTION

The center instrument cluster finish panel assembly (multi-display) opens, closes and tilts the multi-display according to the operation of the "OPEN/CLOSE" and "TILT" switches of the multi-display switch.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT MULTI-DISPLAY SWITCH (MULTI-DISPLAY SWITCH)

(a) Disconnect the H89 multi-display switch connector.

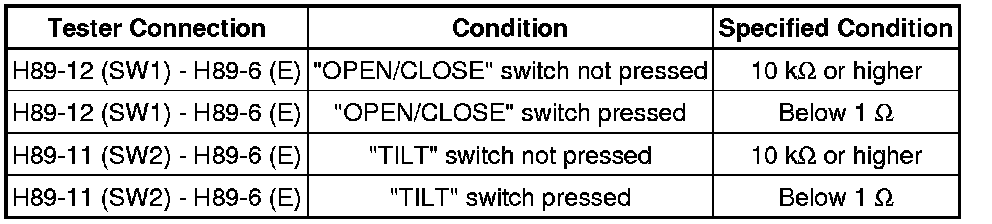

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE MULTI-DISPLAY SWITCH Removal
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR

(a) Disconnect the H89 multi-display switch connector.

(b) Disconnect the H21 display module board connector.

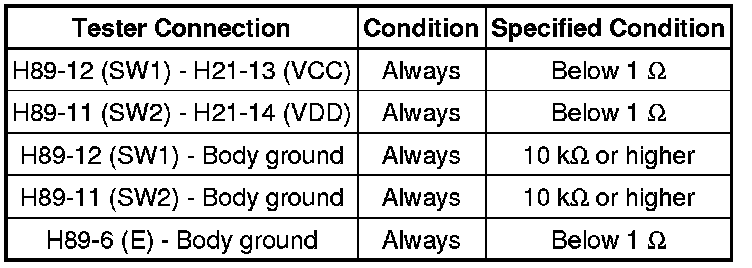

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
