Ultrasonic Sensor (For Rear Side)

PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Rear Side): INSPECTION

1. INSPECT NO. 1 ULTRASONIC SENSOR

(a) Measure the resistance according to the value(s) in the table below.

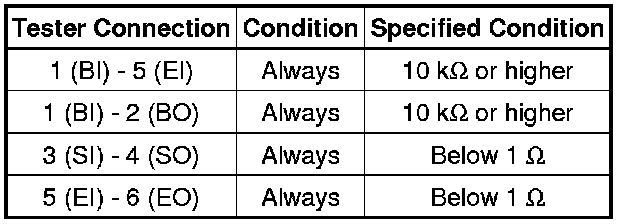

Standard Resistance:





Test in Illustration





If the result is not as specified, replace the No. 1 ultrasonic sensor.
