System Diagram





PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: SYSTEM DIAGRAM

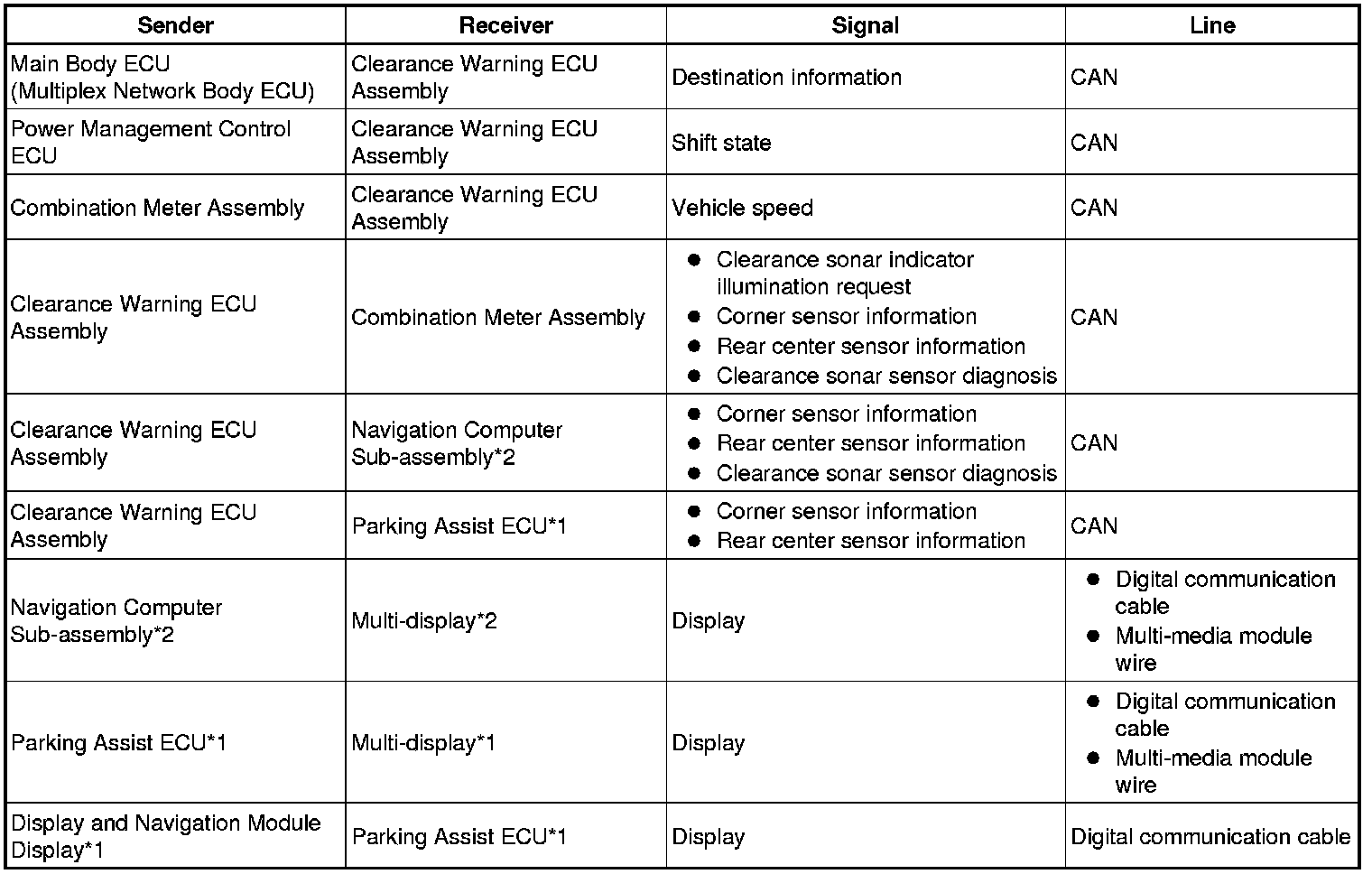

Communication Table





* *1: w/ Navigation System (for DVD)

* *2: w/ Navigation System (for HDD)
