U029A





HYBRID / BATTERY CONTROL: HYBRID BATTERY SYSTEM: U029A-123: Lost Communication with Hybrid Battery Pack Sensor Module

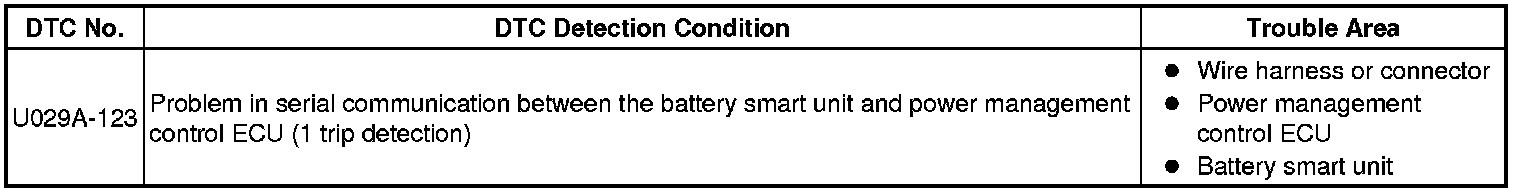

U029A-123 - Lost Communication with Hybrid Battery Pack Sensor Module

DESCRIPTION

The battery smart unit detects the HV battery conditions (voltage, current, and temperature) and battery cooling fan voltage, and sends the detected signals to the power management control ECU via serial communication.





MONITOR DESCRIPTION

If the power management control ECU (HV CPU) detects problem with serial communication with the battery smart unit, it will illuminate the MIL and set a DTC.

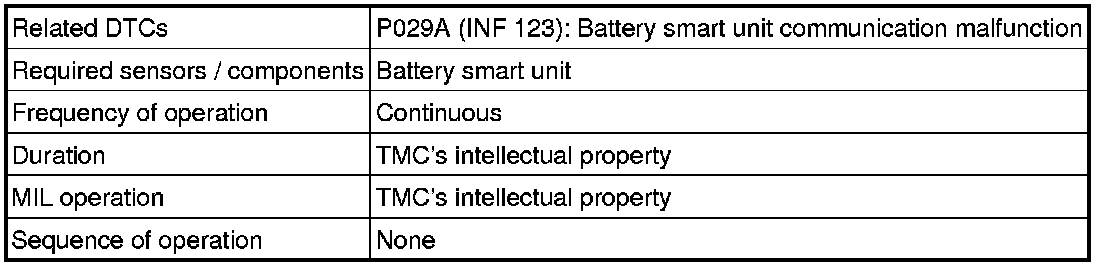

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the power switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4. Turn the power switch off.

5. Turn the power switch on (READY) and turn the Techstream on.

6. Perform a universal trip.

7. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

8. Check that permanent DTCs are cleared.

HINT
* If a permanent DTC is output, the system is malfunctioning.
* If no permanent DTC is output, the system is normal.

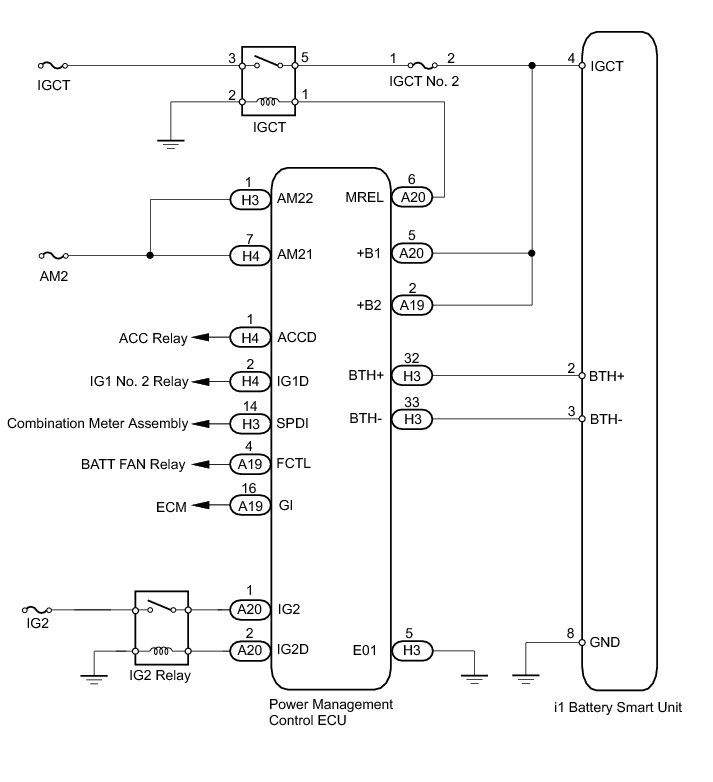

WIRING DIAGRAM





INSPECTION PROCEDURE

CAUTION:
* If the battery cover is removed, install it before turning the power switch on (IG) or (READY). If the power switch is turned on (IG) or (READY) with the battery cover removed, U029A-123 may be set.
* Before inspecting the high-voltage system, take safety precautions to prevent electrical shocks, such as wearing insulated gloves and removing the service plug grip. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
* After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work Hybrid Battery System.
HINT
At least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.

PROCEDURE

1. CHECK DTC OUTPUT (HV)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Check for DTCs Hybrid Battery System.

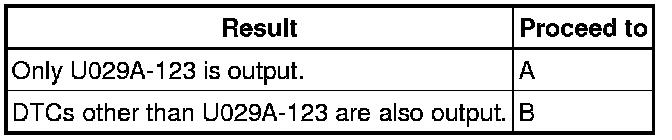

Result:





(e) Disconnect the Techstream from the DLC3.

B -- GO TO DTC CHART Hybrid Battery System
A -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - BATTERY SMART UNIT)

CAUTION:
Be sure to wear insulated gloves.

(a) Disconnect the cable from the negative (-) battery terminal of the auxiliary battery.

(b) Check that the service plug grip is not installed.

NOTICE:
After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

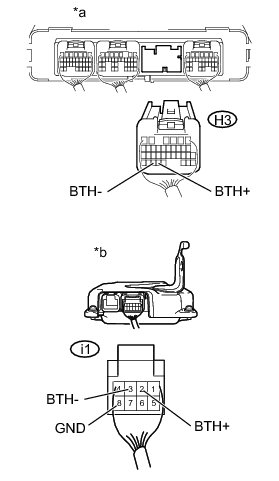

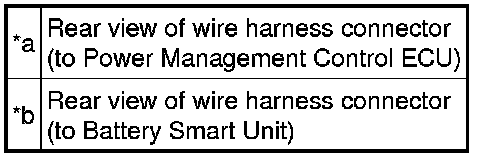

(c) Disconnect connector H3 from the power management control ECU Removal.

(d) Disconnect connector i1 from the battery smart unit.

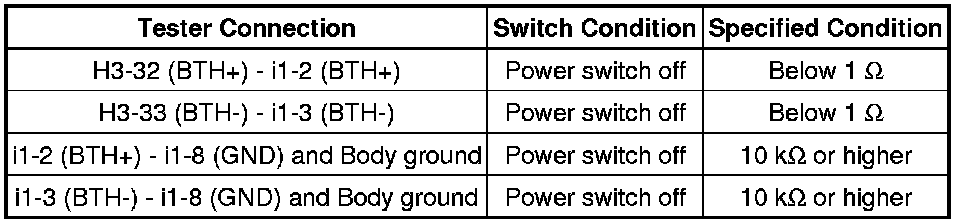

(e) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration

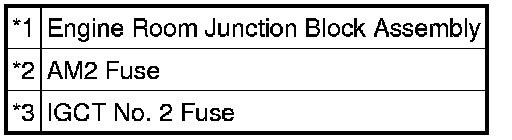

(f) Remove the IGCT No. 2 fuse and AM2 fuse from the engine room junction block assembly.

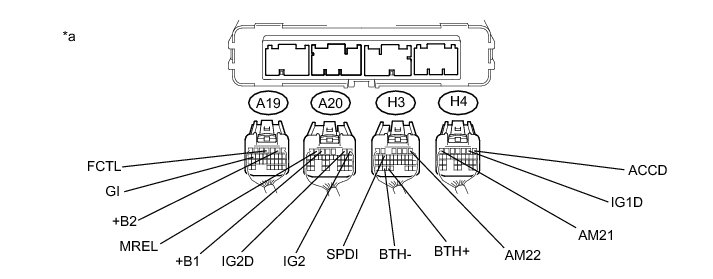

Text in Illustration





(g) Disconnect all connectors from the power management control ECU.

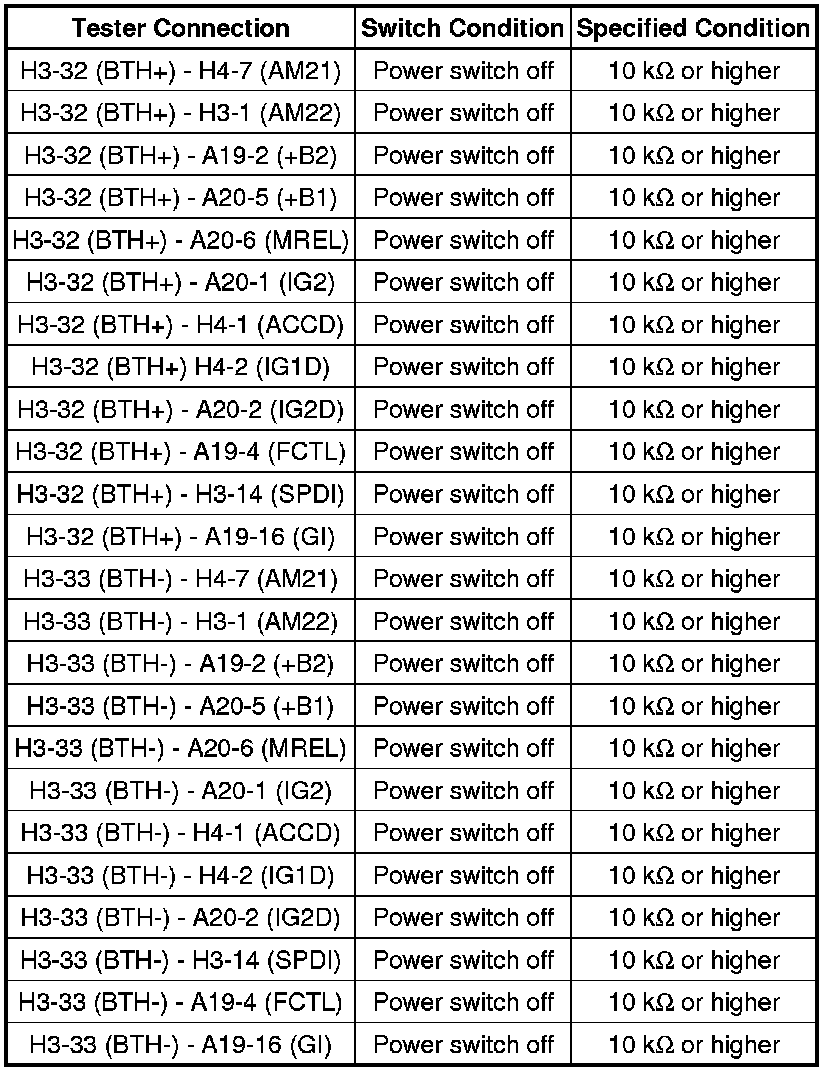

(h) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





NOTICE:
When taking a measurement with a tester, do not apply excessive force to the tester probe to avoid damaging the holder.

(i) Connect the cable to the negative (-) battery terminal of the auxiliary battery.

(j) Connect the battery smart unit connector.

(k) Connect the power management control ECU connectors Installation.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK POWER MANAGEMENT CONTROL ECU

CAUTION:
Be sure to wear insulated gloves.

(a) Check that the service plug grip is not installed.

NOTICE:
After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

(b) Disconnect connector i1 from the battery smart unit.





(c) Turn the power switch on (IG).

(d) Measure the voltage according to the value(s) in the table below.

NOTICE:
Turning the power switch on (IG) with the service plug grip removed causes an interlock switch system DTC to be set. Use the Techstream to clear the DTCs Hybrid Battery System.





Standard Voltage:





Text in Illustration





(e) Turn the power switch off.

(f) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





HINT
Resistance becomes 2.0 kOhms or less when there is a short circuit in the power management control ECU.

(g) Connect the battery smart unit connector.

NG -- REPLACE POWER MANAGEMENT CONTROL ECU Components

OK -- REPLACE BATTERY SMART UNIT Components
