P3147-242

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P3147-240, P3147-242: Transmission Malfunction

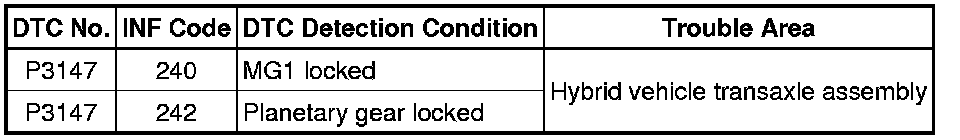

P3147-242 - Transmission Malfunction

DESCRIPTION

Refer to the description for P3147-239 P3147-239.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT (HYBRID CONTROL)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Check if DTCs are output.

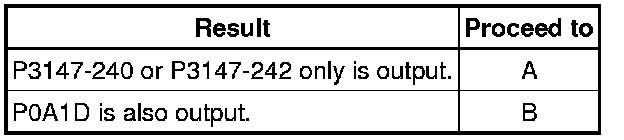

Result:





(e) Turn the power switch off.

B -- GO TO DTC CHART (P0A1D) Hybrid Control System

A -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY Components
