HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P2532-772: Ignition Switch Run Position Circuit High
P2532-772 - Ignition Switch Run Position Circuit High

DESCRIPTION

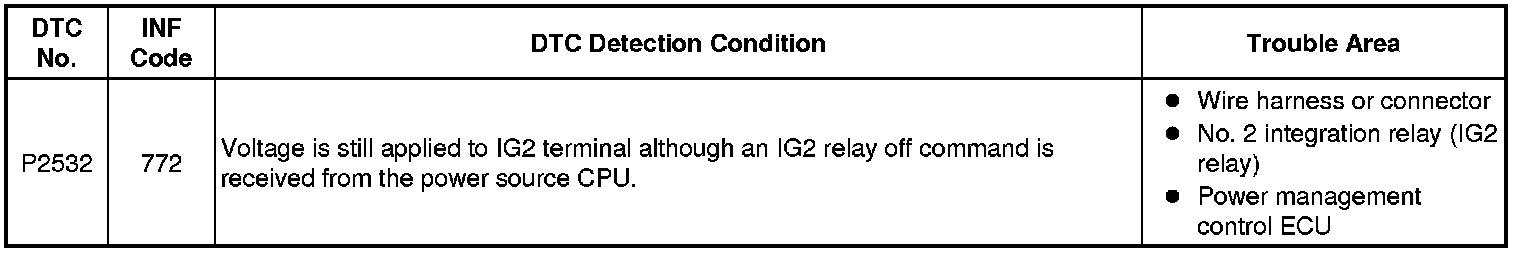

The power source and HV CPU processors and their functions are integrated into the power management control ECU (HV CPU). The power source CPU and HV CPU use CAN communication to communicate with each other inside the power management control ECU. The power source CPU controls the opening and closing of the IG2 relay. The HV CPU detects that the IG2 relay is stuck ON (closed) based on relay operation information received from the power source CPU via CAN communication.





HINT
If DTC P2532-772 is stored, the vehicle will turn off.

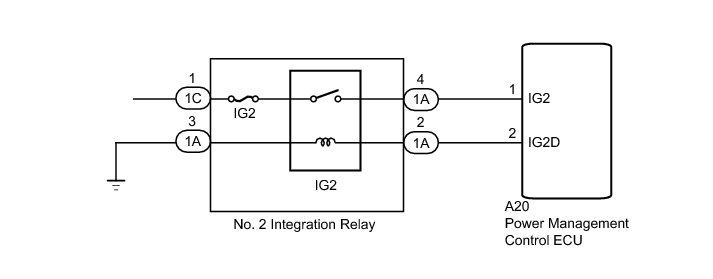

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (+B SHORT)

(a) Disconnect connector A20 from the power management control ECU.





Text in Illustration

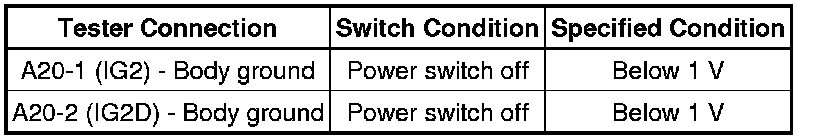

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Result





(c) Connect the power management control ECU connector.

B -- REPLACE POWER MANAGEMENT CONTROL ECU Components
A -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - NO. 2 INTEGRATION RELAY)

(a) Disconnect connector A20 from the power management control ECU.

(b) Remove the No. 2 integration relay from the engine room junction block assembly.





Text in Illustration





(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(d) Install the No. 2 integration relay.

(e) Connect the power management control ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE NO.2 INTEGRATION RELAY
