P0AFC-150

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P0AFC-150: Hybrid Battery Pack Sensor Module
P0AFC-150 - Hybrid Battery Pack Sensor Module

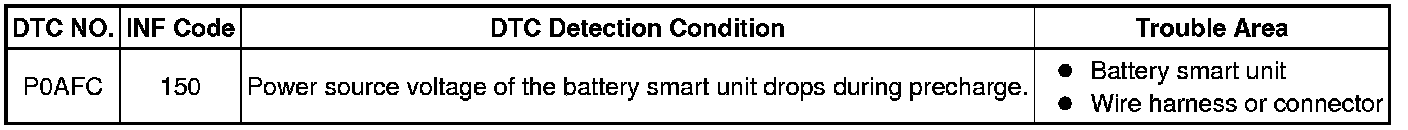

DESCRIPTION

The power management control ECU alerts the driver and performs fail-safe control based on error signals sent from the battery smart unit.





MONITOR DESCRIPTION

When the power management control ECU (HV CPU) detects a low power supply voltage for the battery smart unit while pre-charge is occurring, it determines that there is a malfunction in the battery smart unit circuit. When the power management control ECU (HV CPU) detects a malfunction, it will illuminate the MIL and set a DTC.

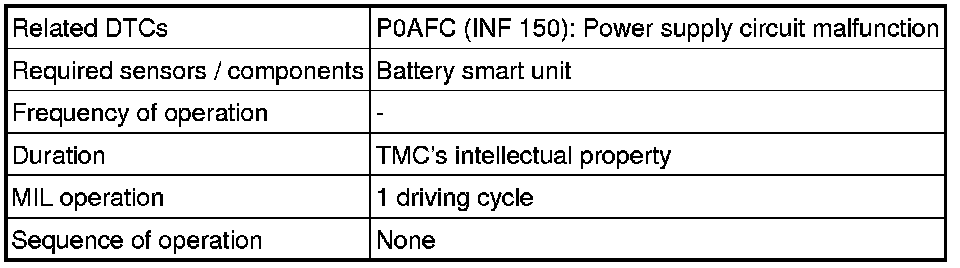

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the power switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4. Turn the power switch off.

5. Turn the power switch on (READY).

6. Wait for 10 seconds or more.

7. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

8. Check that permanent DTCs are cleared.

9. If the permanent DTCs are not cleared, perform the universal trip, and then check for permanent DTCs again.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

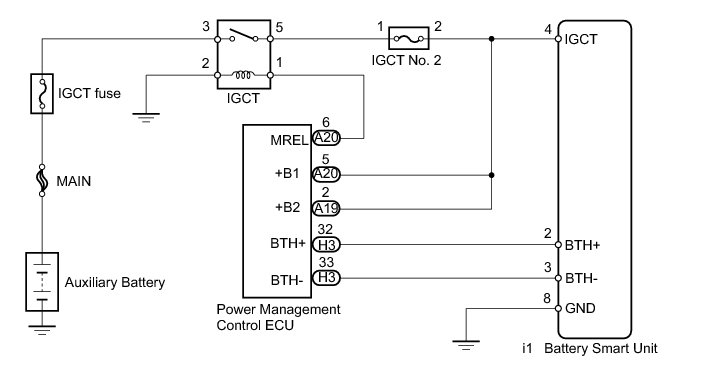

WIRING DIAGRAM





INSPECTION PROCEDURE

CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work Hybrid Control System: Precaution.
HINT
- Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.
- After completing repairs, restart the system (turn the power switch on (READY)) and recheck for DTCs Hybrid Control System.

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (IGCT VOLTAGE) P0AFC-123

NG -- CHECK HARNESS AND CONNECTOR (GND - BODY GROUND)

OK -- REPLACE BATTERY SMART UNIT Components

2. CHECK HARNESS AND CONNECTOR (GND - BODY GROUND) P0AFC-123

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (IGCT NO. 2 FUSE - BATTERY SMART UNIT)
