P0AC0-817

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P0AC0-817: Hybrid Battery Pack Current Sensor Circuit Range / Performance
P0AC0-817 - Hybrid Battery Pack Current Sensor Circuit Range / Performance

DESCRIPTION

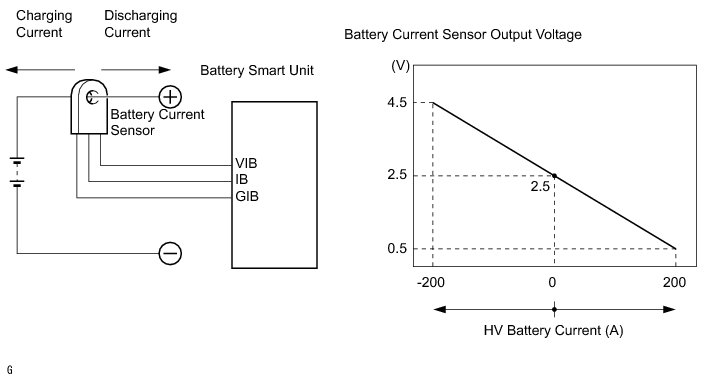

- The battery current sensor, which is located in the HV battery junction block on the positive side of the HV battery, detects the amperage that flows to and from the HV battery. The battery smart unit receives a voltage of between 0 and 5 V that is in proportion to the amperage flowing in the cable. This voltage goes into the IB terminal from the battery current sensor. A battery current sensor output voltage below 2.5 V indicates that the HV battery is being discharged, and a voltage above 2.5 V indicates that the HV battery is being charged. The power management control ECU determines the amount of either charge or discharge amperage that is being received by the HV battery assembly based on the signals that are input to terminal IB of the battery smart unit from the battery current sensor. The power management control ECU also calculates the SOC (state of charge) of the HV battery based on the accumulated amperage.









MONITOR DESCRIPTION

The power management control ECU (HV CPU) detects malfunctions of the battery current sensor by monitoring MG1 and MG2 torque. If the power management control ECU (HV CPU) detects a battery current sensor malfunction, the power management control ECU (HV CPU) will illuminate the MIL and set a DTC.

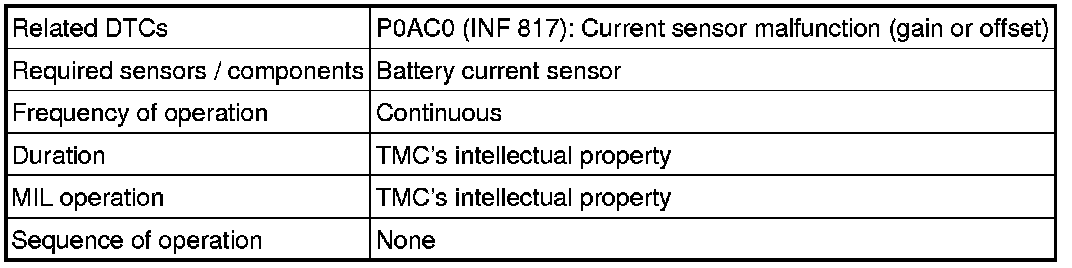

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the power switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4. Turn the power switch off.

5. Turn the power switch on (READY) and turn the Techstream on.

6. Perform the universal trip.

7. Enter the following menus: Powertrain / HV / Trouble Codes.

8. Check that permanent DTCs are cleared.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT (HV)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Check if DTCs are output.

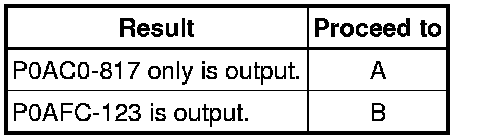

Result:





(e) Turn the power switch off.

B -- GO TO DTC CHART (P0AFC-123) P0AFC-123
A -- Continue to next step.

2. REPLACE HYBRID BATTERY JUNCTION BLOCK ASSEMBLY

(a) Replace the hybrid battery junction block assembly Components.

NEXT -- Continue to next step.

3. CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Read and record the DTCs and freeze frame data.

(e) Clear DTCs and freeze frame data.

(f) Turn the power switch off.

NEXT -- Continue to next step.

4. PERFORM ROAD TEST

(a) Perform a road test.

NEXT -- Continue to next step.

5. CHECK DTC OUTPUT (HV)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

(d) Check if DTCs are output.

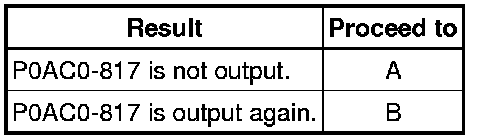

Result:





(e) Turn the power switch off.

B -- REPLACE BATTERY SMART UNIT Components

A -- COMPLETED
