HYBRID / BATTERY CONTROL: HYBRID BATTERY SYSTEM: P0A95-123: High Voltage Fuse
P0A95-123 - High Voltage Fuse

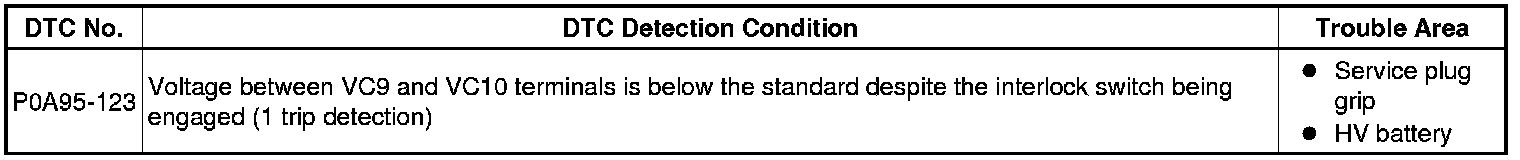

DESCRIPTION

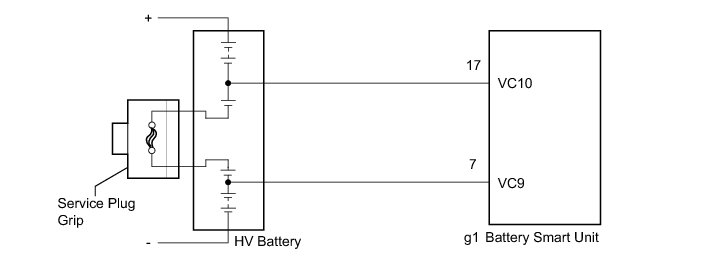

WIRING DIAGRAM





INSPECTION PROCEDURE

CAUTION:
- Before inspecting the high-voltage system, take safety precautions to prevent electrical shocks, such as wearing insulated gloves and removing the service plug grip. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work Hybrid Battery System.
HINT
At least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

NOTICE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.

PROCEDURE

1. CHECK DTC OUTPUT (HV) P0A7F

B -- GO TO DTC CHART
A -- Continue to next step.

2. CHECK SERVICE PLUG GRIP

(a) Turn the power switch off.

(b) Check that the service plug grip is not installed.

NOTICE:
After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.

(c) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





NG -- REPLACE SERVICE PLUG GRIP Components

OK -- REPLACE HV BATTERY Components
