P0A37

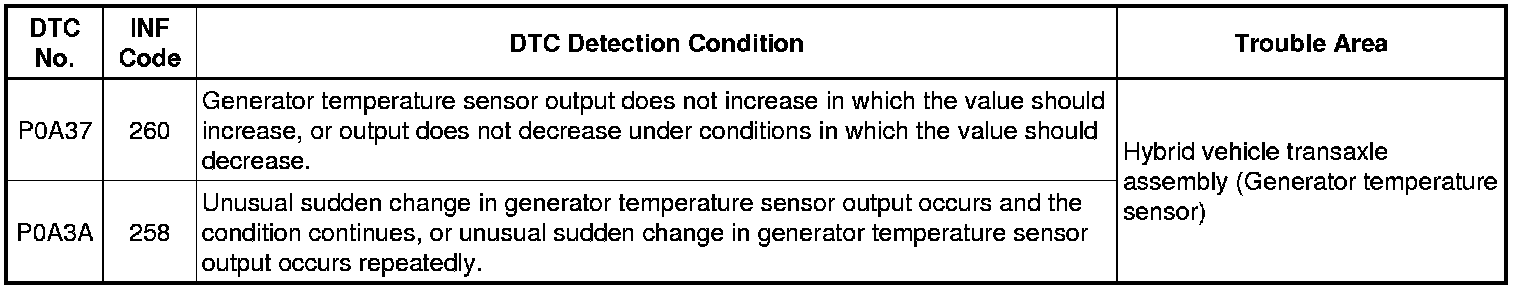

HYBRID / BATTERY CONTROL: HYBRID CONTROL SYSTEM: P0A37-260, P0A3A-258: Generator Temperature Sensor Circuit Range / Performance
P0A3A-258 - Generator Temperature Sensor Circuit Intermittent

DESCRIPTION

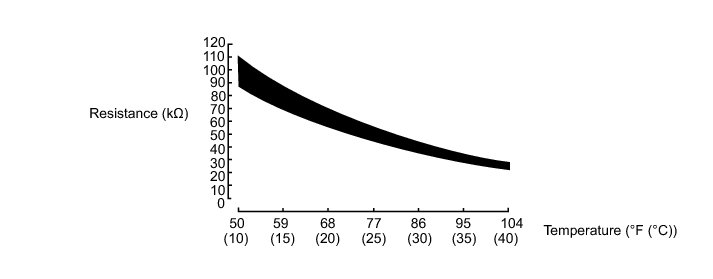

The resistance of the thermistor built into the generator temperature sensor changes in accordance with changes in MG1 temperature. The lower the MG1 temperature, the higher the thermistor resistance. Conversely, the higher the temperature, the lower the resistance.









INSPECTION PROCEDURE

PROCEDURE

1. REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY

(a) Replace the hybrid vehicle transaxle assembly Components.

HINT
The generator temperature sensor is not available separately. If it requires replacement, replace the hybrid vehicle transaxle assembly.

NEXT -- COMPLETED
