2ZR-FXE ENGINE CONTROL: SFI SYSTEM: P0171, P0172: System Too Lean (Bank 1)
P0172 - System Too Rich (Bank 1)
DESCRIPTION
The fuel trim is related to the feedback compensation value, not to the basic injection duration. The fuel trim consists of both the short-term and long-term fuel trim.
The short-term fuel trim is fuel compensation that is used to constantly maintain the air fuel ratio at stoichiometric levels. The signal from the air fuel ratio sensor indicates whether the air fuel ratio is rich or lean compared to the stoichiometric ratio. This triggers a reduction in the fuel injection volume if the air fuel ratio is rich and an increase in the fuel injection volume if it is lean.
Factors such as individual engine differences, wear over time and changes in operating environment cause short-term fuel trim to vary from the central value. The long-term fuel trim, which controls overall fuel compensation, compensates for long-term deviations in the fuel trim from the central value caused by the short-term fuel trim compensation.

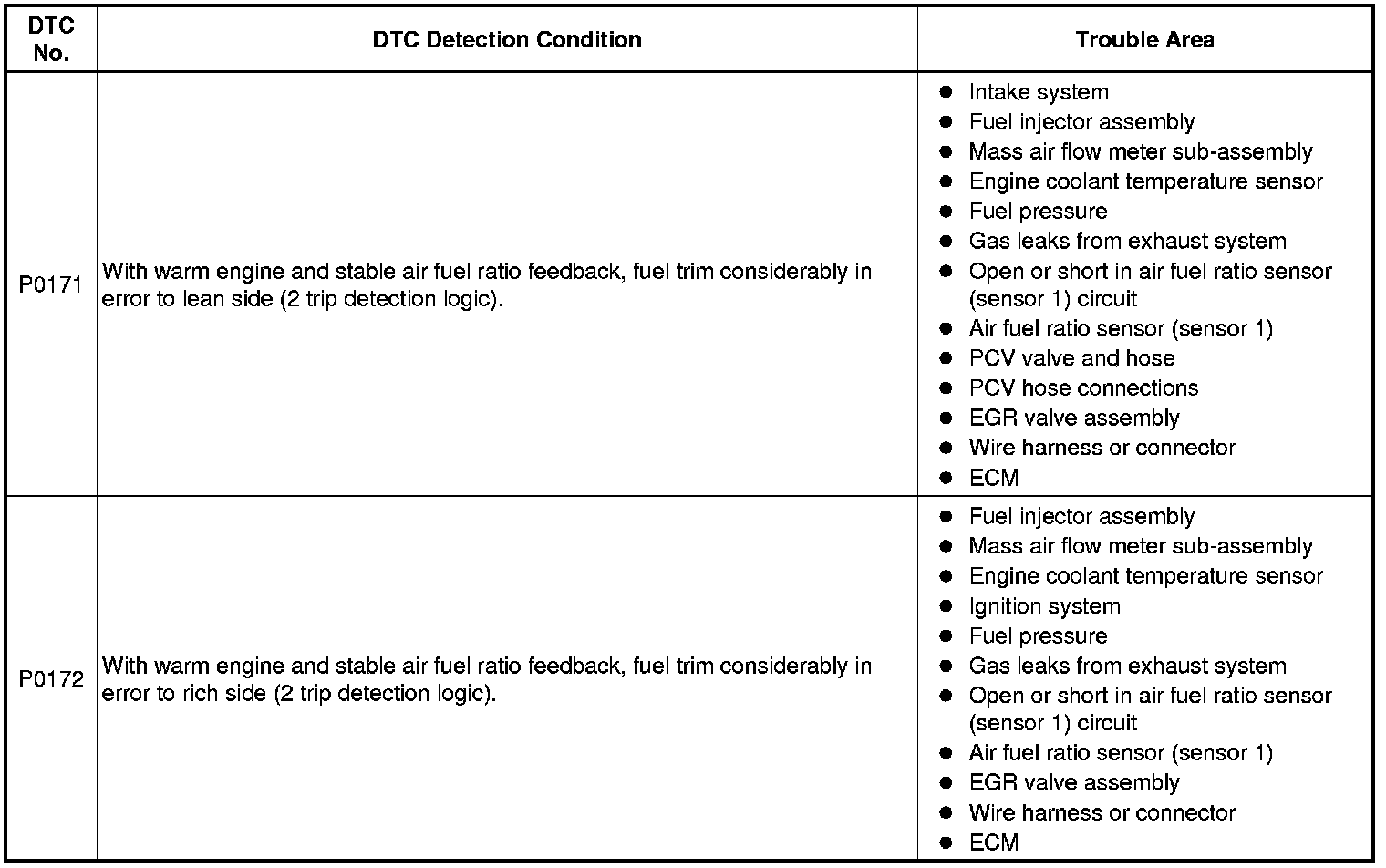

If both the short-term and long-term fuel trim are lean or rich beyond predetermined values, it is interpreted as a malfunction, and the ECM illuminates the MIL and stores a DTC.
HINT
- When DTC P0171 is stored, the actual air fuel ratio is on the lean side. When DTC P0172 is stored, the actual air fuel ratio is on the rich side.
- If the vehicle runs out of fuel, the air fuel ratio is lean and DTC P0171 may be stored. The MIL is then illuminated.
- When the total of the short-term and long-term fuel trim values is within the malfunction threshold (and the engine coolant temperature is higher than 75°C (167°F)), the system is functioning normally.
MONITOR DESCRIPTION
Under closed-loop fuel control, fuel injection volumes that deviate from those estimated by the ECM cause changes in the long-term fuel trim compensation value. The long-term fuel trim is adjusted when there are persistent deviations in the short-term fuel trim values. Deviations from the ECM's estimated fuel injection volumes also affect the average fuel trim learning value, which is a combination of the average short-term fuel trim (fuel feedback compensation value) and the average long-term fuel trim (learning value of the air fuel ratio). If the average fuel trim learning value exceeds the malfunction thresholds, the ECM interprets this as a fault in the fuel system and stores a DTC.
Example:

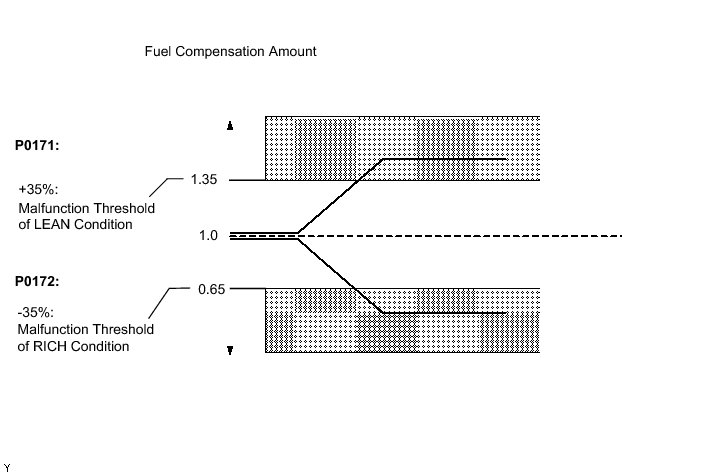

- When the average fuel trim learning value is +35% or more, or -35% or less, the ECM interprets this as a fuel system malfunction.

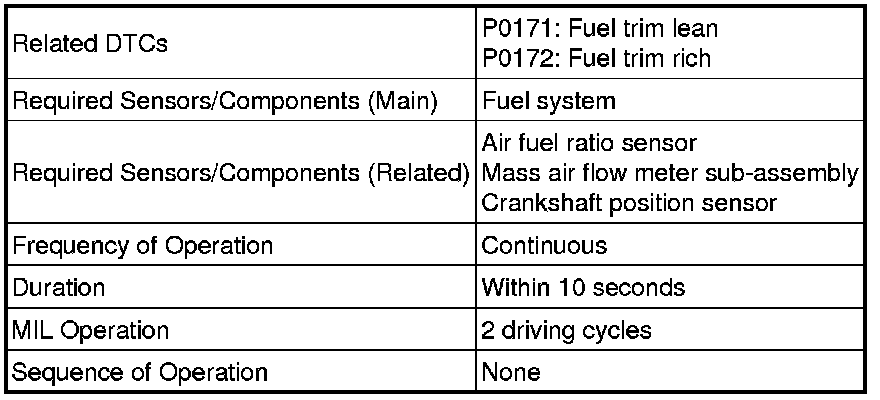

MONITOR STRATEGY

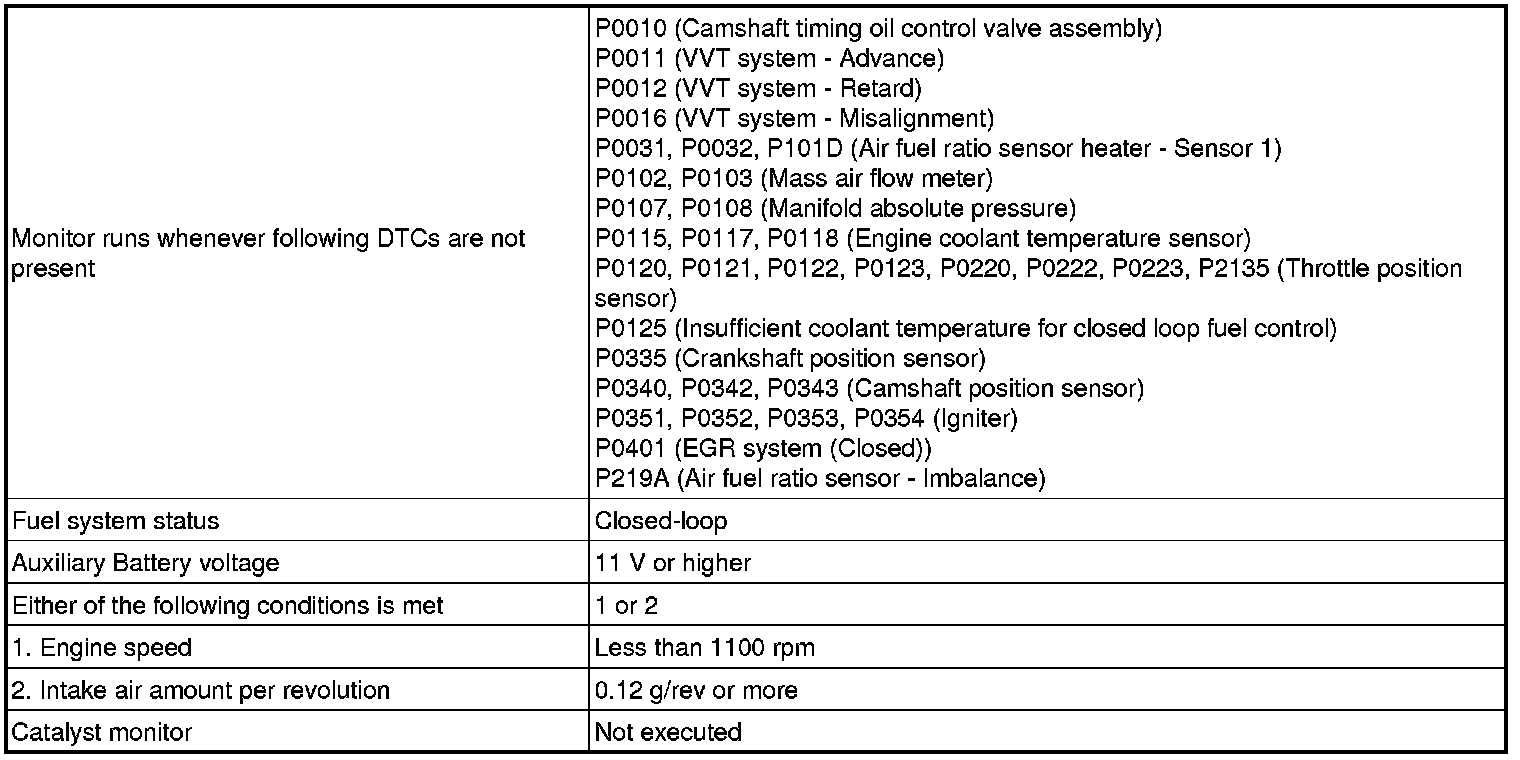

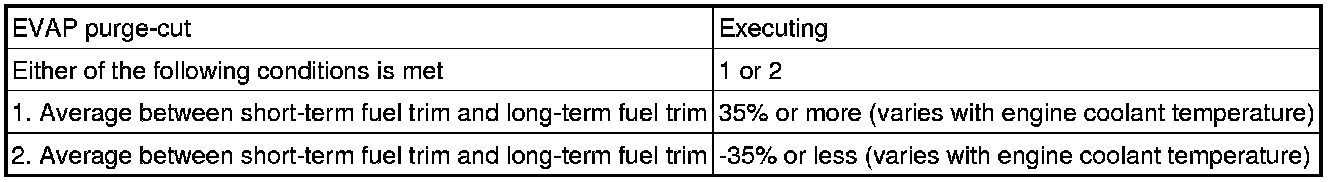

TYPICAL ENABLING CONDITIONS
Fuel Trim
TYPICAL MALFUNCTION THRESHOLDS
Fuel Trim

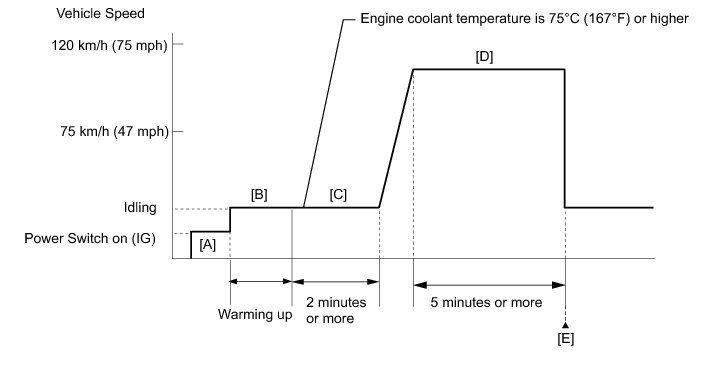

CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.
4. Turn the power switch off and wait for 30 seconds.
5. Turn the power switch on (IG) and turn the Techstream on [A].
6. Put the engine in inspection mode (maintenance mode) Component Tests and General Diagnostics.
7. Start the engine and warm it up (until the engine coolant temperature is 75°C (167°F) or higher) with all the accessories switched off [B].
8. With the engine warmed up, idle the engine for 2 minutes or more [C].
9. Drive the vehicle at between 75 and 120 km/h (47 and 75 mph) for 5 minutes or more [D].
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
10. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [E].
11. Read the pending DTCs.
HINT
If a pending DTC is output, the system is malfunctioning.
12. If no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
WIRING DIAGRAM
Air fuel ratio sensor circuit: Refer to DTC P2195 P2195.
Mass air flow meter circuit: Refer to DTC P0102 P0102.
INSPECTION PROCEDURE
HINT
Malfunctioning areas can be identified by performing the Control the Injection Volume function provided in the Active Test. The Control the Injection Volume function can help to determine whether the air fuel ratio sensor, heated oxygen sensor and other potential trouble areas are malfunctioning.
The following instructions describe how to conduct the Control the Injection Volume operation using the Techstream.
1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Put the engine in inspection mode (maintenance mode) Component Tests and General Diagnostics.
4. Start the engine.
5. Warm up the engine at an engine speed of 2500 rpm for approximately 90 seconds.
HINT
During charging control, the engine speed is set at idle. Therefore, the engine speed does not increase when depressing the accelerator pedal. In this case, warm up the engine after charging control has completed.
6. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume / Data List / Gas AF Control / AFS Voltage B1S1 and O2S B1S2.
7. Perform the Active Test operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).
8. Monitor the voltage outputs of the air fuel ratio and heated oxygen sensors (AFS Voltage B1S1 and O2S B1S2) displayed on the Techstream.
HINT

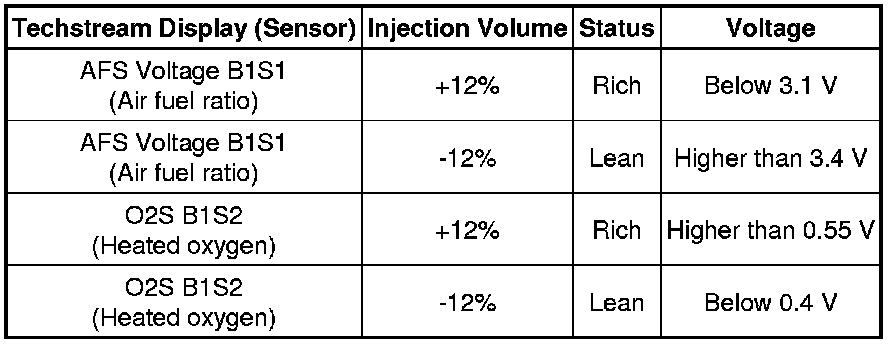

- Change the fuel injection volume within the range of -12% to +12%. The injection volume can be changed in fine gradations.
- Each sensor reacts in accordance with increases and decreases in the fuel injection volume.

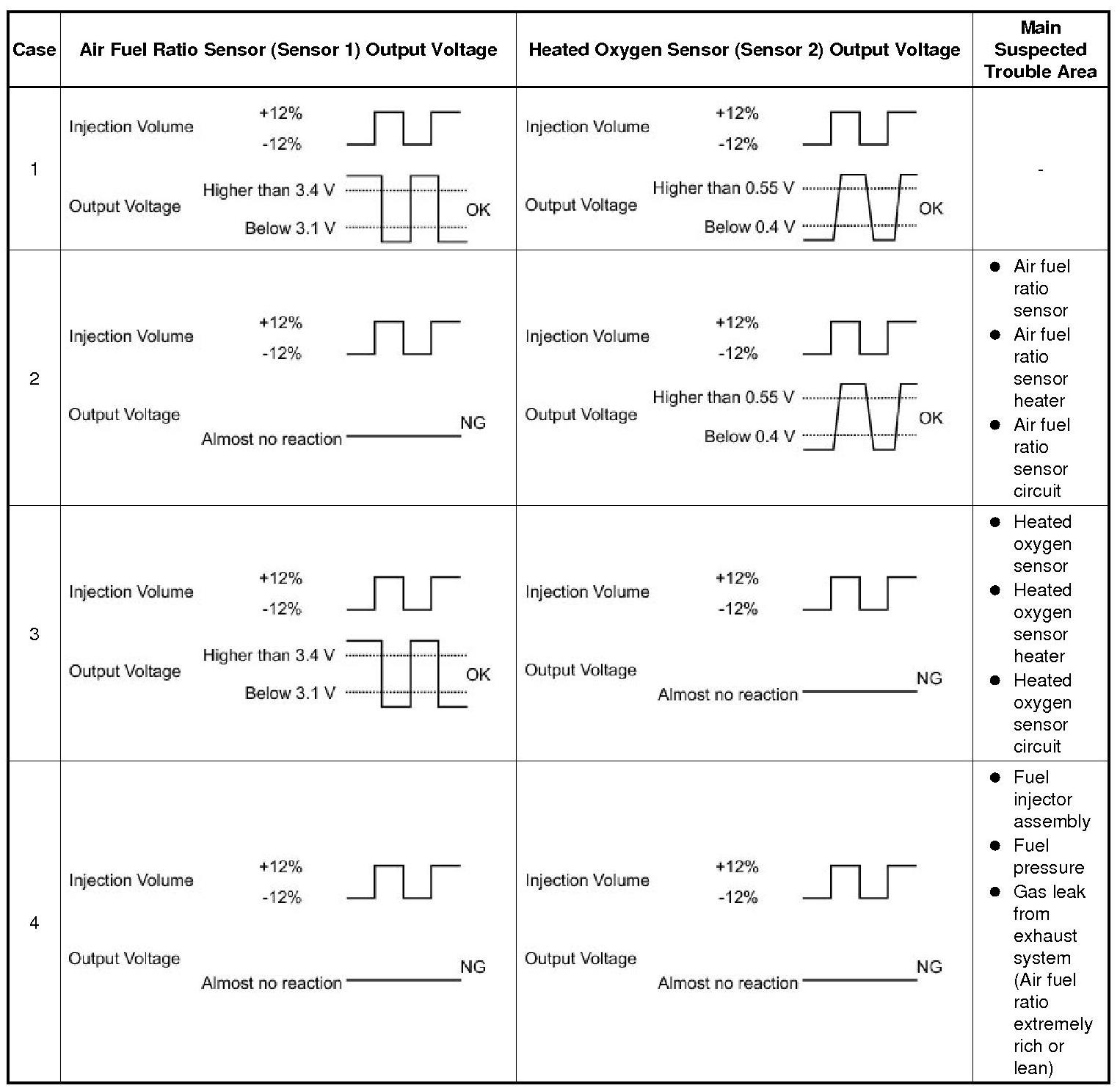

- If the sensor output voltage does not change (almost no reaction) while performing the Active Test, the sensor may be malfunctioning.
NOTICE:
The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.
- Following the Control the Injection Volume procedure enables technicians to check and graph the voltage outputs of both the air fuel ratio and heated oxygen sensors.
- To display the graph, enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume / Gas AF Control / AFS Voltage B1S1 and O2S B1S2; and then press the graph button on the Data List view.
NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.
- Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
- A low air fuel ratio sensor voltage could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.
- A high air fuel ratio sensor voltage could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.
- Sensor 1 refers to the sensor closest to the engine assembly.
- Sensor 2 refers to the sensor farthest away from the engine assembly.
