P410 HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: C2301: Shift Changing Time Malfunction
C2301 - Shift Changing Time Malfunction

DESCRIPTION

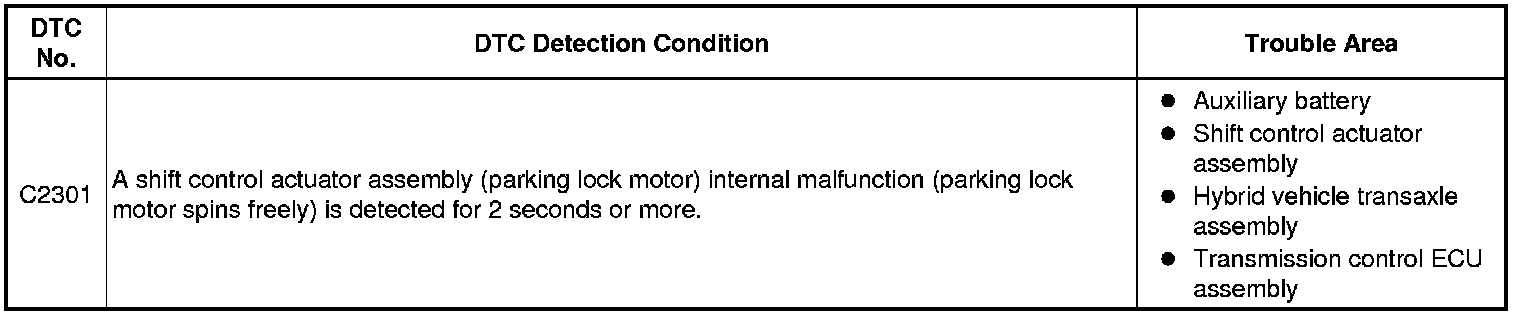

The transmission control ECU assembly receives a P position switch signal from the power management control ECU (HV CPU) and then activates the shift control actuator assembly. At the same time, the transmission control ECU assembly detects the length of time it takes for the parking lock mechanism to switch. The transmission control ECU assembly stores this DTC when this length of time is longer than specified.

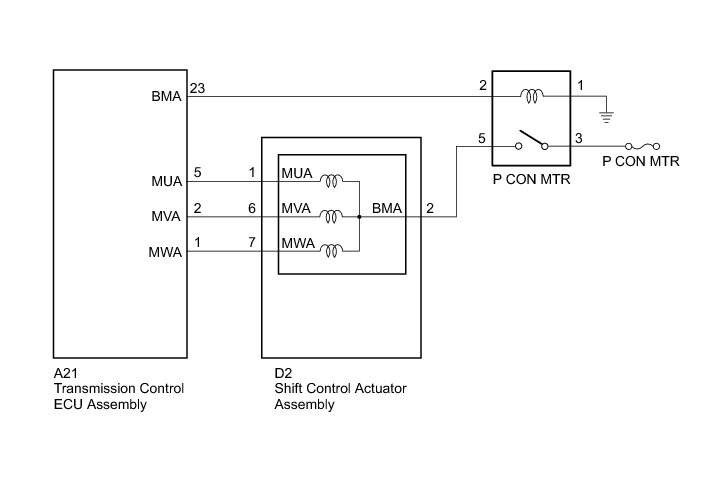

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
- It may not be possible to clear the following DTCs using the Techstream: DTC C2300 (Actuator System Malfunction), C2301 (Shift Changing Time Malfunction), C2303 (Short in Power Source Relay Circuit), C2304 (Open or Short Circuit in U Phase), C2305 (Open or Short Circuit in V Phase), C2306 (Open or Short Circuit in W Phase), C2307 (Power Supply) and C2309 (Open in B+ Circuit). In such cases, disconnect the P CON MAIN fuse and wait for at least 60 seconds to clear the DTCs after the repair.
- After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.

PROCEDURE

1. CHECK FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Chassis / Transmission Control / Trouble Codes.

(d) Read the freeze frame data of C2301.

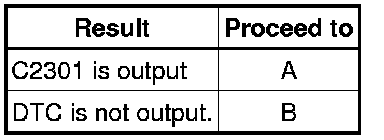

Result:





(e) Turn the power switch off.

B -- REPLACE AUXILIARY BATTERY Components
A -- Continue to next step.

2. CLEAR DTC C2300

NEXT -- Continue to next step.

3. CHARGE AUXILIARY BATTERY

(a) Charge the auxiliary battery.

NEXT -- Continue to next step.

4. CHECK DTC OUTPUT (SIMULATION TEST)

(a) Connect the Techstream to the DLC3.

(b) Release the brake pedal and turn the power switch on (IG).

HINT
Do not turn the power switch on (READY).

(c) Depress the brake pedal and move the shift lever to select neutral (N).

(d) Enter the following menus: Chassis / Transmission Control / Trouble Codes.

(e) Check if DTCs are output.

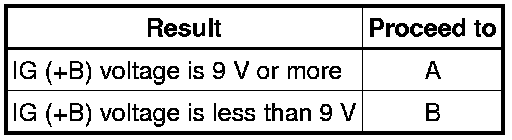

Result:





(f) Turn the power switch off.

B -- END (AUXILIARY BATTERY WAS INSUFFICIENTLY CHARGED)
A -- Continue to next step.

5. CHECK SHIFT CONTROL ACTUATOR ASSEMBLY C2300

NG -- REPLACE SHIFT CONTROL ACTUATOR ASSEMBLY Components
OK -- Continue to next step.

6. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY C2300

NG -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY Components

OK -- REPLACE TRANSMISSION CONTROL ECU ASSEMBLY Components
