P410 HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: C2300: Actuator System Malfunction
C2300 - Actuator System Malfunction

DESCRIPTION

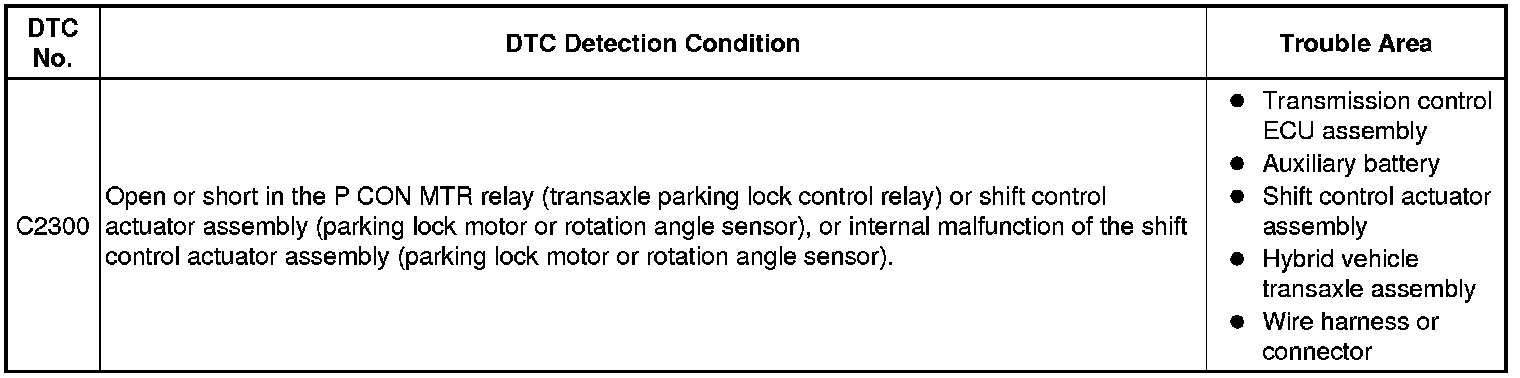

The shift control actuator assembly consists of a parking lock motor and rotation angle sensor. The transmission control ECU assembly receives a P position switch signal from the power management control ECU (HV CPU) and activates the parking lock motor by controlling current, causing the parking lock mechanism to switch. The transmission control ECU assembly also detects the rotor rotation angle through the rotation angle sensor to control timing of current application to the coils. The transmission control ECU assembly stores this DTC when it detects a malfunction in the shift control actuator system.

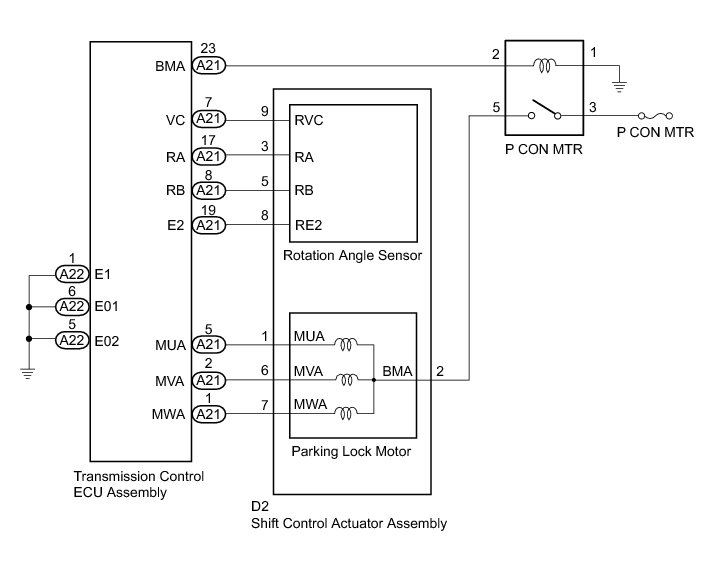

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
- It may not be possible to clear the following DTCs using the Techstream: DTC C2300 (Actuator System Malfunction), C2301 (Shift Changing Time Malfunction), C2303 (Short in Power Source Relay Circuit), C2304 (Open or Short Circuit in U Phase), C2305 (Open or Short Circuit in V Phase), C2306 (Open or Short Circuit in W Phase), C2307 (Power Supply) and C2309 (Open in B+ Circuit). In such cases, disconnect the P CON MAIN fuse and wait for at least 60 seconds to clear the DTCs after the repair.
- After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Service Precautions.

PROCEDURE

1. CHECK FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Chassis / Transmission Control / Trouble Codes.

(d) Read the freeze frame data "Current flag record" of C2300.

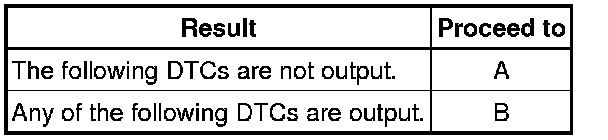

Result:





(e) Turn the power switch off.

B -- REPLACE TRANSMISSION CONTROL ECU ASSEMBLY Components
A -- Continue to next step.

2. CHECK DTC OUTPUT (TRANSMISSION CONTROL)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Chassis / Transmission Control / Trouble Codes.

(d) Check if DTCs are output.

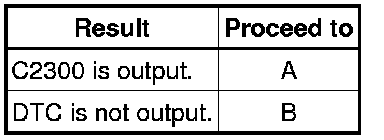

Result:









(e) Turn the power switch off.

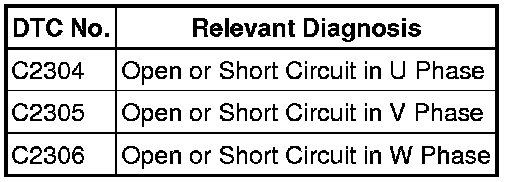

B -- GO TO DTC CHART (ELECTRONIC SHIFT LEVER SYSTEM) C2304
A -- Continue to next step.

3. CHECK FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Chassis / Transmission Control / Trouble Codes.

(d) Read the freeze frame data of C2300.

Result:





(e) Turn the power switch off.

B -- REPLACE AUXILIARY BATTERY Components
A -- Continue to next step.

4. CLEAR DTC

(a) Turn the power switch on (IG).

(b) Enter the following menus: Chassis / Transmission Control / Trouble Codes.

(c) Read and record the DTCs and freeze frame data.

(d) Turn the power switch off.

(e) Disconnect the P CON MAIN fuse and wait for at least 60 seconds.

(f) Check for DTCs again to see if the DTCs are cleared.

NEXT -- Continue to next step.

5. CHARGE AUXILIARY BATTERY

(a) Charge the auxiliary battery.

NEXT -- Continue to next step.

6. CHECK DTC OUTPUT (SIMULATION TEST)

(a) Connect the Techstream to the DLC3.

(b) Release the brake pedal and turn the power switch on (IG).

HINT
Do not turn the power switch on (READY).

(c) Depress the brake pedal and move the shift lever to select neutral (N).

(d) Enter the following menus: Chassis / Transmission Control / Trouble Codes.

(e) Check if DTCs are output.

Result:





(f) Turn the power switch off.

B -- END (AUXILIARY BATTERY WAS INSUFFICIENTLY CHARGED)
A -- Continue to next step.

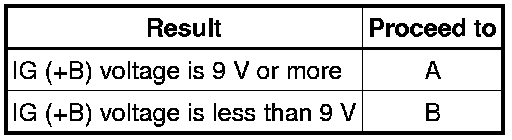

7. CHECK TRANSMISSION CONTROL ECU ASSEMBLY (VC, RA, RB, E2)

(a) Measure the voltage according to the value(s) in the table below.

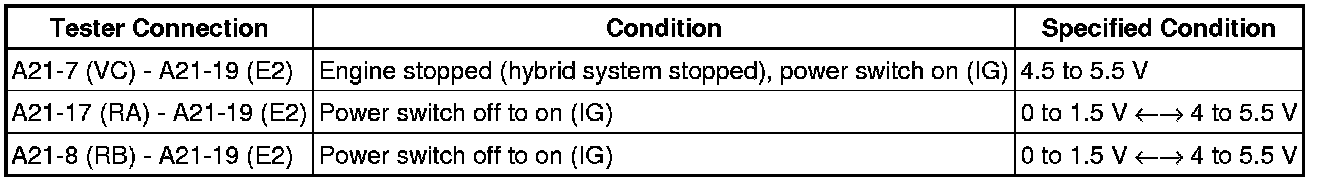

Standard Voltage:





Text in Illustration





(b) Turn the power switch off.

(c) Turn the power switch on (IG).

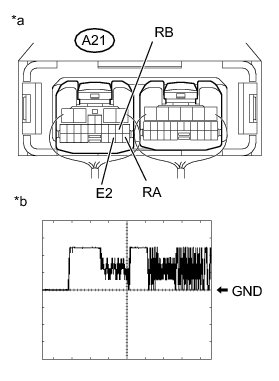

(d) Connect an oscilloscope between the transmission control ECU assembly terminals specified in the table below, and measure the waveform.

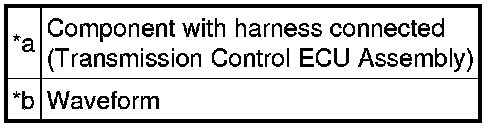

Text in Illustration





OK:

A waveform of 500 ms or less is generated.

HINT
- Perform this inspection with the connector connected.
- When changing from park (P) to neutral (N), or neutral (N) to park (P) with the power switch on (IG), a waveform will be generated for up to 0.5 seconds.
- The waveform shown is for reference only.

(e) Turn the power switch off.

Result:





B -- CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL ECU ASSEMBLY - BODY GROUND)
A -- Continue to next step.

8. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL ECU ASSEMBLY - SHIFT CONTROL ACTUATOR)

(a) Disconnect connector A21 from the transmission control ECU assembly.

(b) Disconnect connector D2 from the shift control actuator assembly.

(c) Measure the resistance according to the value(s) in the table below.

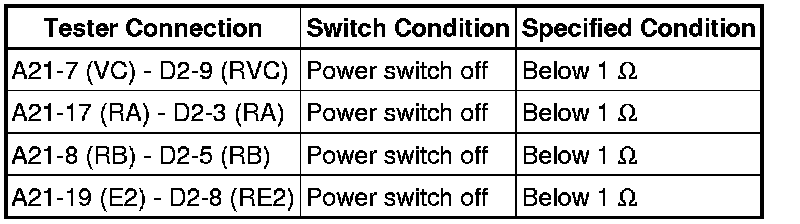

Standard Resistance (Check for Open):

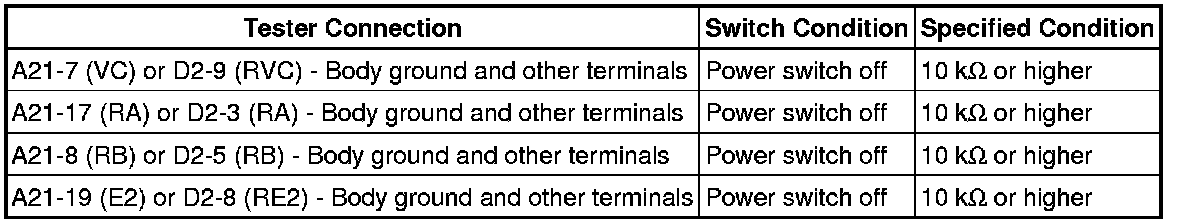

Standard Resistance (Check for Short):

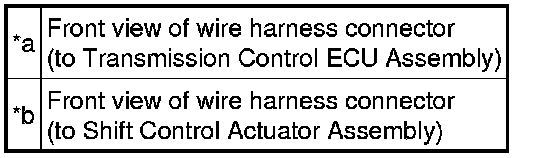

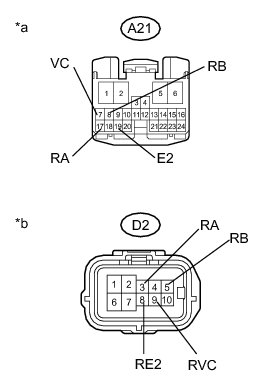

Text in Illustration





(d) Connect the shift control actuator assembly connector.

(e) Connect the transmission control ECU assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

9. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL ECU ASSEMBLY - BODY GROUND)

(a) Disconnect connector A22 from the transmission control ECU assembly.

(b) Measure the resistance according to the value(s) in the table below.

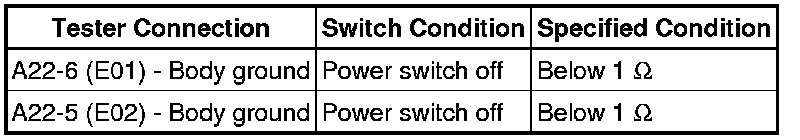

Standard Resistance (Check for Open):





Text in Illustration





(c) Connect the transmission control ECU assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

10. CHECK SHIFT CONTROL ACTUATOR ASSEMBLY

(a) Disconnect the connector from the shift control actuator assembly.

(b) Remove the 3 shift control actuator bolts Components.

(c) Slightly pull the shift control actuator assembly from the hybrid vehicle transaxle.

(d) Using a screwdriver with its tip wrapped with protective tape or a piece of cloth, rotate the shaft.





OK:

The shift control actuator assembly turns smoothly.

NOTICE:
- During this inspection, make sure to use a screwdriver with its tip wrapped with protective tape or a piece of cloth to prevent the splines of the actuator from being damaged.
- The shift control actuator assembly cannot be disassembled.

NG -- REPLACE SHIFT CONTROL ACTUATOR ASSEMBLY Components
OK -- Continue to next step.

11. CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY

(a) Wrap the shaft with a piece of cloth and turn it using pliers.





OK:

The shaft rotates smoothly in the lock and unlock directions.

NOTICE:
- Rotate the shaft using torque between 4.0 to 7.0 N*m (41 to 71 kgf*cm, 36 to 61 in.*lbf).
- During this inspection, make sure to use a piece of cloth to prevent the shaft splines from being damaged.

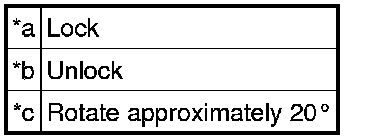

Text in Illustration





(b) Set the shaft in the lock position after the inspection.

NG -- REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY Components

OK -- REPLACE TRANSMISSION CONTROL ECU ASSEMBLY Components
