C1A50

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: C1A50: Brake System
C1A50 - Brake System

DESCRIPTION

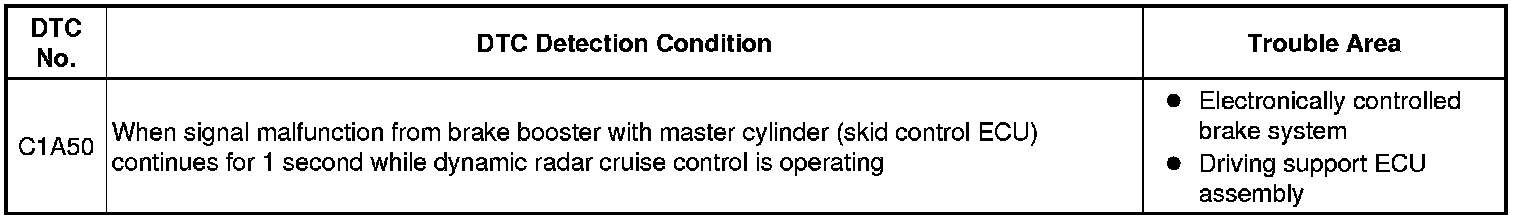

When the driving support ECU assembly receives an electronically controlled brake system malfunction signal from the brake booster with master cylinder (skid control ECU) via the CAN communication line, DTC C1A50 is stored.

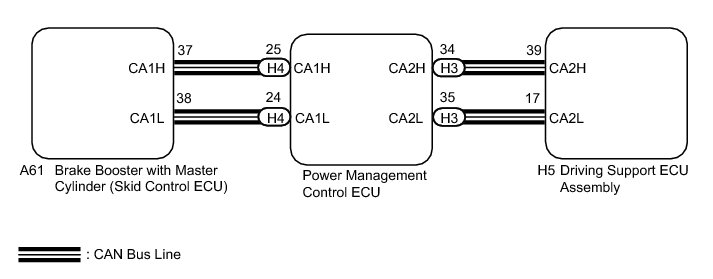

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ OUTPUT DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Chassis / ABS/VSC/TRAC / Trouble Codes.

(e) Read the DTCs.

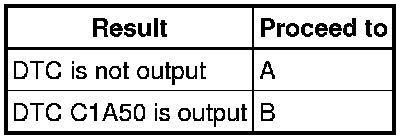

Result:





B -- GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM How To Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK WHETHER DTC OUTPUT RECURS (DTC C1A50)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Clear the DTCs Dynamic Radar Cruise Control System.

(d) Perform the following to make sure that the DTC detection conditions are met.

HINT
If the detection conditions are not met, the malfunction cannot be detected.

(1) Drive the vehicle at a speed of 50 km/h (30 mph) and 170 km/h (105 mph).

(2) Turn the cruise control switch (ON-OFF button) on.

(3) Push the -/SET switch to activate the cruise control.

(e) Enter the following menus: Powertrain / Radar Cruise / Trouble Codes.

(f) Read the DTCs.

Result:





B -- REPLACE DRIVING SUPPORT ECU ASSEMBLY

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

3. REPLACE DRIVING SUPPORT ECU ASSEMBLY

(a) Replace the driving support ECU assembly Removal.

NEXT -- Continue to next step.

4. CHECK WHETHER DTC OUTPUT RECURS (DTC C1A50)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Clear the DTCs Dynamic Radar Cruise Control System.

(d) Perform the following to make sure that the DTC detection conditions are met.

HINT
If the detection conditions are not met, the malfunction cannot be detected.

(1) Drive the vehicle at a speed of 50 km/h (30 mph) and 170 km/h (105 mph).

(2) Turn the cruise control switch (ON-OFF button) on.

(3) Push the -/SET switch to activate the cruise control.

(e) Enter the following menus: Powertrain / Radar Cruise / Trouble Codes.

(f) Read the DTCs.

Result:





B -- REPLACE BRAKE BOOSTER WITH MASTER CYLINDER

A -- END

5. REPLACE BRAKE BOOSTER WITH MASTER CYLINDER

(a) Replace the brake booster with master cylinder (skid control ECU) Removal.

NEXT -- Continue to next step.

6. CHECK WHETHER DTC OUTPUT RECURS

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Clear the DTCs Dynamic Radar Cruise Control System.

(d) Perform the following to make sure that the DTC detection conditions are met.

HINT
If the detection conditions are not met, the malfunction cannot be detected.

(1) Drive the vehicle at a speed of 50 km/h (30 mph) and 170 km/h (105 mph).

(2) Turn the cruise control switch (ON-OFF button) on.

(3) Push the -/SET switch to activate the cruise control.

(e) Enter the following menus: Powertrain / Radar Cruise / Trouble Codes.

(f) Read the DTCs.

Result:





B -- REPLACE POWER MANAGEMENT CONTROL ECU Removal

A -- END
