C1525

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: C1515, C1525: Torque Sensor Zero Point Adjustment Undone

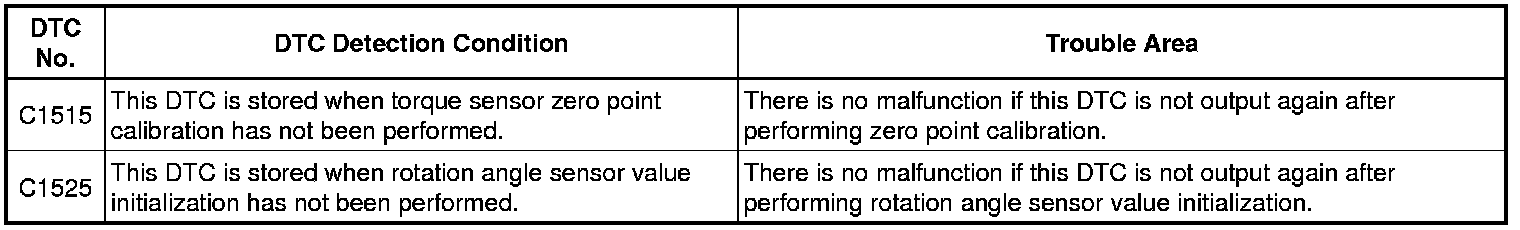

DESCRIPTION

These DTCs do not indicate a malfunction. The power steering ECU assembly stores these DTCs when it determines that rotation angle sensor value initialization and torque sensor zero point calibration have not been performed.





INSPECTION PROCEDURE

NOTICE:
If the steering column assembly or power steering ECU assembly has been replaced, perform rotation angle sensor value initialization and torque sensor zero point calibration Programming and Relearning.

PROCEDURE

1. CHECK FOR DTC

(a) Initialize the rotation angle sensor value and calibrate the torque sensor zero point (step 1) Programming and Relearning.

(b) Check for DTCs (step 2) Reading and Clearing Diagnostic Trouble Codes.

HINT
If DTCs are output, perform steps 1 and 2 two more times.

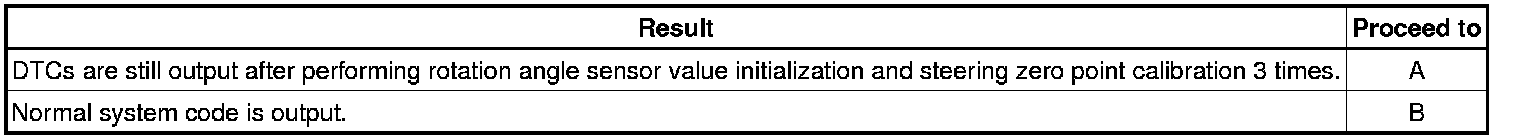

Result:





B -- END
A -- Continue to next step.

2. REPLACE POWER STEERING ECU ASSEMBLY

(a) Replace the power steering ECU assembly Removal.

NEXT -- Continue to next step.

3. CHECK FOR DTC

(a) Initialize the rotation angle sensor value and calibrate the torque sensor zero point (step 1) Programming and Relearning.

(b) Check for DTCs (step 2) Reading and Clearing Diagnostic Trouble Codes.

HINT
If DTCs are output, perform steps 1 and 2 two more times.

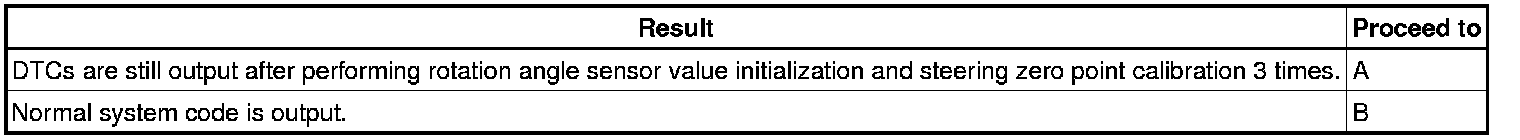

Result:





NOTICE:
If replacing the steering column assembly, clear the rotation angle sensor calibration value, initialize the rotation angle sensor value, and calibrate the torque sensor zero point Programming and Relearning.

B -- END

A -- REPLACE STEERING COLUMN ASSEMBLY Removal
