B2452

LIGHTING (EXT): LIGHTING SYSTEM: B2452: Height Control Sensor Data Out of Range When Initializing
B2452 - Height Control Sensor Data Out of Range When Initializing

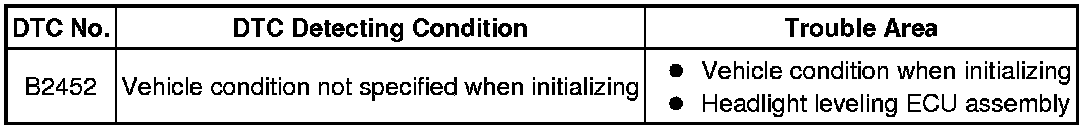

DESCRIPTION

The headlight leveling ECU assembly stores this DTC if the sensor value received from the height control sensor is out of range when performing initialization of the headlight leveling ECU assembly; for example, the vehicle is not level or being jacked up.





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM INITIALIZATION

(a) Perform initialization of the headlight leveling ECU assembly Initialization.

HINT
* Before initializing, make sure that the vehicle condition is proper for initialization.
* Be sure to perform the initialization as instructed.

NEXT -- Continue to next step.

2. RECHECK FOR DTC

(a) Using the Techstream, recheck for DTCs.

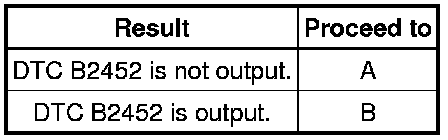

Result:





HINT
If the headlight leveling ECU assembly stores DTC B2452 even though the ECU has been initialized as instructed, there may be a malfunction in the headlight leveling ECU assembly.

B -- REPLACE HEADLIGHT LEVELING ECU ASSEMBLY Removal

A -- END
