B2450

LIGHTING (EXT): LIGHTING SYSTEM: B2450: Initialization has not been Performed
B2450 - Initialization has not been Performed

DESCRIPTION

The headlight leveling ECU assembly stores this DTC if initialization has not been performed after the ECU was replaced.





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM INITIALIZATION

(a) Perform initialization of the headlight leveling ECU assembly Initialization.

NEXT -- Continue to next step.

2. RECHECK FOR DTC

(a) Using the Techstream, recheck for DTCs.

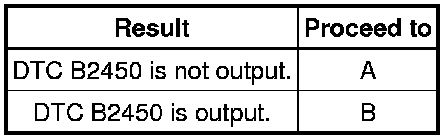

Result:





HINT
If the headlight leveling ECU assembly stores DTC B2450 even though the ECU has been initialized, there may be a malfunction in the headlight leveling ECU assembly.

B -- REPLACE HEADLIGHT LEVELING ECU ASSEMBLY Removal

A -- END
