B1471

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1471/71: A/C Inverter High Voltage Power Resource System Malfunction
B1471/71 - A/C Inverter High Voltage Power Resource System Malfunction

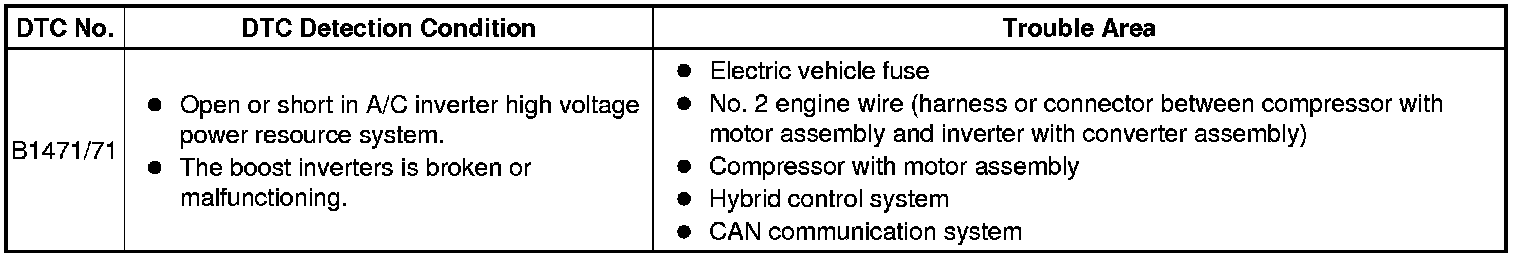

DESCRIPTION

The A/C inverter assembly monitors the voltage of the battery. It stops compressor control and stores the DTC when the monitored voltage is outside the specified range.

The output DTC is memorized as previous trouble. Compressor control may not resume unless the power switch is turned off.

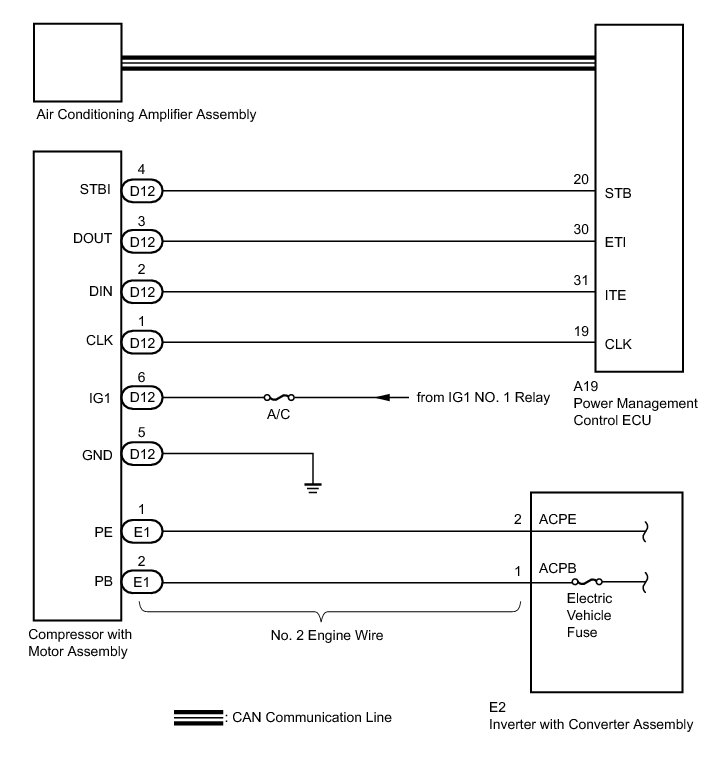

WIRING DIAGRAM





INSPECTION PROCEDURE

CAUTION:
* Wear electrically insulated gloves and pull out the service plug grip before inspection as procedures may require disconnecting high-voltage connectors. Be sure to carry the removed service plug grip because other workers may install it by mistake.
* Do not touch the high-voltage connectors or terminals for 10 minutes after the service plug grip is removed.
NOTICE:
* After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work Service Precautions.
* The hybrid control system and air conditioning system output DTCs separately. Inspect DTCs following the flow chart for the hybrid control system first if any DTCs from those systems are output simultaneously.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

(a) Using the Techstream to check if the CAN communication system is functioning normally.

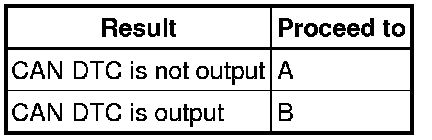

Result:





B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK DIAGNOSTIC TROUBLE CODE (HYBRID CONTROL SYSTEM)

(a) Check if DTCs for the hybrid control system are output using the Techstream.

OK:

Hybrid control system DTCs are not output.

NG -- GO TO HYBRID CONTROL SYSTEM How to Proceed With Troubleshooting
OK -- Continue to next step.

3. INSPECT ELECTRIC VEHICLE FUSE

CAUTION:
Be sure to wear insulated gloves.

(a) Turn the power switch off.

(b) Remove the service plug grip.

CAUTION:
Do not touch the high-voltage connectors or terminals for 10 minutes after the service plug grip is removed.

NOTICE:
After removing the service plug grip, turning the power switch on (READY) may cause a malfunction. Do not turn the power switch on (READY) with the service plug grip removed.

(c) Remove the inverter terminal cover.

NOTICE:
Be sure to prevent foreign objects or water from entering the inverter with converter assembly.

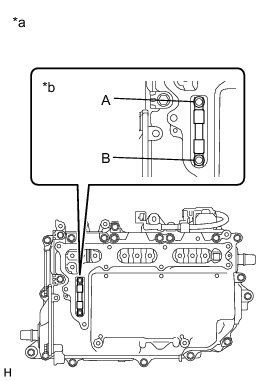

(d) Check that bolts A and B are tightened securely.

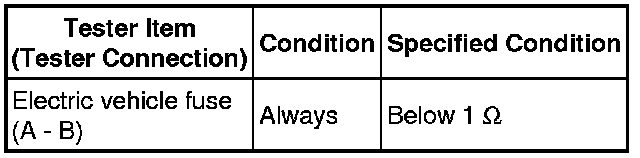

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE ELECTRIC VEHICLE FUSE
OK -- Continue to next step.

4. INSPECT NO. 2 ENGINE WIRE

CAUTION:
Be sure to wear insulated gloves.

(a) Disconnect the No. 2 engine wire connector.

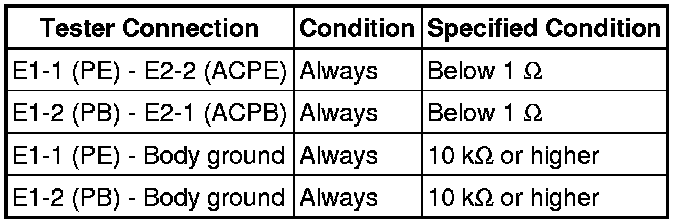

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE NO. 2 ENGINE WIRE Removal

OK -- REPLACE COMPRESSOR WITH MOTOR ASSEMBLY Removal
