Removal

1UR-FSE COOLING: COOLING FAN MOTOR (for 2WD): REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

4. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY Removal

5. REMOVE NO. 1 AIR CLEANER INLET Removal

6. REMOVE ENGINE ROOM SIDE COVER RH Removal

7. REMOVE ENGINE ROOM SIDE COVER LH Removal

8. REMOVE NO. 1 ENGINE UNDER COVER Service and Repair

9. DRAIN ENGINE COOLANT Service and Repair

10. DISCONNECT NO. 1 RADIATOR HOSE

11. DISCONNECT NO. 2 RADIATOR HOSE

12. REMOVE ECM OUTLET DUCT Removal

13. REMOVE RADIATOR RESERVOIR ASSEMBLY Removal

14. REMOVE FAN SHROUD WITH FAN AND MOTOR

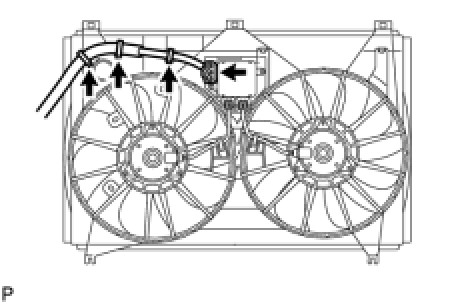

Disconnect the cooling fan ECU connector.

(a) Using a clip remover, detach the 3 clamps.





Detach the 3 claws, and then remove the fan shroud with fan and motor.
