Home >> Lexus >> 2011 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Flex Plate >> Specifications

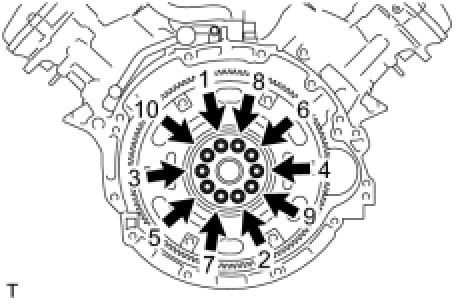

Flex Plate: Specifications






Flex Plate





Step 1 30 Nm (301 kgf-cm, 22 ft-lbf)
Step 2 90°
