Removal

AA80F AUTOMATIC TRANSMISSION: PARK / NEUTRAL POSITION SWITCH: REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
* After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

3. REMOVE FRONT EXHAUST PIPE ASSEMBLY

(a) Remove the front exhaust pipe Removal.

4. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR Removal

5. DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

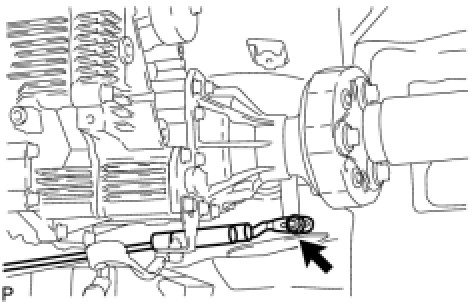

(a) Remove the nut and disconnect the floor shift gear shifting rod.

6. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY





(a) Disconnect the switch connector.

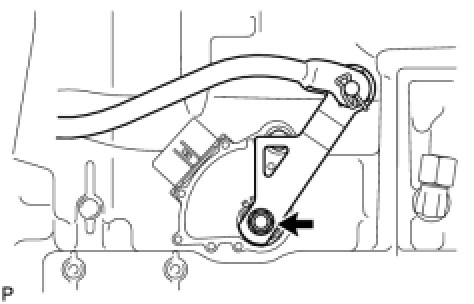

(b) Remove the nut, spring washer and transmission control shaft lever.

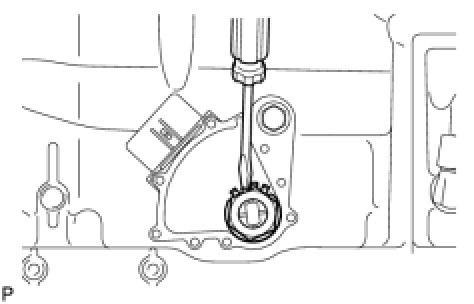

(c) Using a screwdriver, bend the tabs of the lock washer.

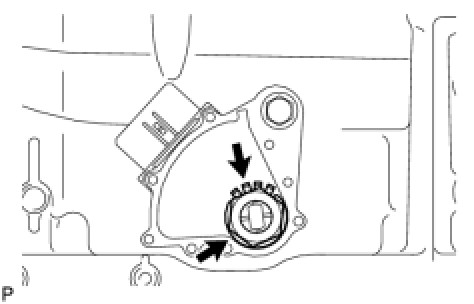

(d) Remove the lock nut and lock washer.

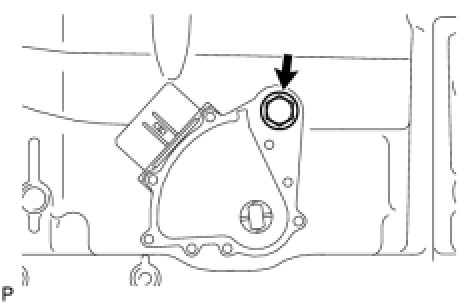

(e) Remove the bolt and switch.
