SRS Seat Cushion Airbag Assembly

SUPPLEMENTAL RESTRAINT SYSTEM: SRS SEAT CUSHION AIRBAG ASSEMBLY: ON-VEHICLE INSPECTION

1. CHECK SRS SEAT CUSHION AIRBAG ASSEMBLY (VEHICLE NOT INVOLVED IN COLLISION)

(a) Perform a diagnostic system check Diagnosis System.

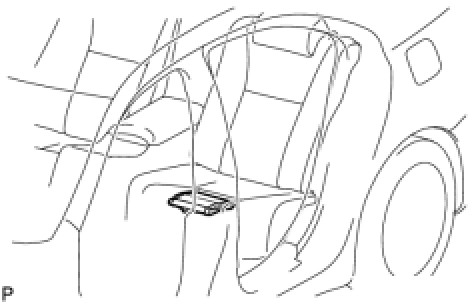

(b) With the SRS seat cushion airbag installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the rear seat cushion with a new one:

Cuts, minute cracks or marked discoloration on the front seatback around the SRS seat cushion airbag.

2. CHECK SRS SEAT CUSHION AIRBAG ASSEMBLY (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT DEPLOYED)

(a) Perform a diagnostic system check Diagnosis System.

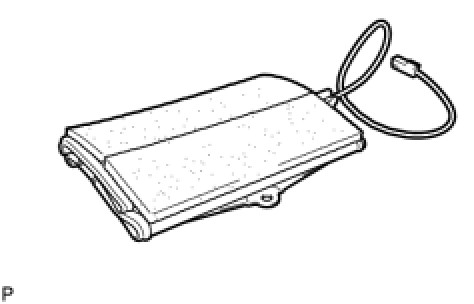

(b) With the SRS seat cushion airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the SRS seat cushion airbag with a new one:

Cuts, minute cracks or marked discoloration on the SRS seat cushion airbag.

Cracks or other damage to the wire harness or connector.

NOTICE:
For removal and installation procedures of the SRS seat cushion airbag, be sure to follow the correct procedure.
